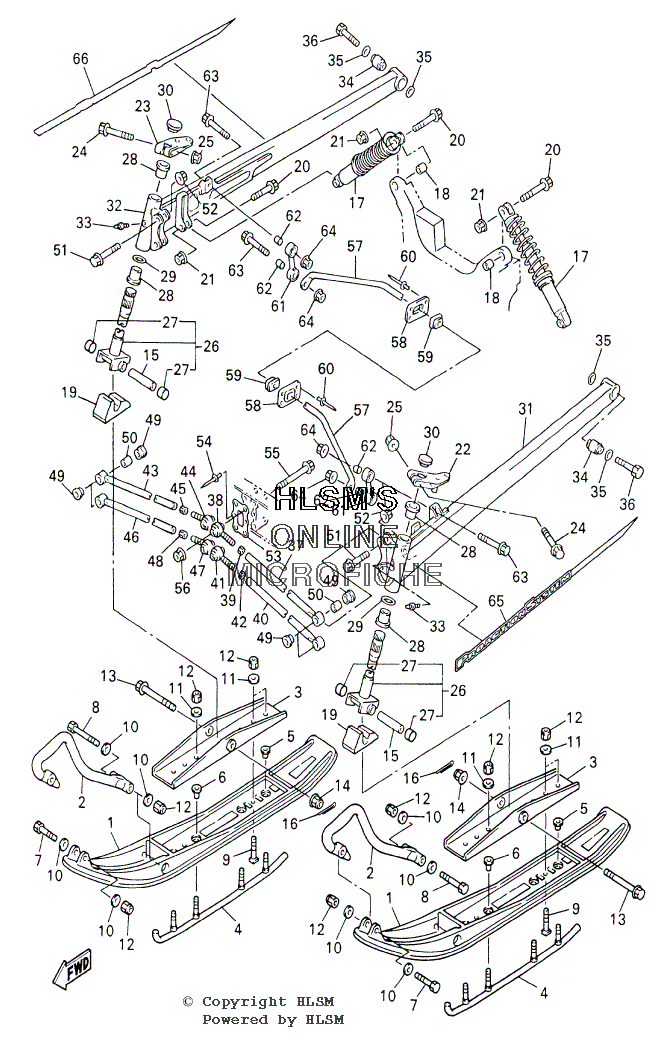

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VENTURE 600 - 2001 года выпуска
-
№АртикулНазвание
-
18DM-23711-00-00 SKI 1SKI 1
-
28DM-23712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38DM-23766-00-00 SADDLE 1SADDLE 1
-
48DM-23731-00-00 RUNNER 1RUNNER 1
-
58DM-23751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68DM-23751-10-00 BUSH, SKI 1BUSH, SKI 1
-
797027-08055-00 BOLTBOLT
-
897027-08100-00 BOLTBOLT
-
990108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
1090201-08784-00 WASHER, PLATEWASHER, PLATE
-
1190201-086P8-00 WASHER, PLATEWASHER, PLATE
-
1295707-08300-00 NUT, FLANGENUT, FLANGE
-
1390105-10712-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590387-1012H-00 COLLARCOLLAR
-
1691401-20020-00 PIN, COTTERPIN, COTTER
-
178DM-2376A-10-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
188CR-2376B-00-00 BUSHBUSH
-
198CR-23743-10-00 STOPPER 1STOPPER 1
-
2090105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
228CR-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
238CR-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2495817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
2595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
268DM-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2790384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2890381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2990201-301G3-00 WASHER, PLATEWASHER, PLATE
-
308CR-23741-10-00 CAP 1CAP 1
-
318DM-2382E-20-00 ARM, FRONT 1ARM, FRONT 1
-
328DM-2382F-20-00 ARM, FRONT 2ARM, FRONT 2
-
3393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
348CR-2516A-00-00 DAMPERDAMPER
-
3590201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3690101-12780-00 BOLTBOLT
-
378CR-2384E-A0-P0 ARM, CONTROL 1 (LYNM9) (METALLIC CHAMPAGNE)ARM, CONTROL 1 (LYNM9) (METALLIC CHAMPAGNE)
-
388CR-23823-01-00 JOINT 2JOINT 2
-
3995317-12600-00 NUTNUT
-
408CR-2384F-A0-P0 ARM, CONTROL 2 (LYNM9) (METALLIC CHAMPAGNE)ARM, CONTROL 2 (LYNM9) (METALLIC CHAMPAGNE)
-
418CR-23832-00-00 JOINT 3JOINT 3
-
4295314-14600-00 NUTNUT
-
438CR-2384E-A0-P0 ARM, CONTROL 1 (LYNM9) (METALLIC CHAMPAGNE)ARM, CONTROL 1 (LYNM9) (METALLIC CHAMPAGNE)
-
448CR-23823-01-00 JOINT 2JOINT 2
-
4595317-12600-00 NUTNUT
-
468CR-2384F-A0-P0 ARM, CONTROL 2 1 (LYNM9) (METALLIC CHAMPAGNE)ARM, CONTROL 2 1 (LYNM9) (METALLIC CHAMPAGNE)
-
478CR-23832-00-00 JOINT 3JOINT 3
-
4895314-14600-00 NUTNUT
-
4990381-17110-00 BUSH, SOLIDBUSH, SOLID
-
5090387-1009K-00 COLLARCOLLAR
-
5190105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538DF-23779-00-00 WASHERWASHER
-
5490267-48057-00 RIVET, BLINDRIVET, BLIND
-
5590105-121A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5695607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
578CW-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
588CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
598CW-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6090267-47186-00 RIVET, BLINDRIVET, BLIND
-
618CR-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6290387-087L3-00 COLLARCOLLAR
-
6390105-08345-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
658DS-77371-10-00 EMBLEM 5EMBLEM 5
-
668DS-77372-10-00 EMBLEM 6EMBLEM 6
