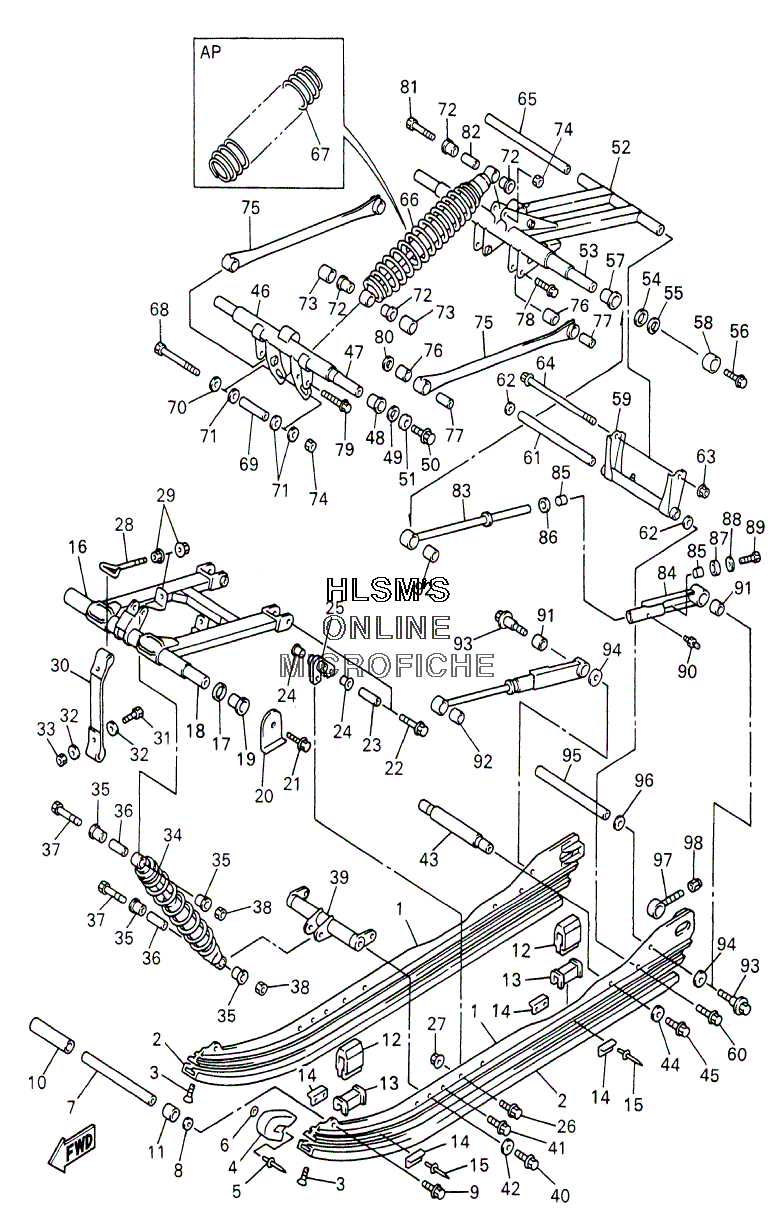

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha MOUNTAIN MAX 600 - 2002 года выпуска
-
№АртикулНазвание
-
18ED-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28ED-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
390151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
48ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
590267-48194-00 RIVET, BLINDRIVET, BLIND
-
690201-047R8-00 WASHER, PLATEWASHER, PLATE
-
782M-47485-02-00 SHAFT 3SHAFT 3
-
890201-10126-00 WASHER, PLATEWASHER, PLATE
-
990105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-20002-00 COLLARCOLLAR
-
1190387-20003-00 COLLARCOLLAR
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168ED-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
1790201-210U0-00 WASHER, PLATEWASHER, PLATE
-
188CR-47465-00-00 SHAFT 1SHAFT 1
-
1990381-19111-00 BUSH, SOLIDBUSH, SOLID
-
208ED-47426-00-00 BRACKET, REAR 1BRACKET, REAR 1
-
2190105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
2290105-10769-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-1009T-00 COLLARCOLLAR
-
2490381-15112-00 BUSH, SOLIDBUSH, SOLID
-
258ED-47415-00-00 BRACKET 1BRACKET 1
-
2695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
288CR-47448-00-00 HOOK 3HOOK 3
-
2995707-08500-00 NUT, FLANGENUT, FLANGE
-
308ED-47495-00-00 STOPPER 1STOPPER 1
-
3197007-06025-00 BOLTBOLT
-
3290201-06747-00 WASHER, PLATEWASHER, PLATE
-
3395707-06300-00 NUT, FLANGENUT, FLANGE
-
348ED-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
3590387-145G7-00 COLLARCOLLAR
-
3690387-105G5-00 COLLARCOLLAR
-
3790101-10738-00 BOLTBOLT
-
3895607-10100-00 NUT, UNUT, U
-
398ED-47418-00-00 BRACKET 4BRACKET 4
-
4090105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
4195817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
4290201-105A2-00 WASHER, PLATEWASHER, PLATE
-
438CR-47486-00-00 SHAFT 4SHAFT 4
-
4490201-100L3-00 WASHER, PLATEWASHER, PLATE
-
4590105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
468CR-47416-10-00 BRACKET 2BRACKET 2
-
478CR-47488-00-00 SHAFT 6SHAFT 6
-
4890381-22099-00 BUSH, SOLIDBUSH, SOLID
-
4990201-207J5-00 WASHER, PLATEWASHER, PLATE
-
5090105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
5190201-106F2-00 WASHER, PLATEWASHER, PLATE
-
528CR-47332-10-00 ARM, PIVOT 2ARM, PIVOT 2
-
538CY-47475-01-00 SHAFT 2SHAFT 2
-
5490201-251G8-00 WASHER, PLATEWASHER, PLATE
-
5590201-250T6-00 WASHER, PLATEWASHER, PLATE
-
5690105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
5790381-28108-00 BUSH, SOLIDBUSH, SOLID
-
5890387-2510A-00 COLLARCOLLAR
-
598ED-47417-01-00 BRACKET 3BRACKET 3
-
6090105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
6182M-47485-02-00 SHAFT 3SHAFT 3
-
6290201-10136-00 WASHER, PLATEWASHER, PLATE
-
6395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6495827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
6590387-083G6-00 COLLARCOLLAR
-
668ED-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
678CS-47489-00-00 SPRING 1 (K=3.0-5.0) (OPT)SPRING 1 (K=3.0-5.0) (OPT)
-
678CW-47489-00-00 SPRING 1 (K=3.5-5.3) (OPT)SPRING 1 (K=3.5-5.3) (OPT)
-
688AC-4631K-00-00 BOLT, ADJBOLT, ADJ
-
6990387-1009S-00 COLLARCOLLAR
-
7090201-103U4-00 WASHER, PLATEWASHER, PLATE
-
7190201-100U1-00 WASHER, PLATEWASHER, PLATE
-
7290381-14101-00 BUSH, SOLIDBUSH, SOLID
-
7390387-1404R-00 COLLARCOLLAR
-
7495607-10100-00 NUT, UNUT, U
-
758CR-47494-01-00 ROD, RELAYROD, RELAY
-
7690381-14109-00 BUSH, SOLIDBUSH, SOLID
-
7790387-100X3-00 COLLARCOLLAR
-
7890105-10739-00 BOLT, FLANGEBOLT, FLANGE
-
7990105-10436-00 BOLT, FLANGEBOLT, FLANGE
-
8090201-100U1-00 WASHER, PLATEWASHER, PLATE
-
8190101-10738-00 BOLTBOLT
-
8290387-105G5-00 COLLARCOLLAR
-
838ED-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
848CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
8590384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
8690202-16229-00 WASHER, PLATEWASHER, PLATE
-
8790202-16231-00 WASHER, PLATEWASHER, PLATE
-
8890201-106F2-00 WASHER, PLATEWASHER, PLATE
-
8997027-10025-00 BOLTBOLT
-
9093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
9190380-22232-00 BUSH, SOLIDBUSH, SOLID
-
9290380-28235-00 BUSH, SOLIDBUSH, SOLID
-
938DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
9490201-100S2-00 WASHER, PLATEWASHER, PLATE
-
9582M-47485-02-00 SHAFT 3SHAFT 3
-
9690201-10136-00 WASHER, PLATEWASHER, PLATE
-
978K2-47479-01-00 COLLAR 3COLLAR 3
-
9895707-10300-00 NUT, FLANGENUT, FLANGE
