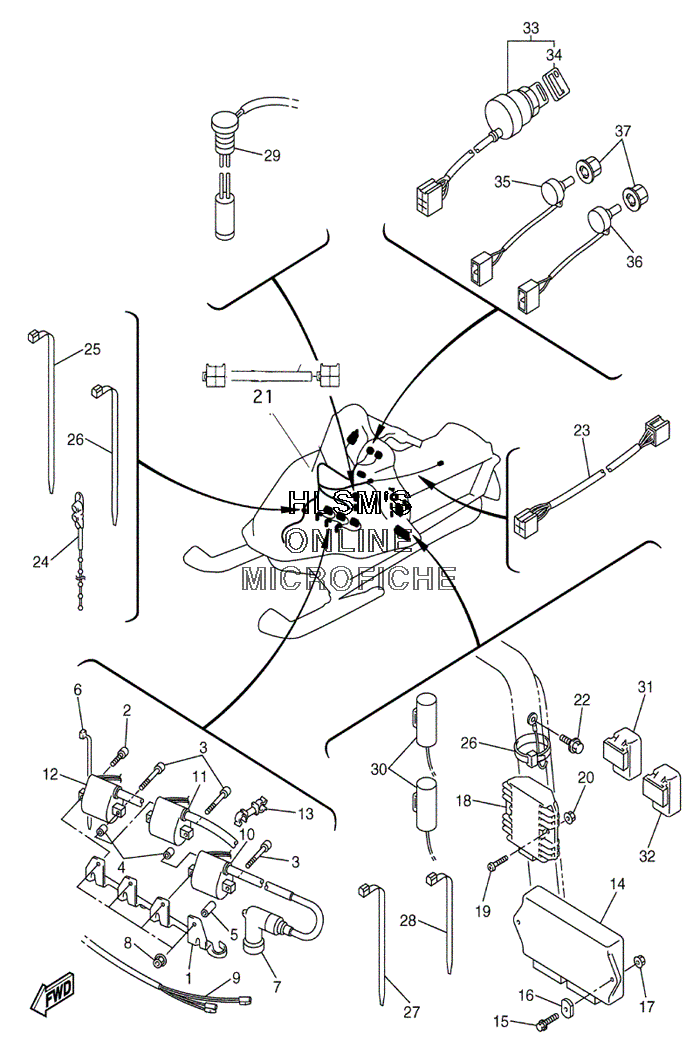

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha MOUNTAIN MAX 700 - 2002 года выпуска
-
№АртикулНазвание
-
18DM-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
291317-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
391317-06040-00 BOLTBOLT
-
490387-0714B-00 COLLARCOLLAR
-
590387-07393-00 COLLARCOLLAR
-
690464-15195-00 CLAMPCLAMP
-
78DF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
895607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
98DM-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
108DM-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
118DF-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
128DM-82310-30-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1390464-10002-00 CLAMPCLAMP
-
148DM-85540-10-00 C.D.I. UNIT ASSY (MM700G)C.D.I. UNIT ASSY (MM700G)
-
148EA-85540-00-00 C.D.I. UNIT ASSY (MM600G)C.D.I. UNIT ASSY (MM600G)
-
1595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1690179-06264-00 NUTNUT
-
1795707-06500-00 NUT, FLANGENUT, FLANGE
-
184JH-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1998507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
218ED-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
2295807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
238DM-8471G-00-00 WIRE, LEADWIRE, LEAD
-
2490464-20031-00 CLAMPCLAMP
-
2590464-12045-00 CLAMPCLAMP
-
2690464-15195-00 CLAMPCLAMP
-
2790464-13073-00 CLAMPCLAMP
-
2890464-13077-00 CLAMPCLAMP
-
298CR-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
303TC-81965-00-00 CONDENSER, SMOOTHINGCONDENSER, SMOOTHING
-
315DM-81950-00-00 RELAY, HEADLIGHTRELAY, HEADLIGHT
-
328DM-81950-00-00 RELAY, MAIN (LOAD)RELAY, MAIN (LOAD)
-
338DM-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
34526-82579-00-00 ...CAP, KEY...CAP, KEY
-
358DM-87283-00-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
368DM-87283-10-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
378DM-87284-00-00 KNOB, VARIABLE RESISTORKNOB, VARIABLE RESISTOR
