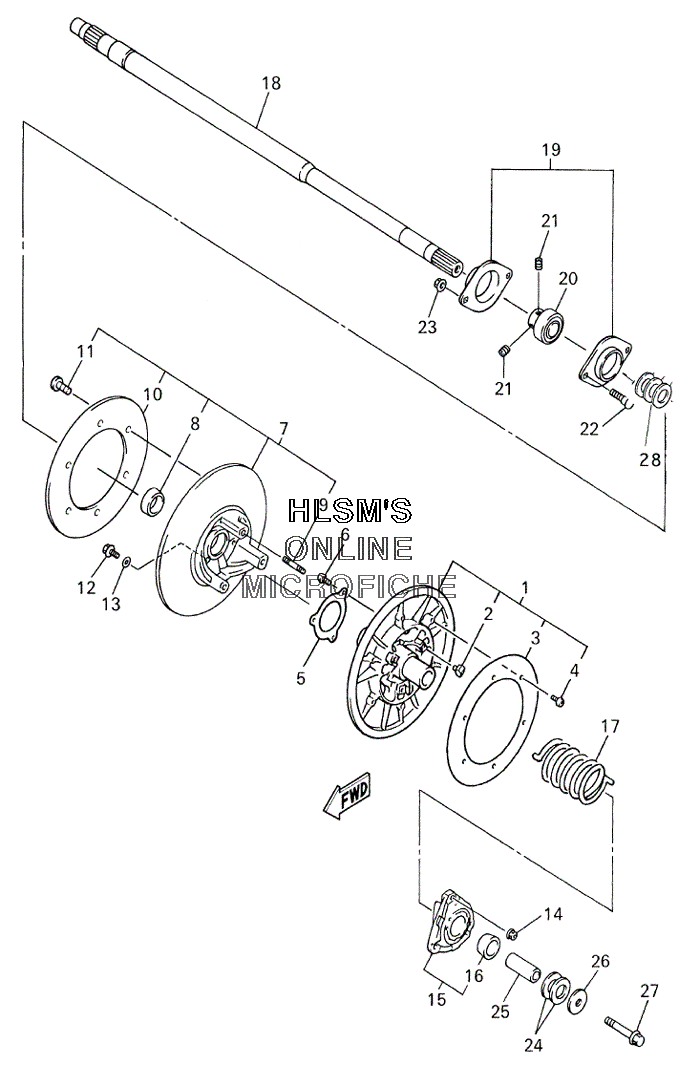

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha SX 600 - 2002 года выпуска
-
№АртикулНазвание
-
18CR-17660-10-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
28AV-17688-10-00 SHOE, RAMPSHOE, RAMP
-
38CM-17665-00-00 PLATE 1PLATE 1
-
490150-05040-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
58BV-17656-00-00 STOPPER, HOLDERSTOPPER, HOLDER
-
690154-06062-00 SCREW, BINDINGSCREW, BINDING
-
78BU-17670-10-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
890384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
995617-08630-00 ...BOLT, STUD...BOLT, STUD
-
108CM-17675-00-00 ...PLATE 2...PLATE 2
-
1190150-05040-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
1290105-06734-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-06037-00 WASHER, PLATE (T=1.0) (OPT)WASHER, PLATE (T=1.0) (OPT)
-
1390201-061H1-00 WASHER, PLATE (T=0.5) (OPT)WASHER, PLATE (T=0.5) (OPT)
-
1490179-08655-00 NUTNUT
-
158BV-17604-71-00 SEAT SPRING SETSEAT SPRING SET
-
1690384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1790508-536A9-00 SPRING, TORSIONSPRING, TORSION
-
188CR-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
198CR-47631-01-00 HOUSING, BEARINGHOUSING, BEARING
-
2093399-99943-00 BEARINGBEARING
-
2190113-06064-00 BOLT, SETBOLT, SET
-
2290109-083G2-00 BOLTBOLT
-
2395707-08500-00 NUT, FLANGENUT, FLANGE
-
2490201-222F0-00 WASHER, PLATE (T=0.5) (OPT)WASHER, PLATE (T=0.5) (OPT)
-
2490201-225A4-00 WASHER, PLATE (T=1.0) (OPT)WASHER, PLATE (T=1.0) (OPT)
-
2590387-1407L-00 COLLARCOLLAR
-
2690201-141A3-00 WASHER, PLATEWASHER, PLATE
-
2790105-14766-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-252F1-00 WASHER, PLATE (TO.5) (OPT)WASHER, PLATE (TO.5) (OPT)
-
2890201-25526-00 WASHER, PLATE (T2.0) (OPT)WASHER, PLATE (T2.0) (OPT)
-
2890201-25527-00 WASHER, PLATE (T1.0) (OPT)WASHER, PLATE (T1.0) (OPT)
