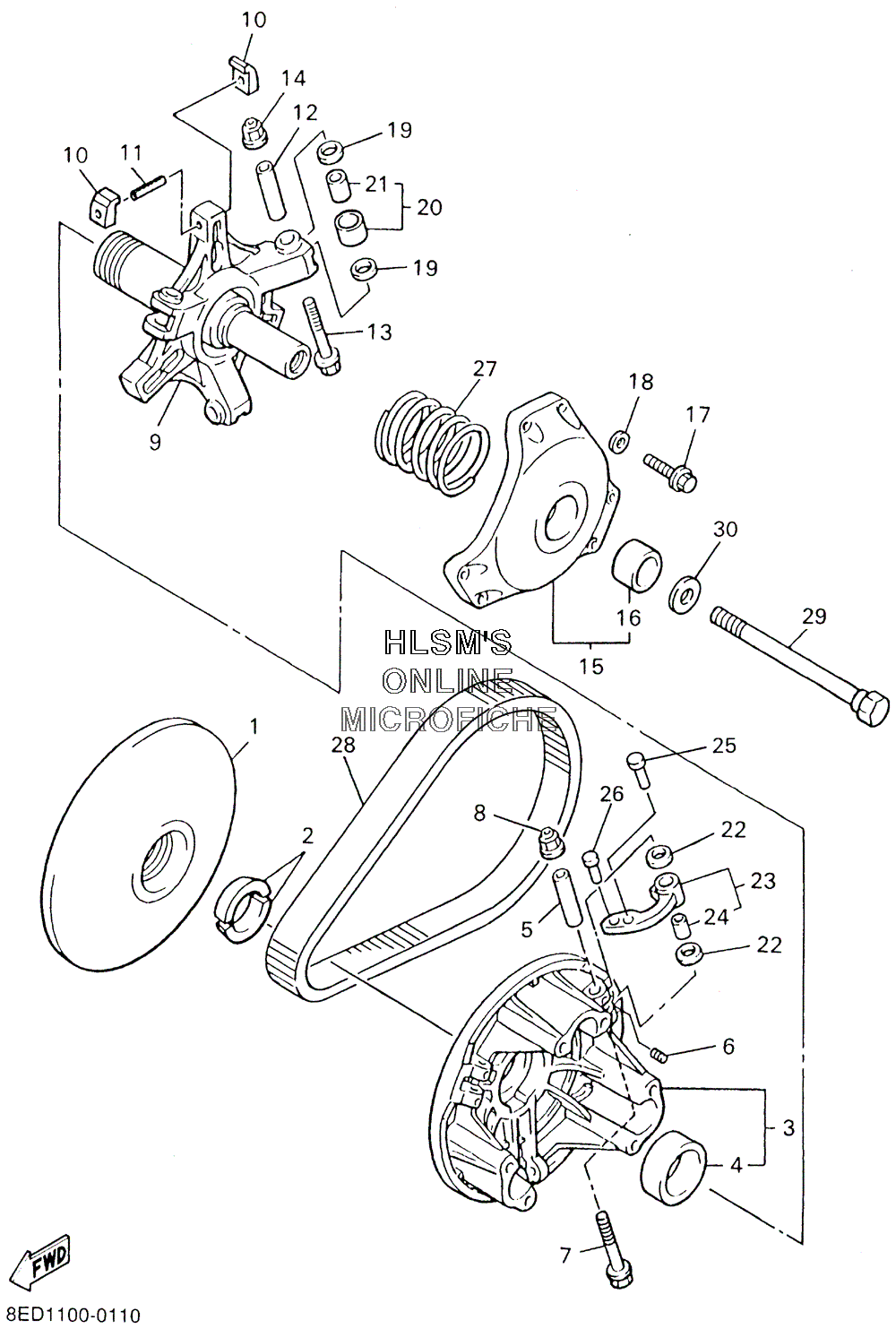

CLUTCH - DRIVE для Yamaha MOUNTAIN MAX 700 - 2003 года выпуска
-
№АртикулНазвание
-
18CR-17611-01-00 .SHEAVE, PRIMARY FIXED.SHEAVE, PRIMARY FIXED
-
28V0-17639-00-00 .STOPPER.STOPPER
-
38BV-17620-11-00 .PRIMARY SLIDING SHEAVE COMP..PRIMARY SLIDING SHEAVE COMP.
-
490384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
590387-0514T-00 .COLLAR.COLLAR
-
690113-05053-00 BOLT, SETBOLT, SET
-
790105-05644-00 .BOLT, FLANGE.BOLT, FLANGE
-
895607-05200-00 .NUT, U FLANGE.NUT, U FLANGE
-
98CA-17640-12-00 .SPIDER COMPLETE.SPIDER COMPLETE
-
108BW-17653-00-00 .SLIDER.SLIDER
-
1191609-50032-00 .PIN, SPRING.PIN, SPRING
-
1290387-0514U-00 .COLLAR.COLLAR
-
1390105-05644-00 .BOLT, FLANGE.BOLT, FLANGE
-
1495607-05200-00 .NUT, U FLANGE.NUT, U FLANGE
-
158DF-17630-00-00 .PRIMARY SHEAVE CAP COMP..PRIMARY SHEAVE CAP COMP.
-
1690380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
1797017-06030-00 .BOLT.BOLT
-
1892907-06600-00 .WASHER, PLATE.WASHER, PLATE
-
1990202-09227-00 .WASHER, PLATE.WASHER, PLATE
-
208CR-17624-00-00 .ROLLER, COMP.ROLLER, COMP
-
2190380-09245-00 ...BUSH, SOLID...BUSH, SOLID
-
2290202-08204-00 .WASHER, PLATE.WASHER, PLATE
-
238CR-17605-10-00 WEIGHT COMPWEIGHT COMP
-
2490380-08244-00 ...BUSH, SOLID...BUSH, SOLID
-
2590261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (IN)RIVET, COUNTERSUNK (AL10.3MM) (IN)
-
2690261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OUT)RIVET, COUNTERSUNK (AL10.3MM) (OUT)
-
2790501-603L2-00 SPRING, COMPRESSION (Y-WH-Y)SPRING, COMPRESSION (Y-WH-Y)
-
288DN-17641-00-00 V-BELTV-BELT
-
298V0-17647-00-00 .BOLT (L=156.5MM).BOLT (L=156.5MM)
-
3092907-16100-00 .WASHER.WASHER
