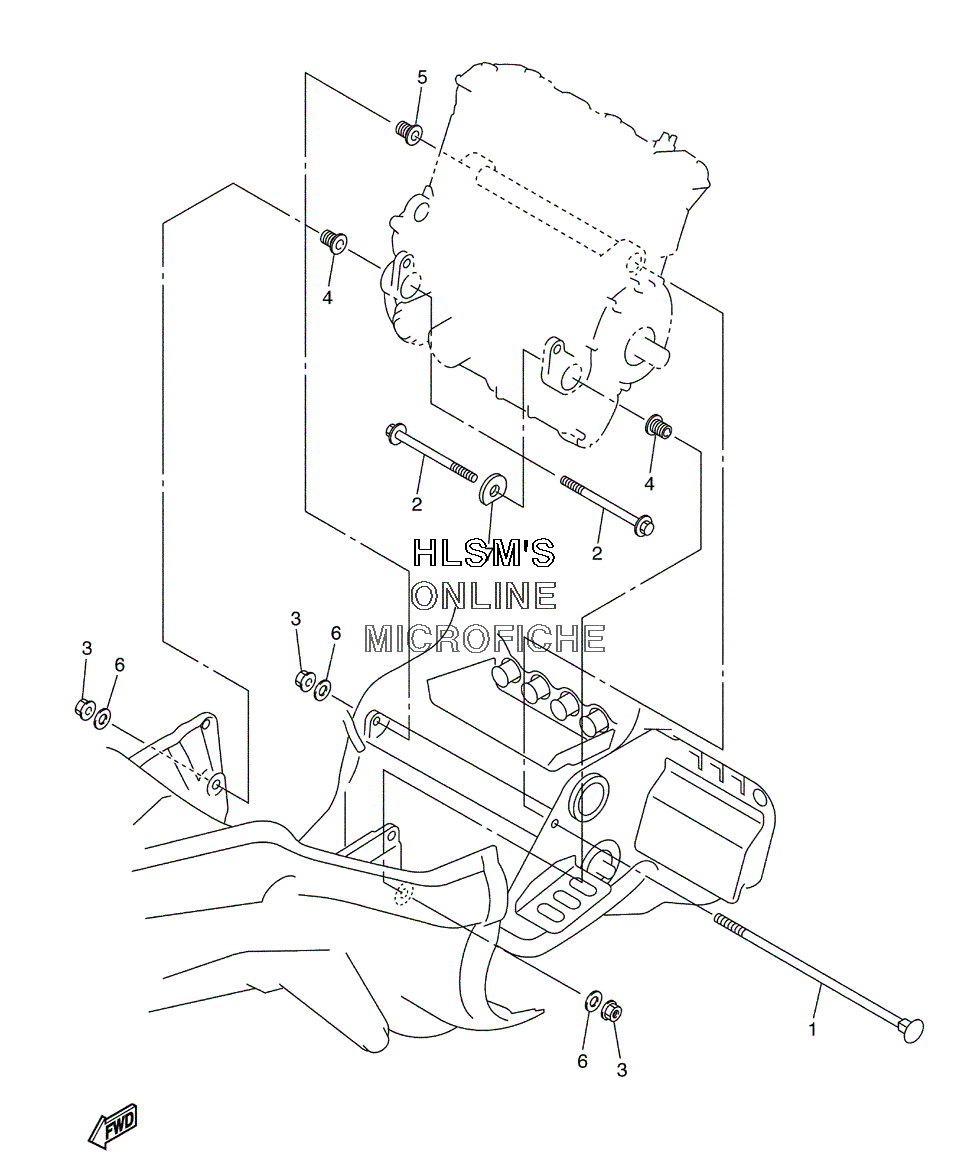

ENGINE MOUNTING для Yamaha RX-1 ER LE - 2003 года выпуска
-
№АртикулНазвание
-
18FA-21481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
295817-12100-00 BOLT, FLANGEBOLT, FLANGE
-
390179-12248-00 NUTNUT
-
48FA-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
58FA-2149C-00-00 BOLT, ENGINE ADJUSTING 2BOLT, ENGINE ADJUSTING 2
-
690201-120T5-00 WASHER, PLATEWASHER, PLATE
-
78FA-15328-00-00 SPACER, DAMPERSPACER, DAMPER
