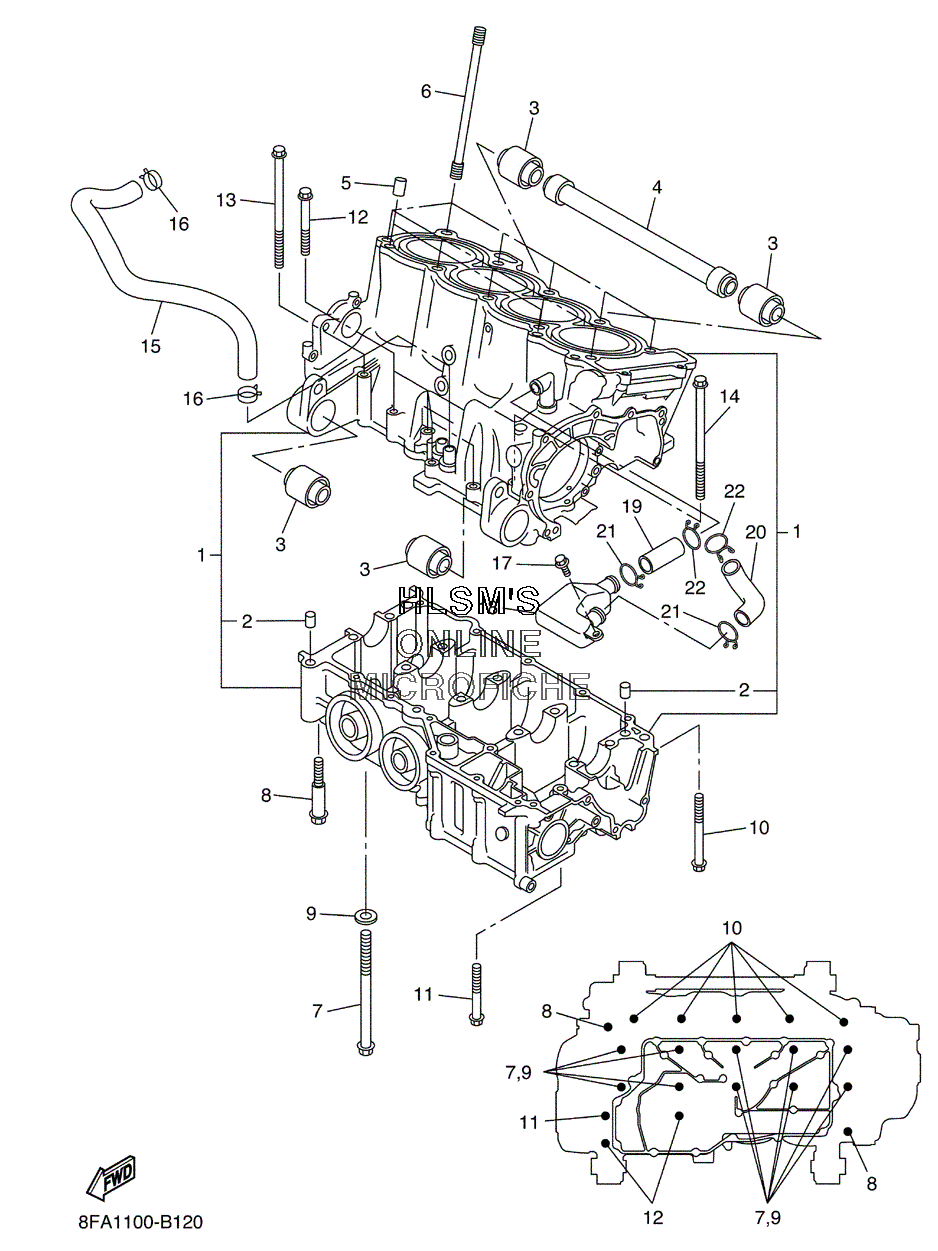

CRANKCASE ASSY для Yamaha RX-1 LE - 2003 года выпуска
-
№АртикулНазвание
-
18FA-15100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
38FA-2139X-00-00 DAMPERDAMPER
-
48FA-21459-00-00 SPACERSPACER
-
599530-10114-00 PIN, DOWELPIN, DOWEL
-
690116-10619-00 BOLT, STUDBOLT, STUD
-
790105-093A5-00 BOLT, FLANGEBOLT, FLANGE
-
890109-065G3-00 BOLTBOLT
-
990201-096J9-00 WASHER, PLATEWASHER, PLATE
-
1095817-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1195817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1295817-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1395817-06080-00 BOLT, FLANGEBOLT, FLANGE
-
1495817-06090-00 BOLT, FLANGEBOLT, FLANGE
-
158FA-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1690467-20050-00 CLIPCLIP
-
1790109-063F1-00 BOLTBOLT
-
188FA-15371-00-00 BREATHERBREATHER
-
198FA-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
208FA-11125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
2190467-22080-00 CLIPCLIP
-
2290467-22080-00 CLIPCLIP
