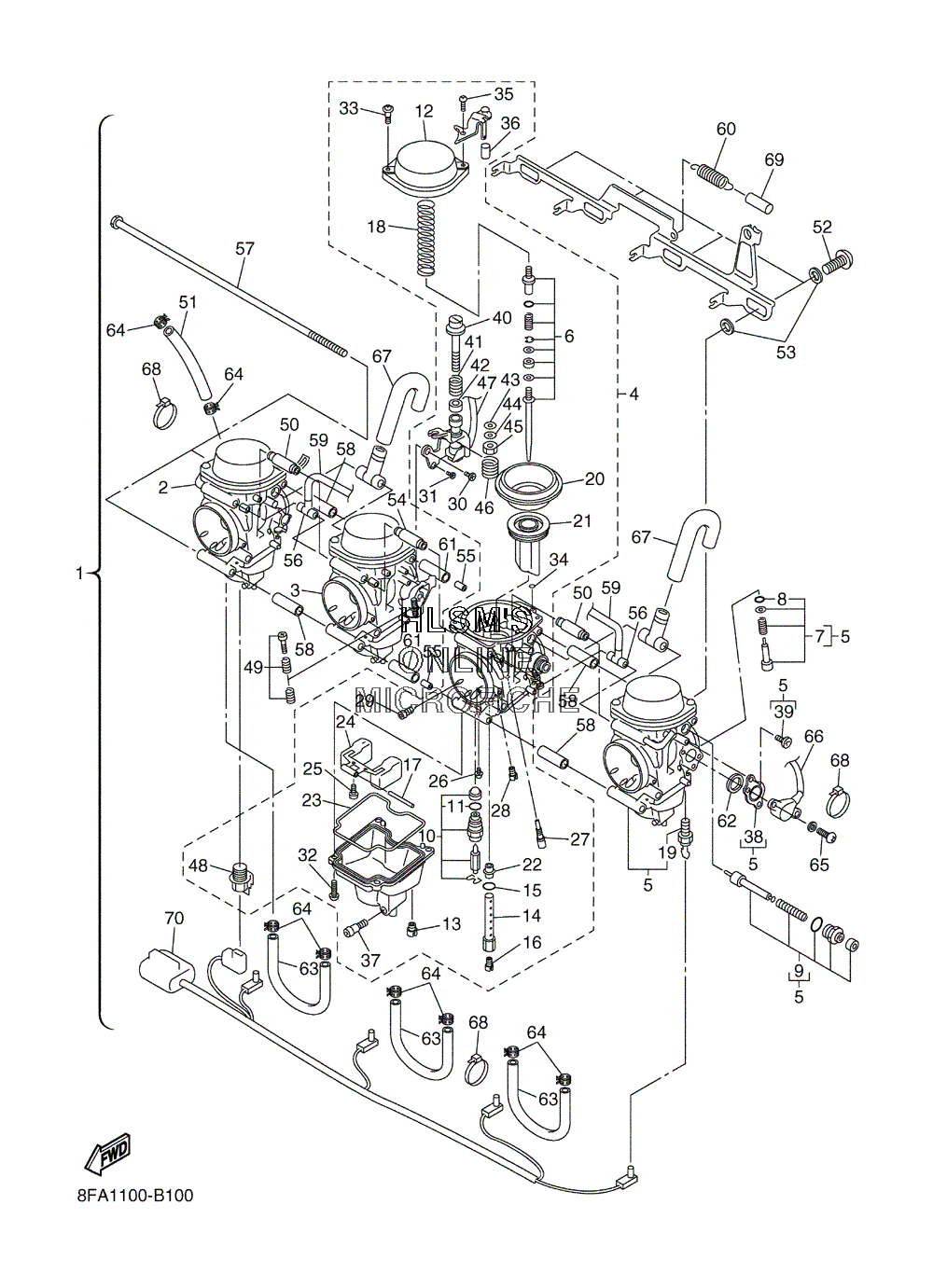

CARBURETOR ASSY для Yamaha RX-1 - 2003 года выпуска
-
№АртикулНазвание
-
18FA-14900-00-00 CARBURETOR ASSYCARBURETOR ASSY
-
28FA-14901-00-00 ...CARBURETOR ASSY 1...CARBURETOR ASSY 1
-
38FA-14902-00-00 ...CARBURETOR ASSY 2...CARBURETOR ASSY 2
-
48FA-14903-00-00 ...CARBURETOR ASSY 3...CARBURETOR ASSY 3
-
58FA-14904-00-00 ...CARBURETOR ASSY 4...CARBURETOR ASSY 4
-
68FA-1490J-00-00 ......NEEDLE SET......NEEDLE SET
-
75MP-14105-00-00 ......PILOT SCREW SET......PILOT SCREW SET
-
83H1-14147-00-00 ..........O-RING..........O-RING
-
94SV-1410A-00-00 ......STARTER SET......STARTER SET
-
108FA-14107-00-00 ......NEEDLE VALVE SET......NEEDLE VALVE SET
-
118F2-14147-00-00 ..........O-RING..........O-RING
-
125EA-14958-00-00 ......COVER, DIAPHRAGM......COVER, DIAPHRAGM
-
135EA-14991-00-00 ......SCREW......SCREW
-
148FA-14261-00-00 ......HOLDER......HOLDER
-
15583-14561-00-00 ......O-RING......O-RING
-
163G2-14231-27-00 ......JET, MAIN (#135) (STD)......JET, MAIN (#135) (STD)
-
163G2-1423A-78-00 ......JET, MAIN (#137.5) (OPT)......JET, MAIN (#137.5) (OPT)
-
163G2-14231-26-00 ......JET, MAIN (#130) (OPT)......JET, MAIN (#130) (OPT)
-
163G2-1423A-77-00 ......JET, MAIN (#132.5) (OPT)......JET, MAIN (#132.5) (OPT)
-
163G2-14231-28-00 ......JET, MAIN (#140) (OPT)......JET, MAIN (#140) (OPT)
-
163G2-1423A-76-00 ......JET, MAIN (#127.5) (OPT)......JET, MAIN (#127.5) (OPT)
-
17127-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
185EA-14933-00-00 ......SPRING, DIAPHRAGM......SPRING, DIAPHRAGM
-
195FU-83790-20-00 ......HEATER ASSY......HEATER ASSY
-
208FA-14940-00-00 ......DIAPHRAGM ASSY......DIAPHRAGM ASSY
-
215EL-14112-00-00 ......VALVE, THROTTLE 1......VALVE, THROTTLE 1
-
228FA-14141-44-00 ......NOZZLE, MAIN......NOZZLE, MAIN
-
235DM-14561-00-00 ......O-RING......O-RING
-
248FA-14985-00-00 ......FLOAT......FLOAT
-
2598507-04008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
261FN-14565-00-00 ......SCREW......SCREW
-
274KM-14142-17-00 ......JET, PILOT (# 17.5)......JET, PILOT (# 17.5)
-
283G2-14231-15-00 ......JET, POWER (# 75)......JET, POWER (# 75)
-
291HX-14231-28-00 ......JET, MAIN (#140)......JET, MAIN (#140)
-
3098702-05008-00 ......SCREW, FLAT HEAD (#2)......SCREW, FLAT HEAD (#2)
-
3198702-04008-00 ......SCREW, FLAT HEAD (#2)......SCREW, FLAT HEAD (#2)
-
3298502-04010-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
334KM-14216-00-00 ......SCREW (#1,3)......SCREW (#1,3)
-
34354-14147-00-00 ......O-RING......O-RING
-
3598502-05016-00 ......SCREW, PAN HEAD (#1,3)......SCREW, PAN HEAD (#1,3)
-
364KM-14194-00-00 ......RING (#1,3)......RING (#1,3)
-
374KP-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
385EL-14995-10-00 ......BRACKET (#4)......BRACKET (#4)
-
3998702-04008-00 ......SCREW, FLAT HEAD (#4)......SCREW, FLAT HEAD (#4)
-
408CC-14122-00-00 ......SCREW, THROTTLE (#2)......SCREW, THROTTLE (#2)
-
412J2-14133-00-00 ......SPRING, THROTTLE STOP (#2)......SPRING, THROTTLE STOP (#2)
-
4289A-14265-00-00 ......COLLAR (#2)......COLLAR (#2)
-
4322F-14117-00-00 ......WASHER, PLUG SCREW (#2)......WASHER, PLUG SCREW (#2)
-
441UF-14952-00-00 ......WASHER (#2)......WASHER (#2)
-
4589A-14594-00-00 ......NUT (#2)......NUT (#2)
-
4689A-24529-00-00 ......SPRING (#2)......SPRING (#2)
-
4787S-8259A-00-00 ......SWITCH, CARBURETOR (#2)......SWITCH, CARBURETOR (#2)
-
488FA-82103-00-00 ......TERMINAL 1 (#1)......TERMINAL 1 (#1)
-
493EN-1490K-00-00 ...STOP SCREW SET...STOP SCREW SET
-
508FA-14149-00-00 ...PIPE...PIPE
-
518FA-14987-00-00 ...HOSE...HOSE
-
524XV-24453-00-00 ...SCREW...SCREW
-
534NK-14327-00-00 ...PACKING...PACKING
-
548FA-14148-00-00 ...PIPE...PIPE
-
555EA-14577-00-00 ...ROD...ROD
-
565DM-14396-10-00 ...PIPE...PIPE
-
574SV-14592-00-00 ...SCREW...SCREW
-
585EA-14148-00-00 ...PIPE...PIPE
-
598FA-1410E-00-00 ...HOSE...HOSE
-
604SV-14935-00-00 ...SPRING...SPRING
-
615EA-14996-00-00 ...PIPE...PIPE
-
624KG-14285-00-00 ...WASHER...WASHER
-
638FA-14987-10-00 ...HOSE...HOSE
-
6490467-10035-00 ...CLIP...CLIP
-
651UY-14565-00-00 ...SCREW...SCREW
-
664XY-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
678FA-14197-00-00 ...PIPE...PIPE
-
6835H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
695DM-14936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
708FA-81517-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
