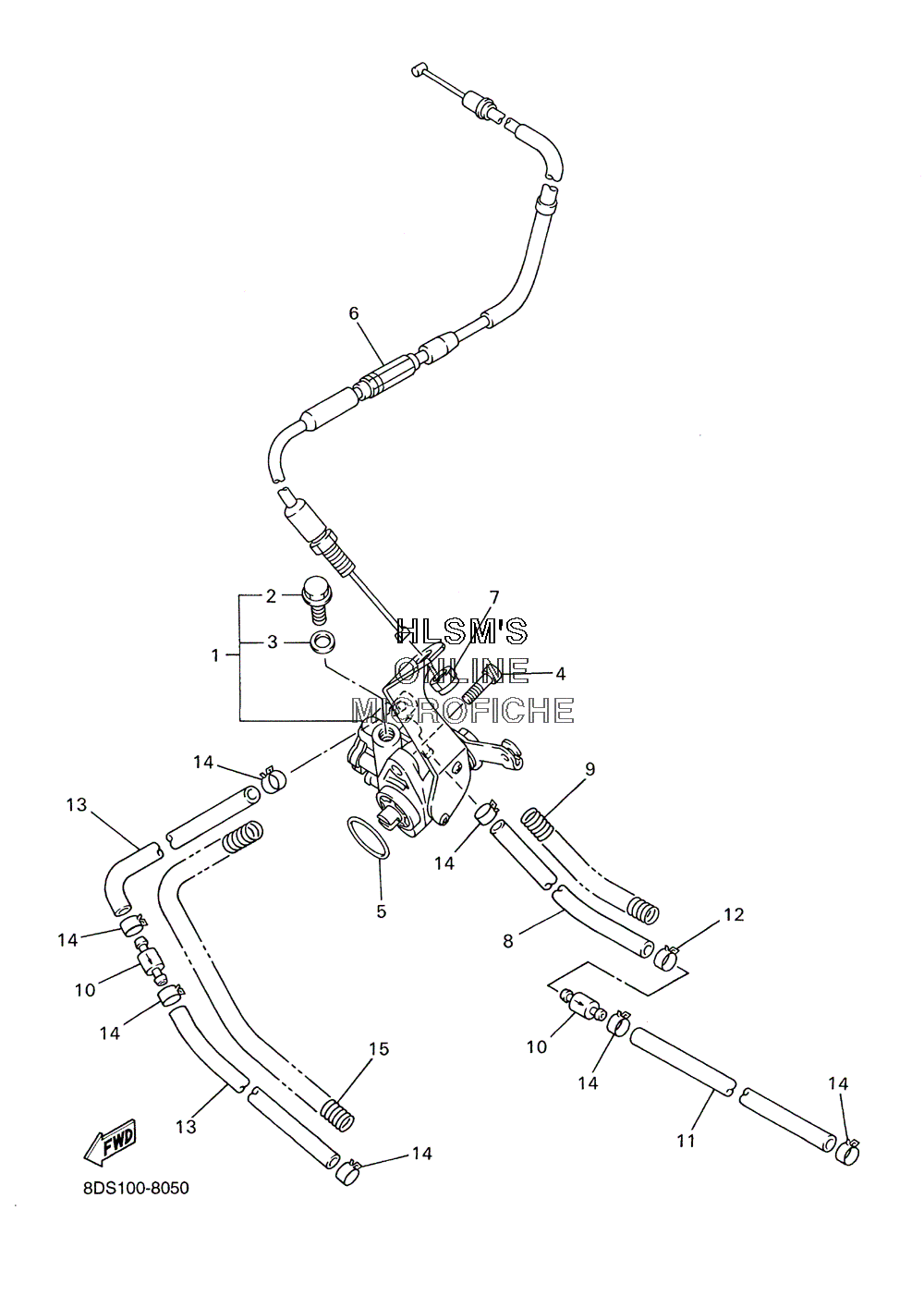

OIL PUMP ASSY для Yamaha SX 600 R - 2003 года выпуска
-
№АртикулНазвание
-
18DG-13100-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
289A-13185-00-00 ...BOLT, BREATHER...BOLT, BREATHER
-
389A-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
490110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
593210-191A1-00 O-RINGO-RING
-
68ED-26320-00-00 PUMP CABLE ASSYPUMP CABLE ASSY
-
795707-08300-00 NUT, FLANGENUT, FLANGE
-
891A30-03020-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
990501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
108CH-1316A-00-00 CHECK VALVE ASSYCHECK VALVE ASSY
-
1191A30-03014-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1290467-07055-00 CLIPCLIP
-
1391A30-03008-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1490468-02025-00 CLIPCLIP
-
1590501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
