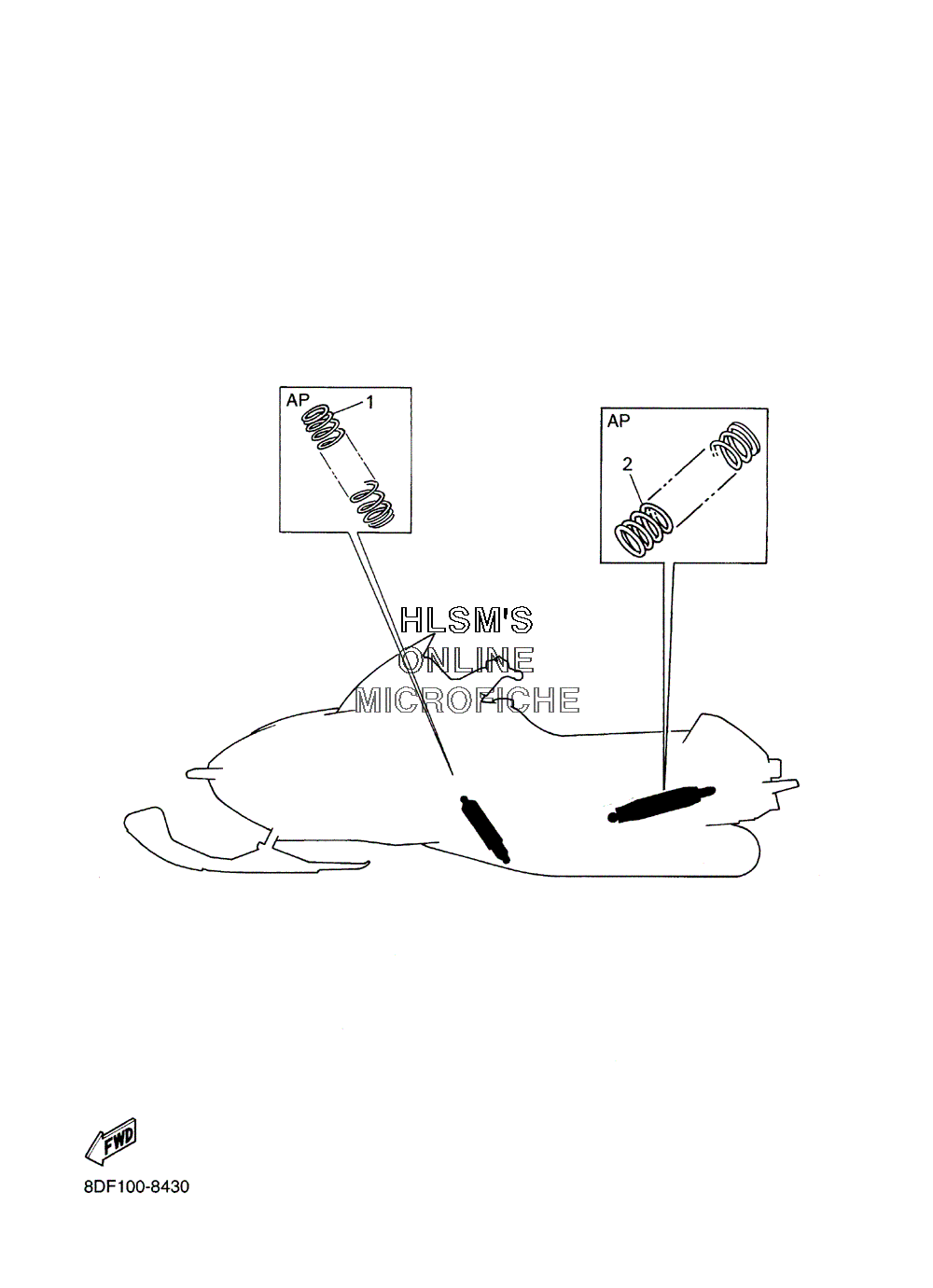

SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS для Yamaha SX VIPER 700 - 2003 года выпуска
-
№АртикулНазвание
-
18CX-47336-00-00 SPRING (K=1.8) (OPT)SPRING (K=1.8) (OPT)
-
18CX-47336-10-00 SPRING (K=2.3) (OPT)SPRING (K=2.3) (OPT)
-
18CX-47336-20-00 SPRING (K=2.8) (OPT)SPRING (K=2.8) (OPT)
-
18CH-47336-40-00 SPRING (K=1.3-2.3) (OPT)SPRING (K=1.3-2.3) (OPT)
-
18CH-47336-50-00 SPRING (K=1.7-2.7) (OPT)SPRING (K=1.7-2.7) (OPT)
-
18CH-47336-60-00 SPRING (K=1.7-3.3) (OPT)SPRING (K=1.7-3.3) (OPT)
-
28CX-47489-00-00 SPRING1 (K=3.0-5.0) (OPT)SPRING1 (K=3.0-5.0) (OPT)
-
28CX-47489-10-00 SPRING1 (K=3.3-5.3) (OPT)SPRING1 (K=3.3-5.3) (OPT)
-
28DH-47489-00-00 SPRING1 (K=3.5-5.5) (OPT)SPRING1 (K=3.5-5.5) (OPT)
