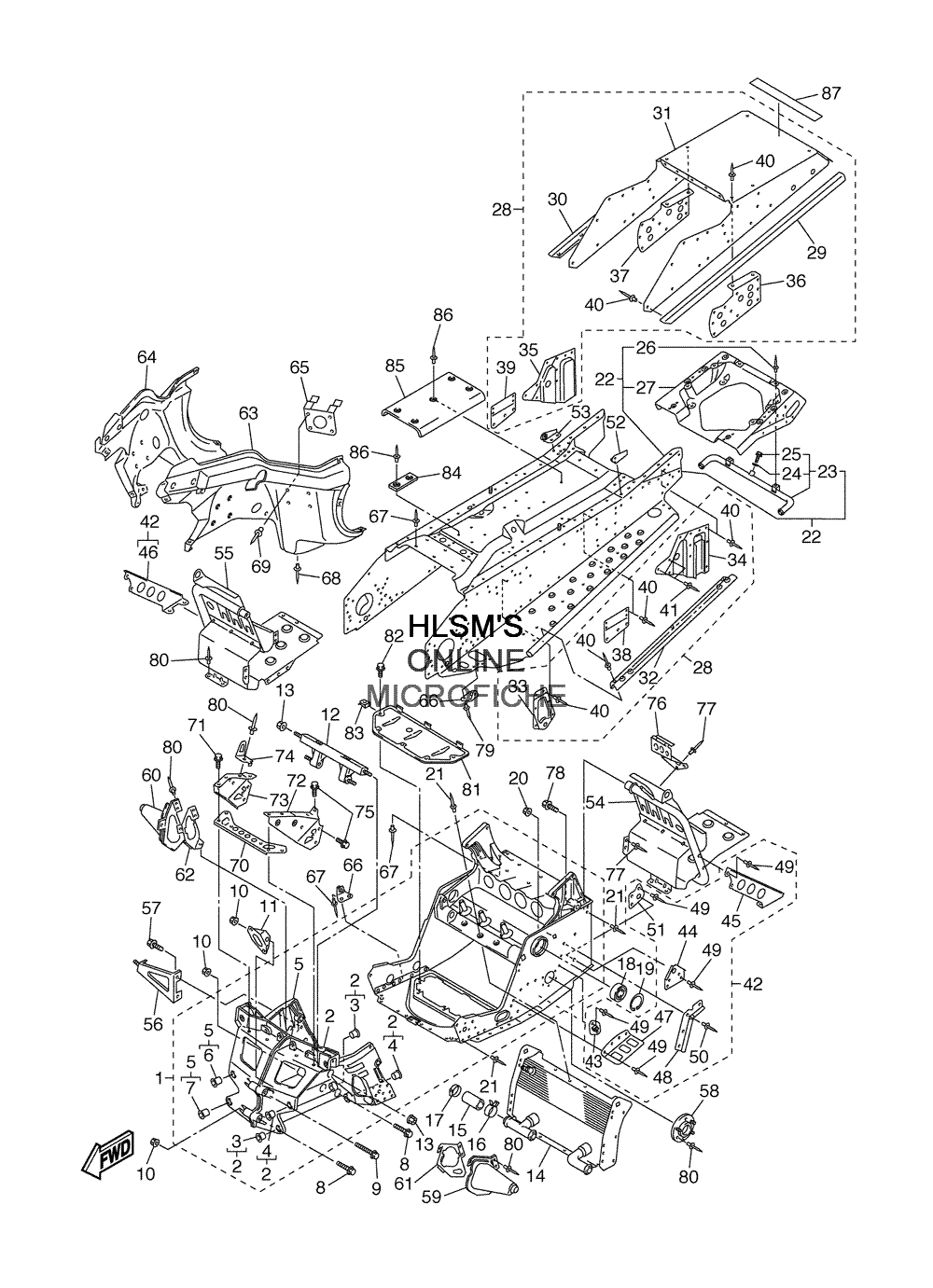

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RX-1 MOUNTAIN LIMITED EDITION - 2004 года выпуска
-
№АртикулНазвание
-
18EP-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-00-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-W2198-00-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148EP-12440-00-00 HEAT EXCHANGER ASSY.HEAT EXCHANGER ASSY.
-
158FA-12551-00-00 HOSE 7HOSE 7
-
1690467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
1790450-35001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
1893306-20650-00 BEARINGBEARING
-
1999009-62500-00 CIRCLIPCIRCLIP
-
2095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190267-47195-00 RIVET, BLINDRIVET, BLIND
-
228FA-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
238FA-1241A-00-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
2490210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
2595817-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
2690267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
278FA-W2199-00-00 ...REINEFORCEMENT, FRAME REAR...REINEFORCEMENT, FRAME REAR
-
288EP-W2196-00-00 PANEL, SUB-FRAME KITPANEL, SUB-FRAME KIT
-
298EP-2111J-00-00 ...MEMBER, SIDE 1...MEMBER, SIDE 1
-
308EP-2111K-00-00 ...MEMBER, SIDE 2...MEMBER, SIDE 2
-
318EP-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
328EP-2192A-00-00 ...PLATE, ANTI-SKID...PLATE, ANTI-SKID
-
338EP-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
348EP-21944-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
358EP-21954-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
368EP-21963-00-00 ...PATCH 3...PATCH 3
-
378EP-21964-00-00 ...PATCH 4...PATCH 4
-
388EP-21965-00-00 ...PATCH 5...PATCH 5
-
398EP-21966-00-00 ...PATCH 6...PATCH 6
-
4090267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
4190267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
428FA-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
438CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
448CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
458FA-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
468FA-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
478FA-2198G-00-00 ...COVER 2...COVER 2
-
488FA-21999-00-00 ...CLAMP, WIREHARNESS...CLAMP, WIREHARNESS
-
4990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5090267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
518FA-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
528FA-2194X-00-00 BRACKET 1BRACKET 1
-
538FA-2195X-00-00 BRACKET 2BRACKET 2
-
548FG-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
558FG-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
568FA-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
5795827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
588EK-21920-01-00 HOUSING, REINF SUB-ASSY. (L.H)HOUSING, REINF SUB-ASSY. (L.H)
-
598FA-2198F-00-00 COVER 1COVER 1
-
608FA-2198J-00-00 COVER 3COVER 3
-
618FA-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
628FA-2195F-00-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
638EP-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
638EP-2196A-00-00 FRAME UNDER 1 FOR BLACKFRAME UNDER 1 FOR BLACK
-
638EP-2196A-10-00 FRAME UNDER 1 SILVER 3FRAME UNDER 1 SILVER 3
-
648EP-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
648EP-2196E-00-00 FRAME, UNDER 2 FOR BLACKFRAME, UNDER 2 FOR BLACK
-
648EP-2196E-10-00 FRAME, UNDER 2 FOR SILVER 3FRAME, UNDER 2 FOR SILVER 3
-
658FA-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
668FA-2196F-00-00 BRACKET 3BRACKET 3
-
6790267-48083-00 RIVET, BLINDRIVET, BLIND
-
6890267-48018-00 RIVET, BLINDRIVET, BLIND
-
6990267-47200-00 RIVET, BLINDRIVET, BLIND
-
708FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7195827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
728FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
738FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
748FA-77125-00-00 STAY 1STAY 1
-
7595827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
768FA-21973-00-00 HOOKHOOK
-
7790267-47195-00 RIVET, BLINDRIVET, BLIND
-
7895827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7990267-48095-00 RIVET, BLINDRIVET, BLIND
-
8090267-47195-00 RIVET, BLINDRIVET, BLIND
-
818FA-2197E-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
8290109-065F3-00 BOLTBOLT
-
8390183-06053-00 NUT, SPRINGNUT, SPRING
-
848FA-21998-00-00 SPACERSPACER
-
858FA-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8690267-48059-00 RIVET, BLINDRIVET, BLIND
-
8788X-77762-10-00 LABEL, WARNINGLABEL, WARNING
