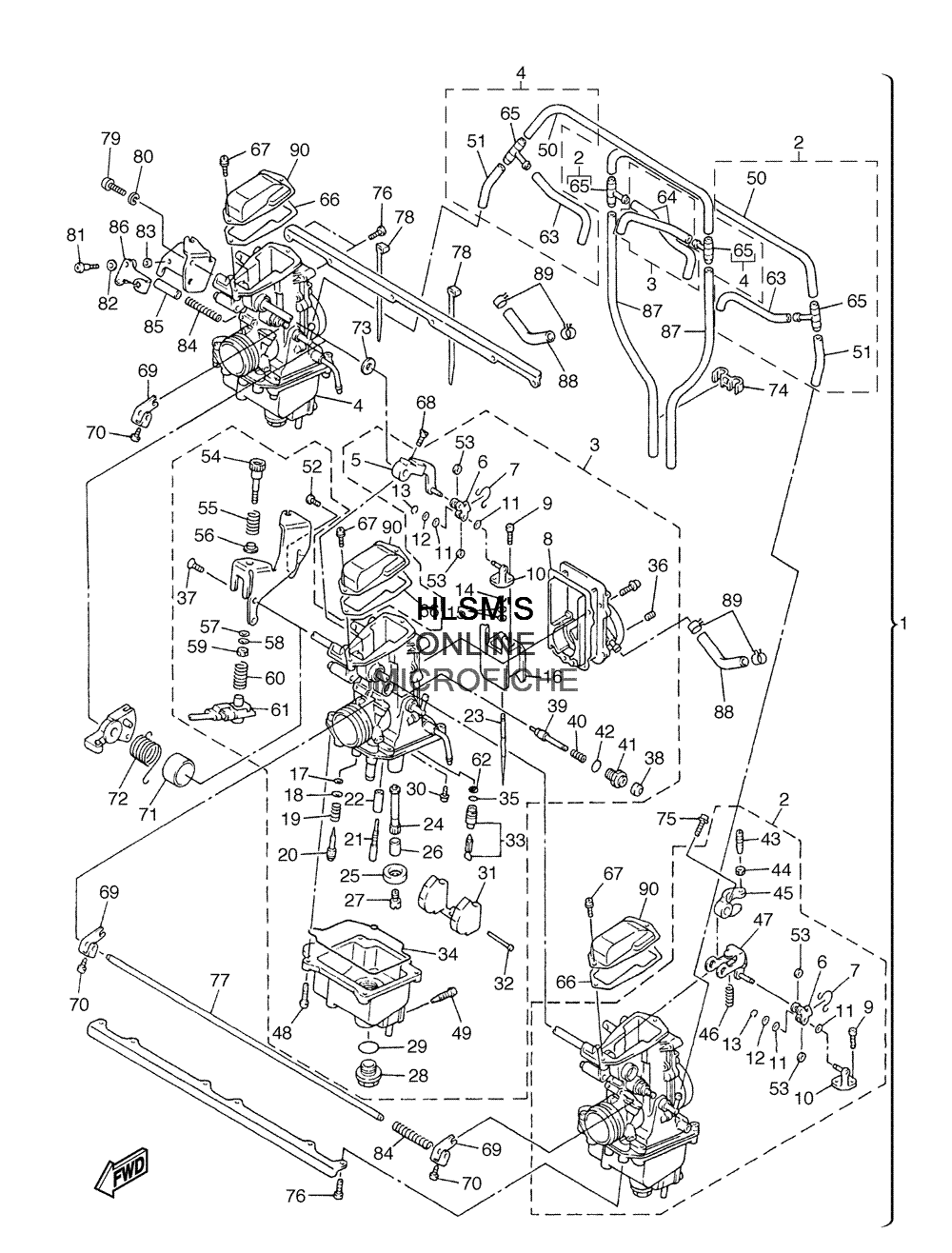

CARBURETOR ASSY для Yamaha SX VENOM - 2004 года выпуска
-
№АртикулНазвание
-
18EX-14100-00-00 CARBURETOR ASSY.CARBURETOR ASSY.
-
28EX-14101-00-00 ...CARBURETOR ASSY. 1...CARBURETOR ASSY. 1
-
38EX-14102-00-00 ...CARBURETOR ASSY. 2...CARBURETOR ASSY. 2
-
48EX-14103-00-00 ...CARBURETOR ASSY. 3...CARBURETOR ASSY. 3
-
589A-14292-00-00 ......LEVER A (#2)......LEVER A (#2)
-
689A-14243-00-00 ......PLATE......PLATE
-
789A-14137-00-00 ......CLIP......CLIP
-
889A-14199-00-00 ......GASKET......GASKET
-
991316-03012-00 ......BOLT......BOLT
-
1089A-14188-00-00 ......CONNECTOR......CONNECTOR
-
113GF-14126-00-00 ......GASKET......GASKET
-
12620-14198-00-00 ......GASKET......GASKET
-
133MA-14937-00-00 ......CLIP......CLIP
-
143FA-14137-00-00 ......CLIP......CLIP
-
158AB-14227-00-00 ......WASHER (T=0.4MM)......WASHER (T=0.4MM)
-
1689A-14112-30-00 ......VALVE, THROTTLE 1......VALVE, THROTTLE 1
-
173H1-14147-00-00 ......O-RING......O-RING
-
183H1-14962-00-00 ......WASHER......WASHER
-
195K7-14134-00-00 ......SPRING, AIR ADJUSTING......SPRING, AIR ADJUSTING
-
2089A-14565-00-00 ......SCREW, PILOT ADJUSTING......SCREW, PILOT ADJUSTING
-
213H1-14142-45-00 ......JET, PILOT (#45) (OPT)......JET, PILOT (#45) (OPT)
-
213H1-14142-42-00 ......JET, PILOT (#42.5) (STD)......JET, PILOT (#42.5) (STD)
-
2289A-14996-00-00 ......PIPE......PIPE
-
23275-14116-50-00 ......NEEDLE......NEEDLE
-
248CH-14141-54-00 ......NOZZLE, MAIN (#1)......NOZZLE, MAIN (#1)
-
248CH-14141-52-00 ......NOZZLE, MAIN (#2, 3)......NOZZLE, MAIN (#2, 3)
-
251LX-14153-00-00 ......WASHER, MAIN JET......WASHER, MAIN JET
-
2689A-14194-00-00 ......RING......RING
-
273G2-14231-27-00 ......JET, MAIN (#135) (OPT)......JET, MAIN (#135) (OPT)
-
273G2-1423A-78-00 ......JET, MAIN (#137.5) (OPT)......JET, MAIN (#137.5) (OPT)
-
273G2-14231-26-00 ......JET, MAIN (#130) (OPT)......JET, MAIN (#130) (OPT)
-
273G2-1423A-77-00 ......JET, MAIN (#132.5) (OPT)......JET, MAIN (#132.5) (OPT)
-
273G2-14231-28-00 ......JET, MAIN (#140) (OPT)......JET, MAIN (#140) (OPT)
-
273G2-14231-29-00 ......JET, MAIN (#145) (OPT)......JET, MAIN (#145) (OPT)
-
273G2-1423A-76-00 ......JET, MAIN (#127.5) (OPT)......JET, MAIN (#127.5) (OPT)
-
273G2-1423E-57-00 ......JET, MAIN (#143.8) (OPT)......JET, MAIN (#143.8) (OPT)
-
273G2-1423A-79-00 ......JET, MAIN (#142.5) (OPT)......JET, MAIN (#142.5) (OPT)
-
273G2-1423E-49-00 ......JET, MAIN (#123.8) (OPT)......JET, MAIN (#123.8) (OPT)
-
273G2-1423E-51-00 ......JET, MAIN (#128.8) (OPT)......JET, MAIN (#128.8) (OPT)
-
273G2-1423E-55-00 ......JET, MAIN (#138.8) (STD) (#1)......JET, MAIN (#138.8) (STD) (#1)
-
273G2-1423E-55-00 ......JET, MAIN (#138.8) (OPT)......JET, MAIN (#138.8) (OPT)
-
273G2-1423E-54-00 ......JET, MAIN (#136.3) (STD) (#2, 3)......JET, MAIN (#136.3) (STD) (#2, 3)
-
273G2-1423E-54-00 ......JET, MAIN (#136.3) (OPT)......JET, MAIN (#136.3) (OPT)
-
273G2-1423E-53-00 ......JET, MAIN (#133.8) (OPT)......JET, MAIN (#133.8) (OPT)
-
273G2-1423E-52-00 ......JET, MAIN (#131.3) (OPT)......JET, MAIN (#131.3) (OPT)
-
273G2-1423E-50-00 ......JET, MAIN (#126.3) (OPT)......JET, MAIN (#126.3) (OPT)
-
273G2-1423E-48-00 ......JET, MAIN (#121.3) (OPT)......JET, MAIN (#121.3) (OPT)
-
273G2-1423E-56-00 ......JET, MAIN (#141.3) (OPT)......JET, MAIN (#141.3) (OPT)
-
273G2-1423E-47-00 ......JET, MAIN (#118.8) (OPT)......JET, MAIN (#118.8) (OPT)
-
28500-14115-00-00 ......PLUG, SCREW......PLUG, SCREW
-
29558-14147-00-00 ......O-RING......O-RING
-
302LN-14565-00-00 ......SCREW......SCREW
-
318EK-14185-00-00 ......FLOAT......FLOAT
-
32537-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
331AE-14190-13-00 ......NEEDLE VALVE ASSY.......NEEDLE VALVE ASSY.
-
3489A-14147-00-00 ......O-RING......O-RING
-
358F2-14147-00-00 ......O-RING......O-RING
-
36239-14172-10-00 ......PILOT JET, AIR (1.0)......PILOT JET, AIR (1.0)
-
3798702-05008-00 ......SCREW, FLAT HEAD (#2)......SCREW, FLAT HEAD (#2)
-
38302-14173-00-00 ......COVER, PLUNGER CAP......COVER, PLUNGER CAP
-
394G0-14171-00-00 ......PLUNGER, STARTER......PLUNGER, STARTER
-
401AW-14135-00-00 ......SPRING, PLUNGER......SPRING, PLUNGER
-
411FN-14174-00-00 ......CAP, PLUNGER......CAP, PLUNGER
-
421AE-14147-00-00 ......O-RING......O-RING
-
4389A-14216-00-00 ......SCREW (#1, 3)......SCREW (#1, 3)
-
4495302-05700-00 ......NUT (#1, 3)......NUT (#1, 3)
-
4589A-14276-00-00 ......LEVER (#1, 3)......LEVER (#1, 3)
-
4689A-14286-00-00 ......SPRING (#1, 3)......SPRING (#1, 3)
-
4789A-14905-00-00 ......LEVER, STARTER (#1, 3)......LEVER, STARTER (#1, 3)
-
4898501-04014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
4912R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
5084M-14197-00-00 ......PIPE (#1, 3)......PIPE (#1, 3)
-
518CH-14348-00-00 ......PIPE 1 (#1, 3)......PIPE 1 (#1, 3)
-
5298502-04010-00 ......SCREW, PAN HEAD (#2)......SCREW, PAN HEAD (#2)
-
533MA-14918-00-00 ......RING......RING
-
548CC-14122-00-00 ......SCREW, THROTTLE......SCREW, THROTTLE
-
552J2-14133-00-00 ......SPRING, THROTTLE STOP......SPRING, THROTTLE STOP
-
5689A-14265-00-00 ......COLLAR......COLLAR
-
5722F-14117-00-00 ......WASHER, PLUG SCREW (#2)......WASHER, PLUG SCREW (#2)
-
581UF-14952-00-00 ......WASHER......WASHER
-
5989A-14594-00-00 ......NUT......NUT
-
6089A-24529-00-00 ......SPRING......SPRING
-
6187S-8259A-00-00 ......SWITCH, CARBURETOR......SWITCH, CARBURETOR
-
621J7-14994-00-00 ......NET, FILTER......NET, FILTER
-
638A7-14196-00-00 ......PIPE (#1, 3)......PIPE (#1, 3)
-
648F2-14197-00-00 ......PIPE (#2)......PIPE (#2)
-
654N0-14251-00-00 ......NIPPLE (#1, 3)......NIPPLE (#1, 3)
-
6689A-14198-00-00 ...GASKET...GASKET
-
6797606-04110-00 ...SCREW...SCREW
-
6898702-04014-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
6989A-14208-00-00 ...LEVER COMP. 1...LEVER COMP. 1
-
7011H-14991-00-00 ...SCREW...SCREW
-
7189A-14264-00-00 ...COLLAR (#2)...COLLAR (#2)
-
728EX-14589-00-00 ...SPRING...SPRING
-
733H1-14227-00-00 ...WASHER...WASHER
-
7487M-14137-00-00 ...CLIP...CLIP
-
7597602-04116-00 ...SCREW, PAN HEAD WITH WASHER (#1, 3)...SCREW, PAN HEAD WITH WASHER (#1, 3)
-
7698502-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
778CH-14978-00-00 ...SHAFT, STARTER LEVER...SHAFT, STARTER LEVER
-
7835H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
7998502-05010-00 ...SCREW, PAN HEAD (#3)...SCREW, PAN HEAD (#3)
-
8092902-05100-00 ...WASHER, SPRING (#3)...WASHER, SPRING (#3)
-
8122F-14115-00-00 ...PLUG, SCREW (#3)...PLUG, SCREW (#3)
-
8222F-14117-00-00 ...WASHER, PLUG SCREW (#3)...WASHER, PLUG SCREW (#3)
-
833FV-14962-00-00 ...WASHER (#3)...WASHER (#3)
-
841AE-14135-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
8589A-14118-00-00 ...CAP...CAP
-
8689A-14588-00-00 ...LEVER...LEVER
-
878A7-14197-00-00 ...PIPE...PIPE
-
888CH-14987-10-00 ...HOSE...HOSE
-
8990467-10035-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
9089A-24452-00-00 ...COVER...COVER
