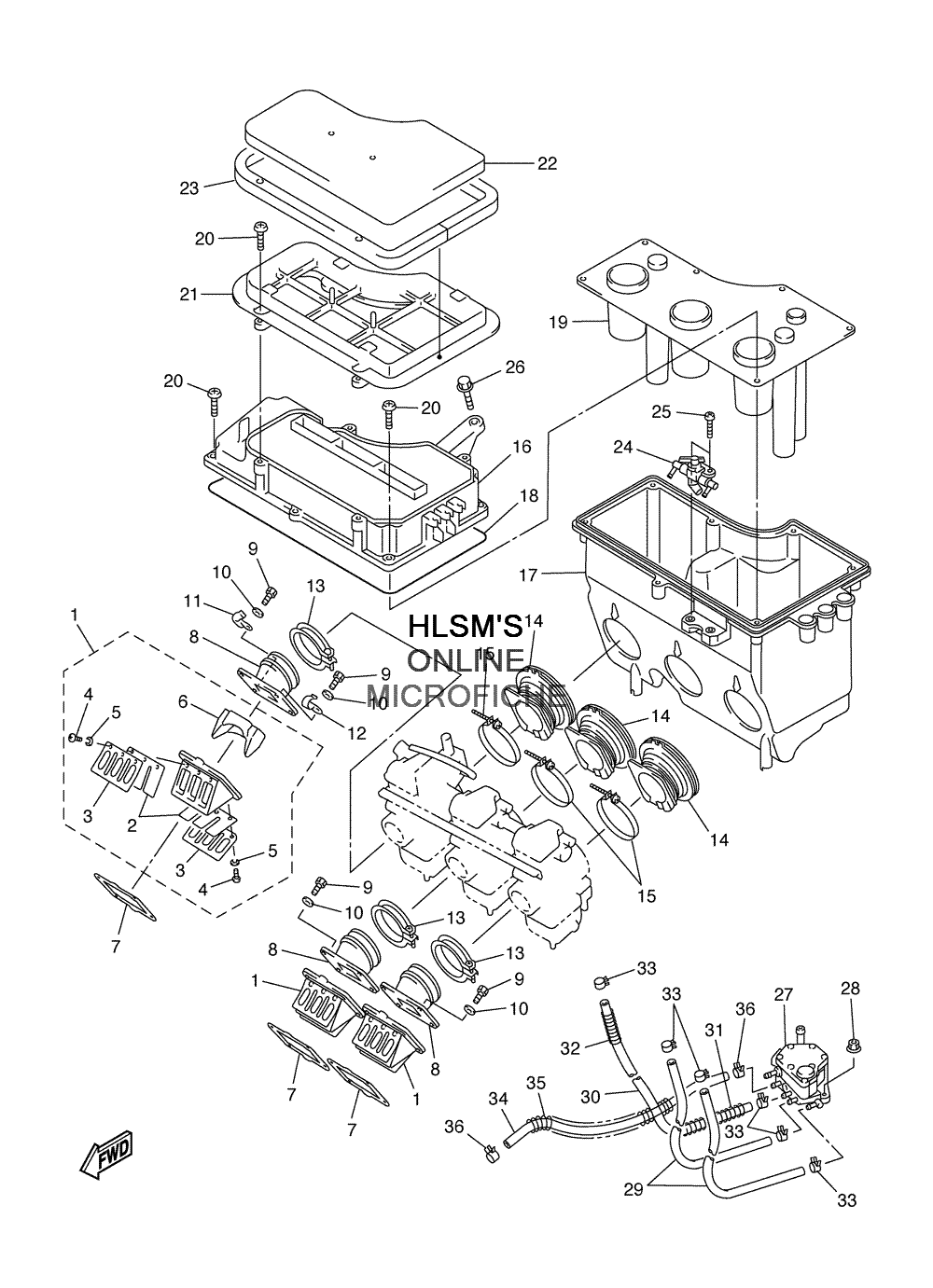

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha VENTURE 600 - 2004 года выпуска
-
№АртикулНазвание
-
14DA-13610-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
23SP-13613-00-00 ...REED, VALVE...REED, VALVE
-
34DA-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
64DA-13625-00-00 ...SPACER, REED VALVE...SPACER, REED VALVE
-
78CH-13621-01-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
88CH-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
997017-06025-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
1190462-08239-00 CLAMPCLAMP
-
1290462-08246-00 CLAMPCLAMP
-
1390460-56073-00 CLAMP, HOSECLAMP, HOSE
-
148EX-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1590450-53061-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
168EK-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
178EX-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
188CH-14452-00-00 SEALSEAL
-
198EK-14477-00-00 PLATEPLATE
-
2090167-05043-00 SCREW, TAPPINGSCREW, TAPPING
-
218EK-14458-00-00 GUIDEGUIDE
-
228EK-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
238EK-14425-00-00 DAMPER 1DAMPER 1
-
248CH-1249A-03-00 COCK ASSY.COCK ASSY.
-
2598907-06020-00 SCREW, BINDSCREW, BIND
-
2690119-06182-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
278CH-24410-00-00 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
2895707-06500-00 NUT, FLANGENUT, FLANGE
-
2990445-095K1-00 HOSEHOSE
-
3090445-093J2-00 HOSEHOSE
-
3190501-085L6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3290501-086L1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3390467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
3490445-11735-00 HOSEHOSE
-
3590501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3690467-11032-00 CLIP, SCISSORCLIP, SCISSOR
