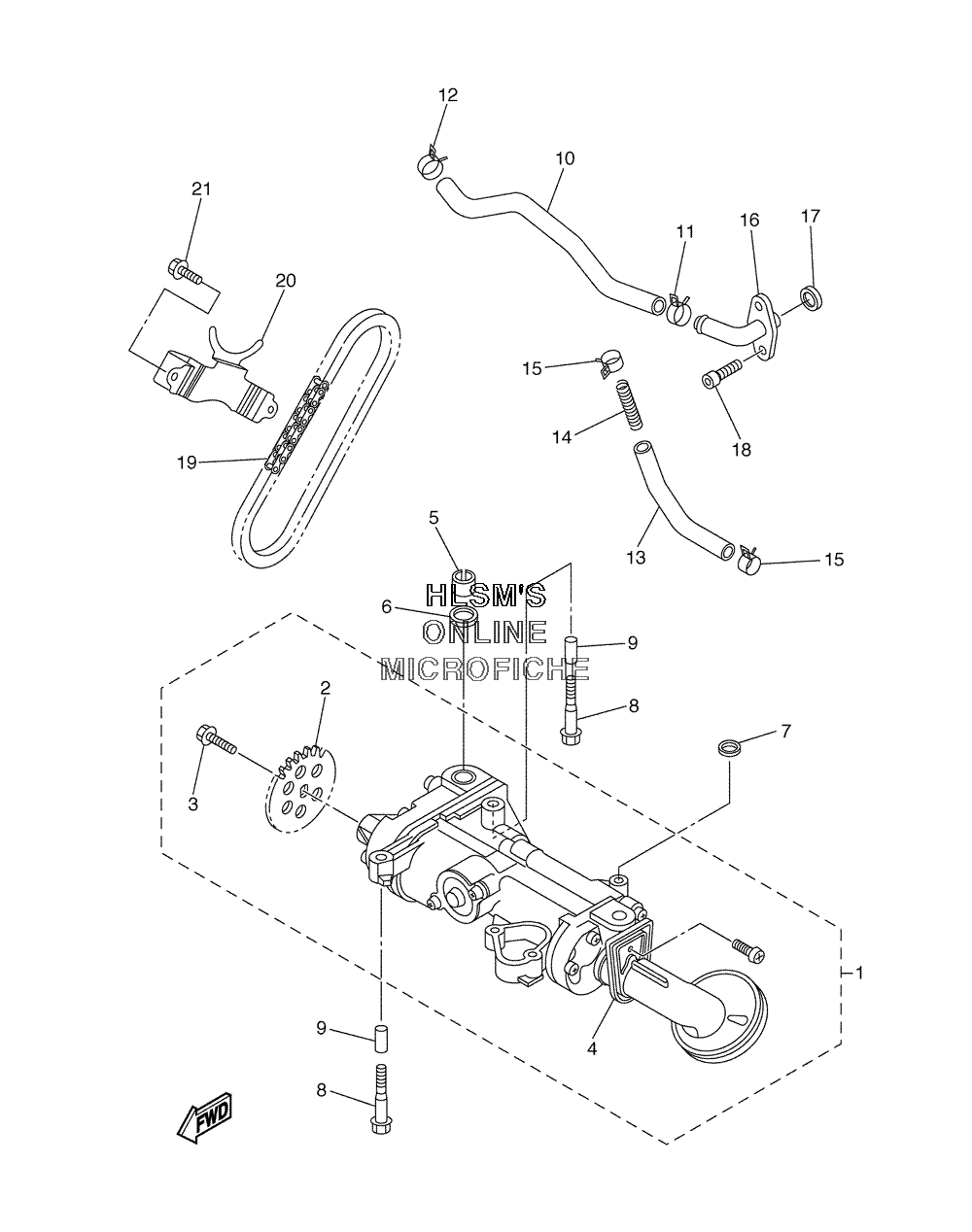

OIL PUMP ASSY для Yamaha RS RAGE - 2005 года выпуска
-
№АртикулНазвание
-
18ES-13300-00-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
24XV-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
390105-06154-00 ...BOLT, FLANGE...BOLT, FLANGE
-
48ES-13427-00-00 ...SPACER, STRAINER...SPACER, STRAINER
-
58ES-13284-00-00 PIPEPIPE
-
693210-18322-00 O-RINGO-RING
-
793210-14579-00 O-RINGO-RING
-
895817-06040-00 BOLT, FLANGEBOLT, FLANGE
-
991808-22019-00 PIN, DOWELPIN, DOWEL
-
108ES-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
1190467-22097-00 CLIPCLIP
-
1290467-22097-00 CLIPCLIP
-
138ES-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
1490501-080A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1590467-22097-00 CLIPCLIP
-
168ES-13115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
1793210-16629-00 O-RINGO-RING
-
1891317-06016-00 BOLTBOLT
-
1994580-25064-00 CHAINCHAIN
-
208ES-13898-00-00 HOLDERHOLDER
-
2195817-06012-00 BOLT, FLANGEBOLT, FLANGE
