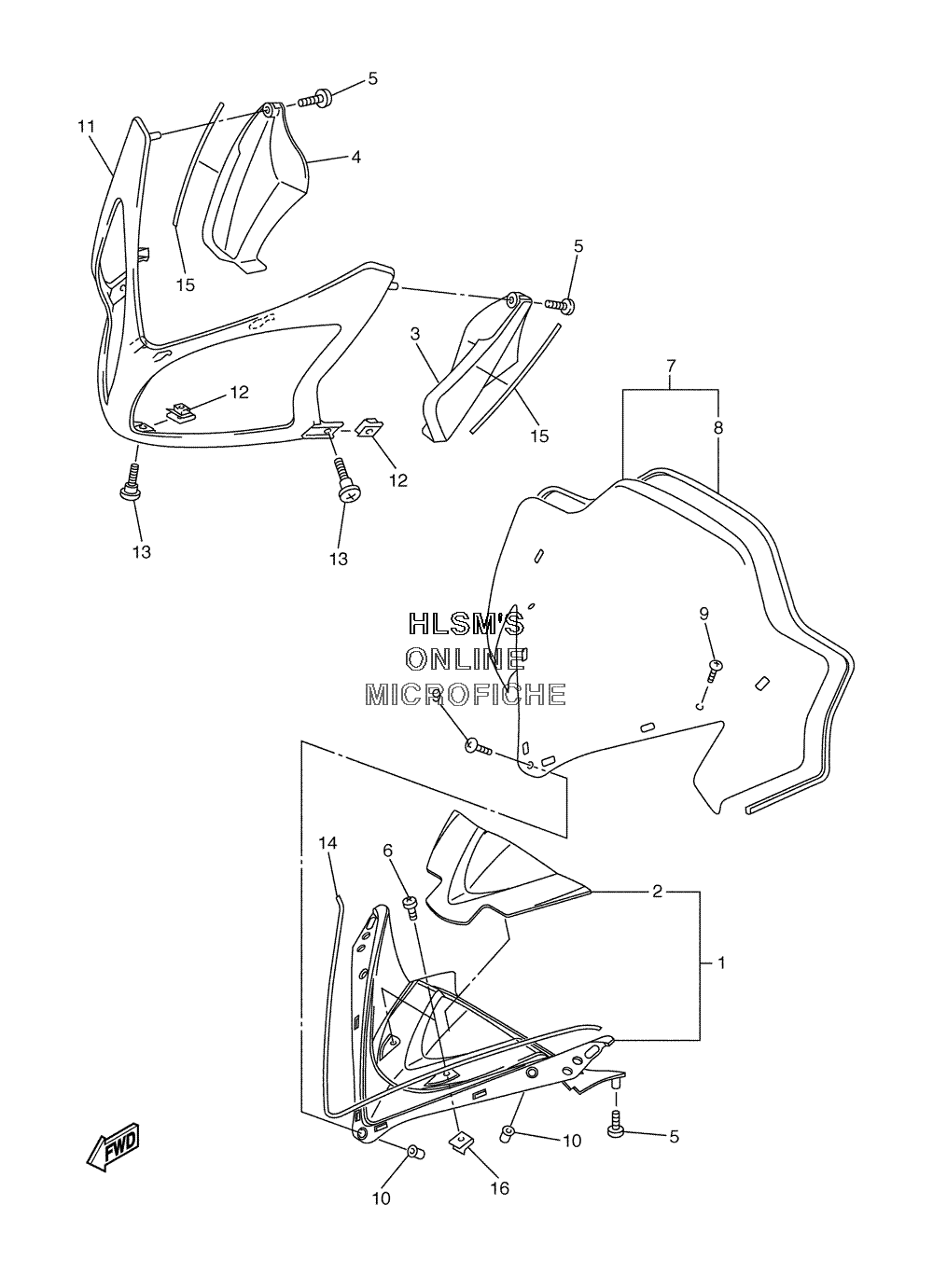

HOOD - WINDSHIELD ASSY для Yamaha RS VECTOR ER - 2005 года выпуска
-
№АртикулНазвание
-
18ES-W7725-00-00 COVER, HEADLIGHT (FROM 8FJ-001008 AND UP)COVER, HEADLIGHT (FROM 8FJ-001008 AND UP)
-
18FA-77251-01-00 COVER, HEADLIGHT (UP TO 8FJ-001007)COVER, HEADLIGHT (UP TO 8FJ-001007)
-
28ES-77198-00-00 ......DAMPER 1 (FROM 8FJ-001008 AND UP)......DAMPER 1 (FROM 8FJ-001008 AND UP)
-
38FA-77185-00-00 PLATE 1PLATE 1
-
48FA-77186-00-00 PLATE 2PLATE 2
-
597707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
698907-06014-00 SCREW, BINDSCREW, BIND
-
78FJ-K7210-10-00 WINDSHIELD COMP. FOR TEAM YAMAHA BLUE/WHITE AND HEAT REDWINDSHIELD COMP. FOR TEAM YAMAHA BLUE/WHITE AND HEAT RED
-
78FJ-K7210-00-00 WINDSHIELD COMP. FOR LIQUID SILVERWINDSHIELD COMP. FOR LIQUID SILVER
-
88FJ-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
990150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1090179-05523-00 NUTNUT
-
118FA-77231-A0-33 FAIRING (BLACK) FOR TEAM TAMAHA BLUE/WHITE AND LIQUID SILVERFAIRING (BLACK) FOR TEAM TAMAHA BLUE/WHITE AND LIQUID SILVER
-
118FA-77231-A0-EY FAIRING (HEAT RED)FAIRING (HEAT RED)
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
148FA-77214-00-00 TRIM, LOWERTRIM, LOWER
-
158FA-77215-00-00 TRIM 3TRIM 3
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
