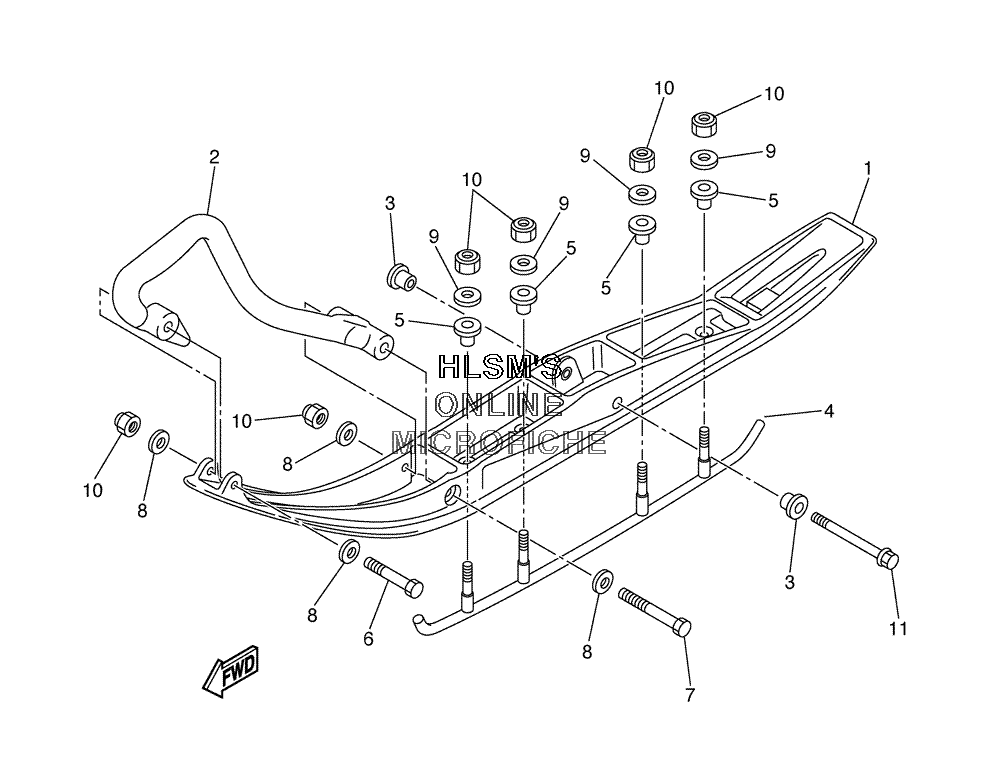

SUSPENSION - ALTERNATE SKI для Yamaha RS VECTOR MOUNTAIN - 2005 года выпуска
-
№АртикулНазвание
-
18FE-F3711-00-00 SKI 1 (OPT)SKI 1 (OPT)
-
28EK-F3712-00-00 REINFORCEMENT, HEAD (OPT) (BLUE)REINFORCEMENT, HEAD (OPT) (BLUE)
-
28FB-F3712-00-00 REINFORCEMENT, HEAD (OPT) (RED)REINFORCEMENT, HEAD (OPT) (RED)
-
38EX-F3754-00-00 COLLAR, 1 (OPT)COLLAR, 1 (OPT)
-
48EN-F3731-00-00 RUNNER 1 (OPT)RUNNER 1 (OPT)
-
58EK-F3751-00-00 BUSH, SKI 1 (OPT)BUSH, SKI 1 (OPT)
-
69702M-08055-00 BOLT (OPT)BOLT (OPT)
-
79702M-08100-00 BOLT (OPT)BOLT (OPT)
-
890201-08784-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
990201-086P8-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
109570M-08300-00 NUT, NYLON (OPT)NUT, NYLON (OPT)
-
1190105-10070-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
