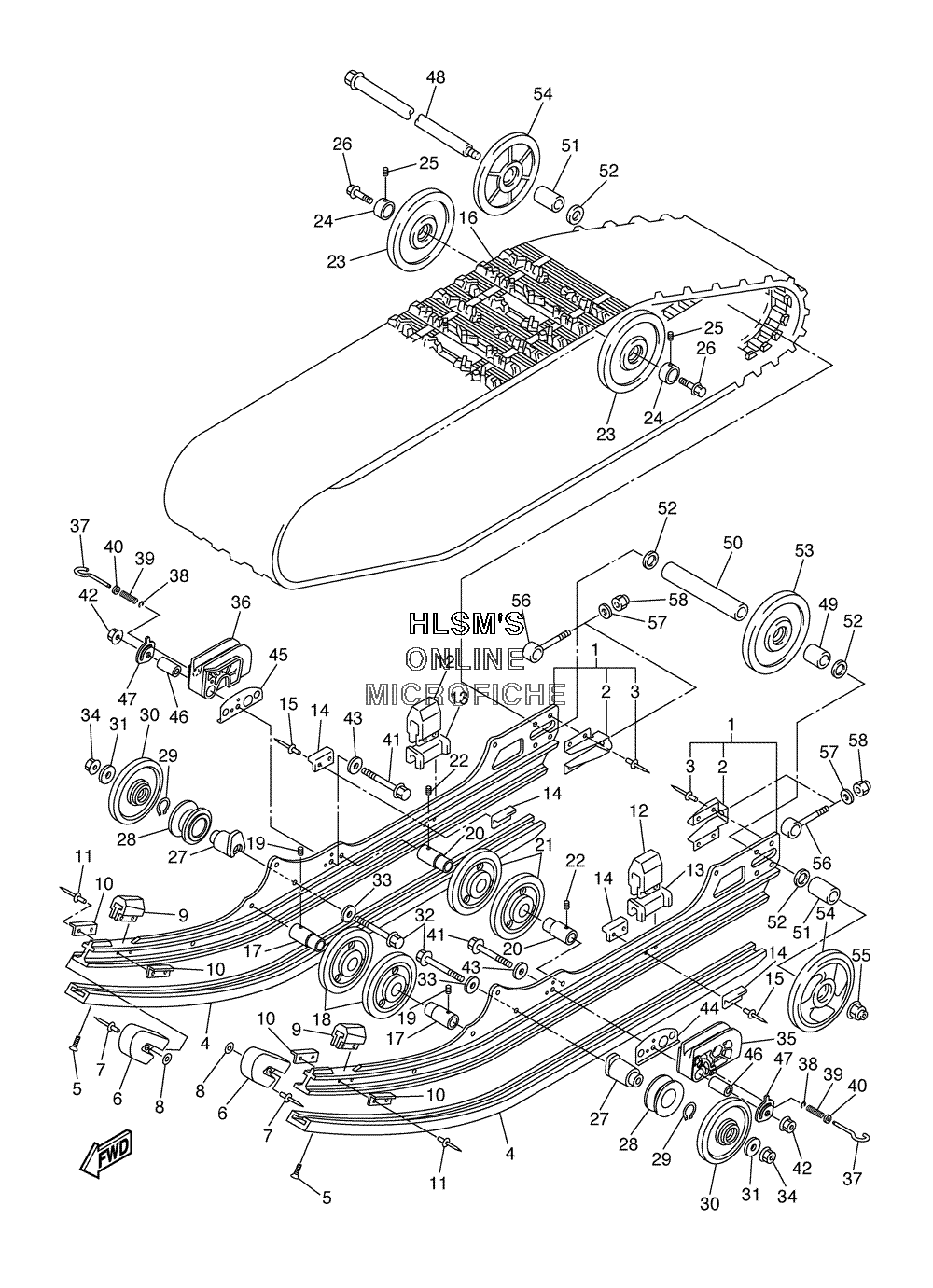

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE 2-PASS - 2005 года выпуска
-
№АртикулНазвание
-
18ET-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48ET-47421-00-00 RUNNER, SLIDING 144 BLACKRUNNER, SLIDING 144 BLACK
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLINDRIVET, BLIND
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168ET-47110-00-00 TRACK ASSY.TRACK ASSY.
-
178ES-47319-00-00 COLLARCOLLAR
-
188ES-47310-10-00 SUSPENSION WHEEL ASSY.SUSPENSION WHEEL ASSY.
-
1990113-06039-00 BOLT, SETBOLT, SET
-
208ES-47319-00-00 COLLARCOLLAR
-
218ES-47310-10-00 SUSPENSION WHEEL ASSY.SUSPENSION WHEEL ASSY.
-
2290113-06039-00 BOLT, SETBOLT, SET
-
238CR-47550-00-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
248ES-47365-00-00 COLLAR 1COLLAR 1
-
2590113-06039-00 BOLT, SETBOLT, SET
-
2690109-10771-00 BOLTBOLT
-
278ES-47419-10-00 BRACKET 7BRACKET 7
-
288ET-47446-00-00 HOOK 1HOOK 1
-
2999009-35400-00 CIRCLIPCIRCLIP
-
308ES-47310-00-00 SUSPENSION WHEEL ASSY.SUSPENSION WHEEL ASSY.
-
3190201-104A7-00 WASHER, PLATEWASHER, PLATE
-
3295817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
358ET-47435-10-00 SPRING, OUTSIDE 1SPRING, OUTSIDE 1
-
368ET-47436-10-00 SPRING, OUTSIDE 2SPRING, OUTSIDE 2
-
378ET-47449-00-00 PIN 1PIN 1
-
3899001-04600-00 CIRCLIPCIRCLIP
-
3990501-08665-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4090387-061Y1-00 COLLARCOLLAR
-
4195817-10065-00 BOLT, FLANGEBOLT, FLANGE
-
4295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
4390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
448ET-47374-10-00 WASHER 1WASHER 1
-
458ET-47375-10-00 WASHER 2WASHER 2
-
4690387-106K8-00 COLLARCOLLAR
-
478ET-47347-00-00 WASHER, LOCKWASHER, LOCK
-
488L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4990387-20015-00 COLLARCOLLAR
-
5090387-20016-00 COLLARCOLLAR
-
5190387-20019-00 COLLARCOLLAR
-
5290201-205R6-00 WASHER, PLATEWASHER, PLATE
-
538CR-47550-10-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
548EK-47550-10-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
5595607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
568DM-47479-00-00 COLLAR 3COLLAR 3
-
5792907-10600-00 WASHER, PLATEWASHER, PLATE
-
5895707-10300-00 NUT, FLANGENUT, FLANGE
