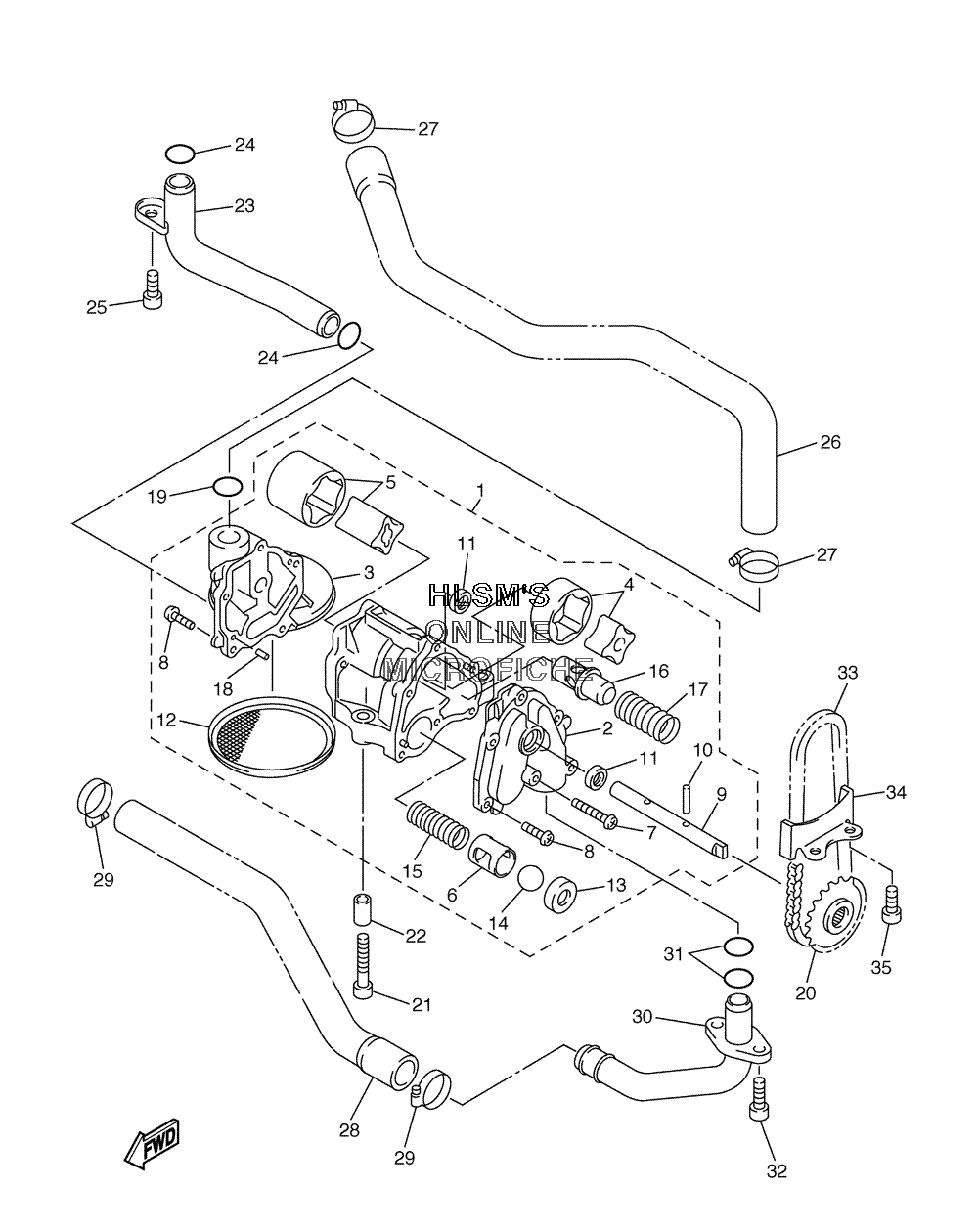

OIL PUMP ASSY для Yamaha RX-1 ER LE - 2005 года выпуска
-
№АртикулНазвание
-
18FA-13300-10-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
28FA-13316-10-00 ...COVER, PUMP...COVER, PUMP
-
38FA-13356-10-00 ...COVER, PUMP 2...COVER, PUMP 2
-
48FA-13310-00-00 ...ROTOR ASSY. 1...ROTOR ASSY. 1
-
58FA-13320-00-00 ...ROTOR ASSY. 2...ROTOR ASSY. 2
-
68FA-13284-00-00 ...PIPE...PIPE
-
798517-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
890167-05004-00 ...SCREW, TAPPING...SCREW, TAPPING
-
98FA-13314-10-00 ...SHAFT, PUMP...SHAFT, PUMP
-
1093603-17070-00 ...PIN, DOWEL...PIN, DOWEL
-
1193104-11038-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
128FA-13411-00-00 ...STRAINER, OIL...STRAINER, OIL
-
135PX-13113-00-00 ...SEAT, CHECK BALL...SEAT, CHECK BALL
-
1493505-08030-00 ...BALL 5/8...BALL 5/8
-
1590501-105L2-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
162H7-13483-00-00 ...PLUNGER, RELIEF...PLUNGER, RELIEF
-
1790501-18499-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1893603-07073-00 ...PIN, DOWEL...PIN, DOWEL
-
1993210-18322-00 O-RINGO-RING
-
208FA-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
2191317-06035-00 BOLTBOLT
-
2299530-08012-00 PIN, DOWELPIN, DOWEL
-
238FA-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2493210-16629-00 O-RINGO-RING
-
2591317-06012-00 BOLTBOLT
-
268FA-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
2790467-22097-00 CLIPCLIP
-
288FA-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
2990450-28014-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
308FA-1311A-00-00 CONNECTOR, SUCTION PIPE 2CONNECTOR, SUCTION PIPE 2
-
3193210-16629-00 O-RINGO-RING
-
3291317-06014-00 BOLTBOLT
-
3394580-25058-00 CHAIN (DID25 58L)CHAIN (DID25 58L)
-
348FA-13898-00-00 HOLDERHOLDER
-
3591317-06012-00 BOLTBOLT
