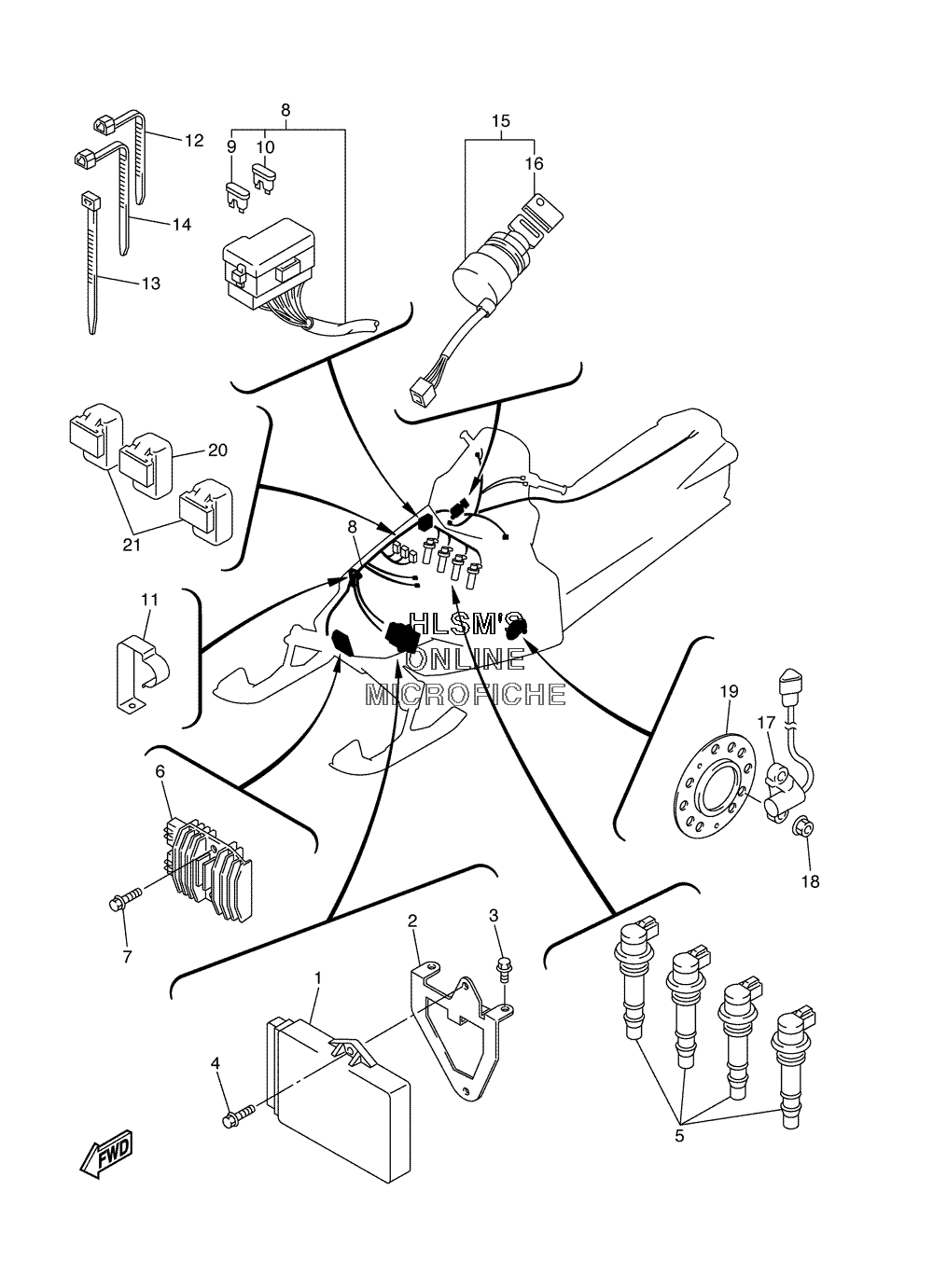

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha RX-1 MOUNTAIN LE - 2005 года выпуска
-
№АртикулНазвание
-
18FG-85540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
28FA-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
395827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
495827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-82310-01-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
65JW-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
795807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
88FW-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
95JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
118FA-8255V-00-00 PLATE, COVERPLATE, COVER
-
1290464-15195-00 CLAMPCLAMP
-
1390464-13073-00 CLAMPCLAMP
-
1490464-13077-00 CLAMPCLAMP
-
158FA-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
16526-82579-00-00 ...CAP, KEY...CAP, KEY
-
178EK-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1895707-08300-00 NUT, NYLONNUT, NYLON
-
198EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
205DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
218DM-81950-00-00 RELAY ASSY.RELAY ASSY.
