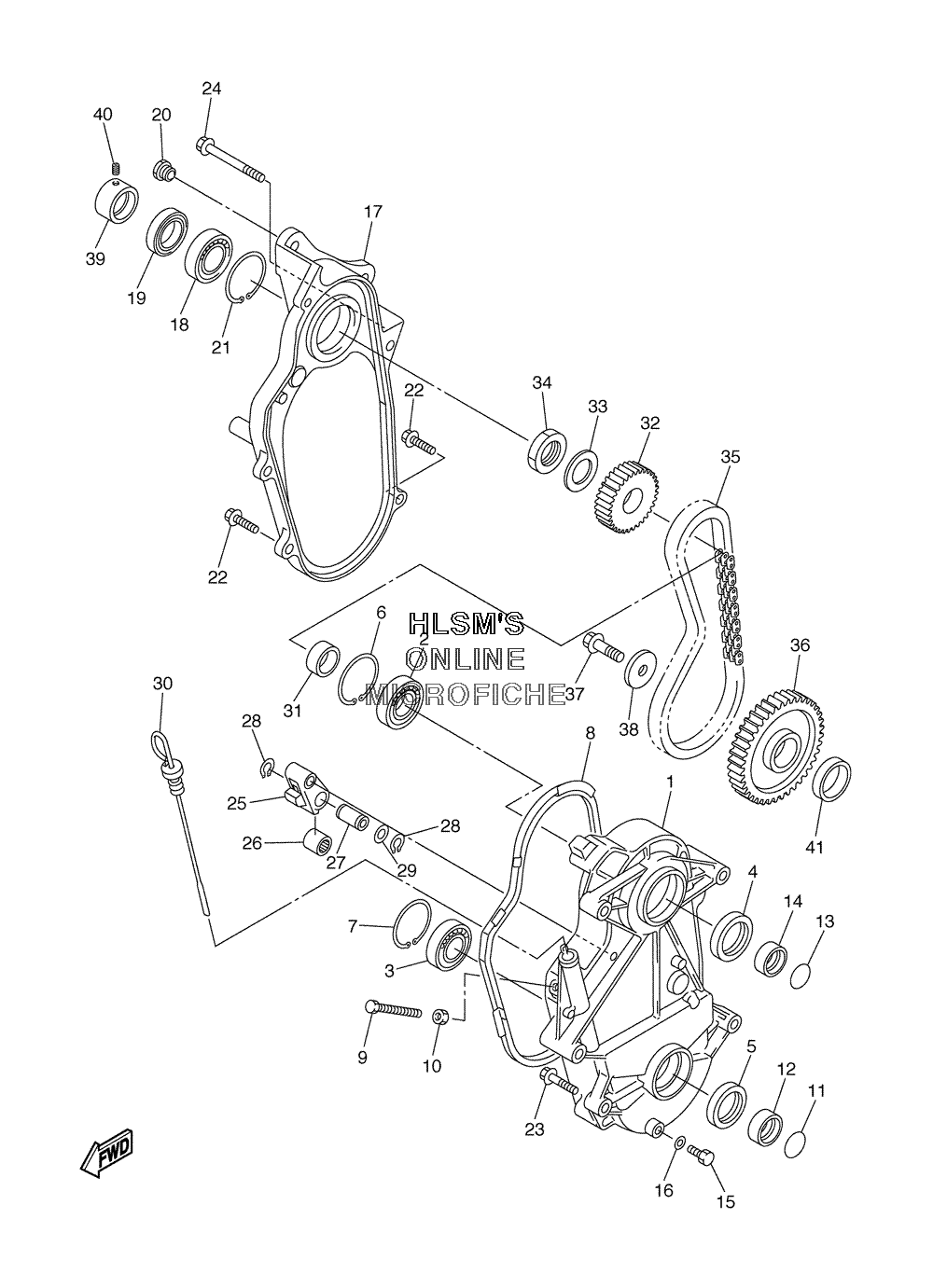

CHAINCASE ASSY для Yamaha RX-1 - 2005 года выпуска
-
№АртикулНазвание
-
18FA-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARING (B6206C3)BEARING (B6206C3)
-
393306-20592-00 BEARINGBEARING
-
493102-40014-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88FA-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095307-10600-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1393210-29282-00 O-RINGO-RING
-
1490387-30004-00 COLLARCOLLAR
-
1597007-08014-00 BOLTBOLT
-
1690210-08017-00 WASHER, SEALWASHER, SEAL
-
178ES-47543-10-00 CAP, HOUSINGCAP, HOUSING
-
1893306-20511-00 BEARINGBEARING
-
1993102-35010-00 OIL SEALOIL SEAL
-
2090179-10679-00 NUTNUT
-
2199009-52500-00 CIRCLIPCIRCLIP
-
2295827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2395827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2495827-10090-00 BOLT, FLANGEBOLT, FLANGE
-
258ES-47613-00-00 HOLDERHOLDER
-
2693311-32685-00 BEARINGBEARING
-
2790387-22005-00 COLLARCOLLAR
-
2899009-26400-00 CIRCLIPCIRCLIP
-
2990201-266P2-00 WASHER, PLATEWASHER, PLATE
-
308FA-47546-00-00 LEVEL, OILLEVEL, OIL
-
3190387-30005-00 COLLARCOLLAR
-
328FA-17682-40-00 SPROCKET, CHAIN DRIVE (24T)SPROCKET, CHAIN DRIVE (24T)
-
3390208-28001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3490170-28009-00 NUTNUT
-
3594890-09070-00 CHAIN (70L)CHAIN (70L)
-
368DW-47587-81-00 SPROCKET, CHAIN DRIVEN (38T)SPROCKET, CHAIN DRIVEN (38T)
-
3790105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
3890201-10321-00 WASHER, PLATEWASHER, PLATE
-
3990387-25009-00 COLLARCOLLAR
-
4090113-06064-00 BOLT, SETBOLT, SET
-
4190387-2508B-00 COLLARCOLLAR
