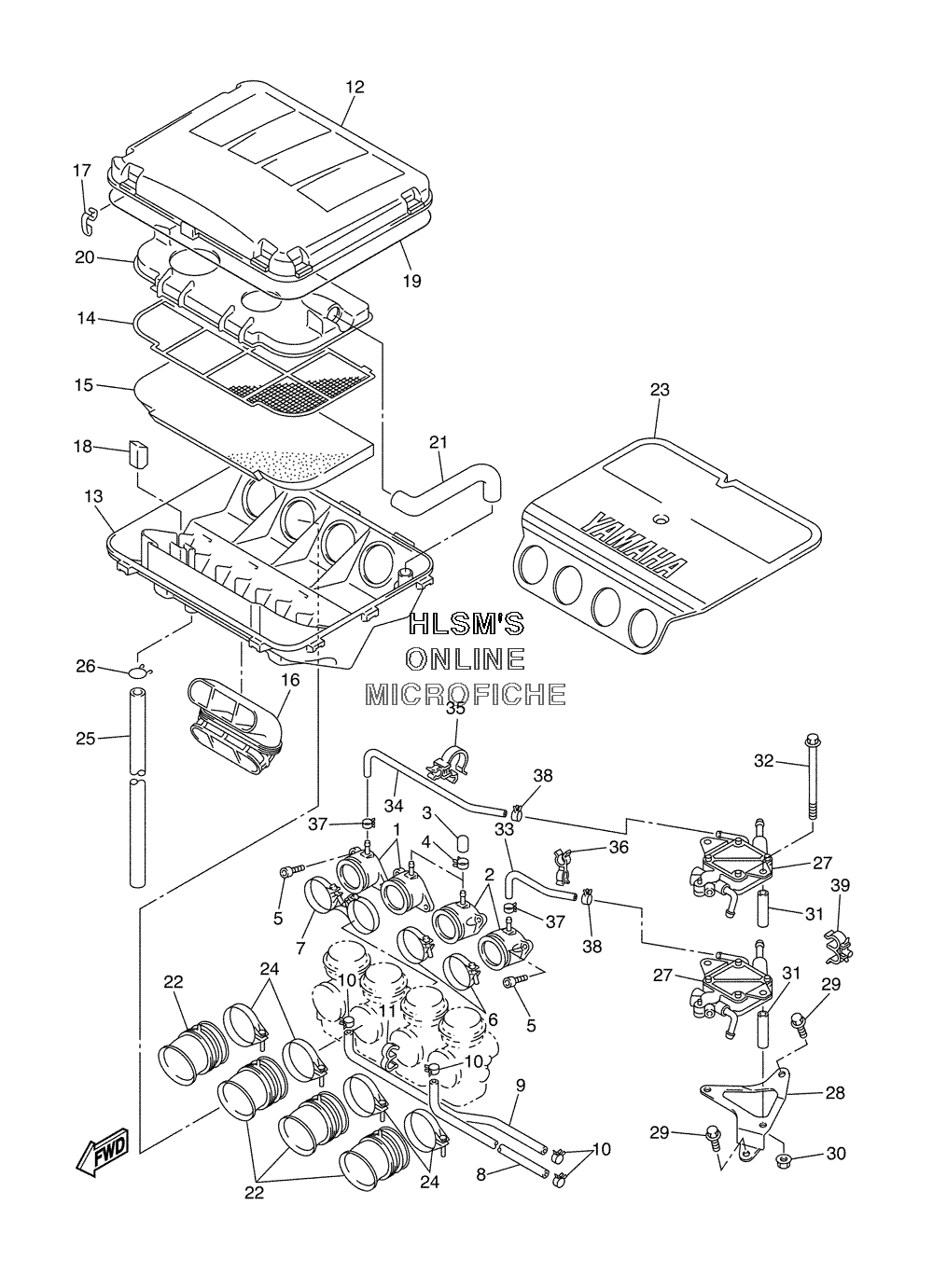

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha RX WARRIOR LE - 2005 года выпуска
-
№АртикулНазвание
-
18FA-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
28FA-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
316G-13569-00-00 PLUG, BLINDPLUG, BLIND
-
490467-10039-00 CLIP, SCISSORCLIP, SCISSOR
-
591317-06020-00 BOLTBOLT
-
65LV-13474-00-00 BANDBAND
-
78FA-13474-00-00 BANDBAND
-
88FA-14294-00-00 HOSEHOSE
-
98FA-14298-00-00 PIPEPIPE
-
1090467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
1190464-09M31-00 CLAMPCLAMP
-
128FA-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
138FA-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
148FA-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
158FA-14451-01-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
168FA-14437-00-00 DUCTDUCT
-
178FA-14436-00-00 HOOKHOOK
-
188FA-14425-00-00 DAMPER 1DAMPER 1
-
198FA-14452-00-00 SEALSEAL
-
208FA-14417-00-00 COVER 1COVER 1
-
218FA-14419-00-00 PIPEPIPE
-
228FA-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
238FA-14283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
2490450-63096-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
258FA-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2690467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
278FA-13910-00-00 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
288FA-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2995827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3095707-06500-00 NUT, FLANGENUT, FLANGE
-
3190387-065V0-00 COLLARCOLLAR
-
3295027-06085-00 BOLT, FLANGEBOLT, FLANGE
-
338FA-13895-00-00 HOSE, AIRHOSE, AIR
-
348FA-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
3590464-26245-00 CLAMPCLAMP
-
3690464-12182-00 CLAMPCLAMP
-
3790467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
3890467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
3990464-11007-00 CLAMPCLAMP
