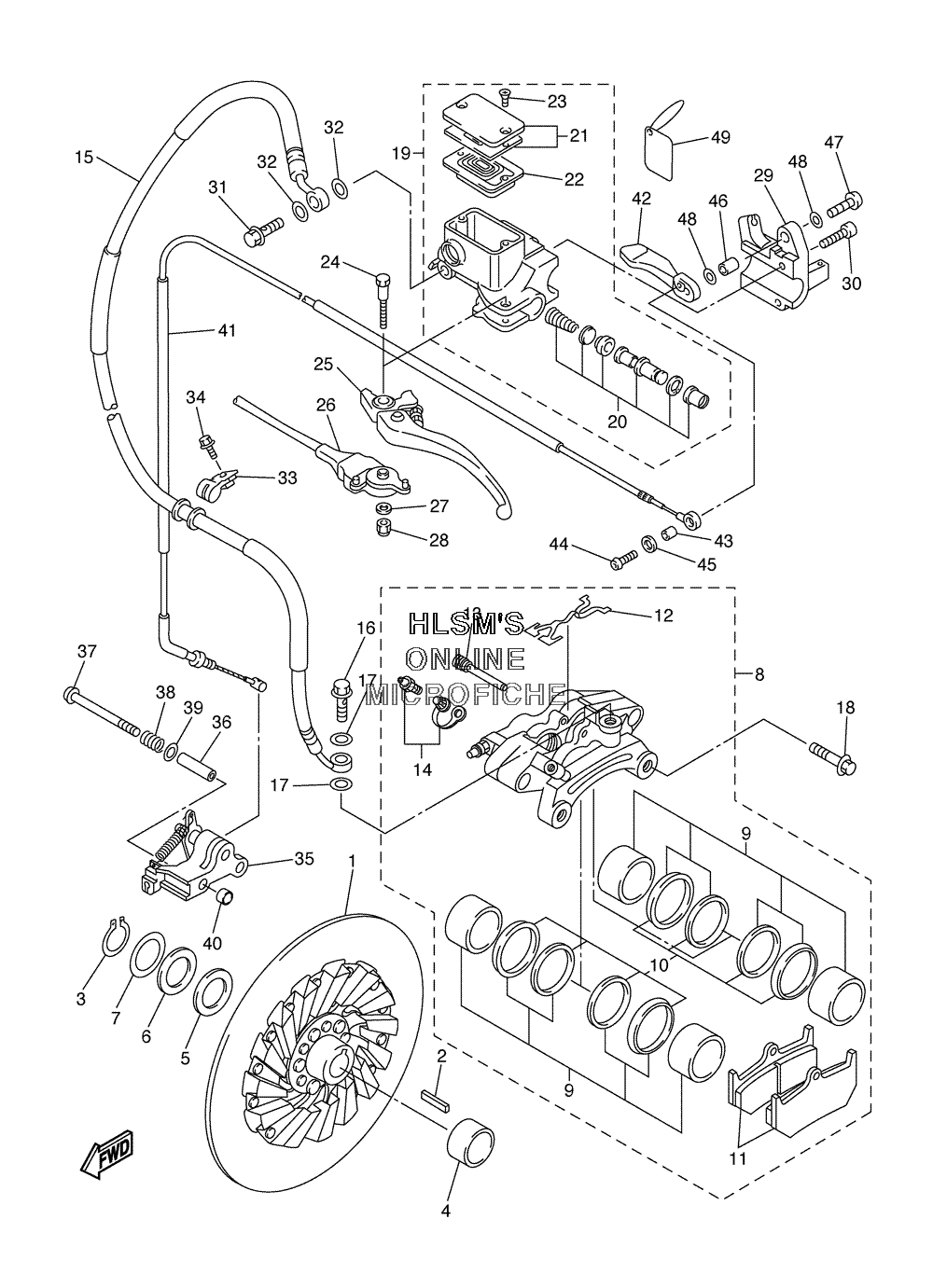

BRAKE ASSY для Yamaha RX WARRIOR - 2005 года выпуска
-
№АртикулНазвание
-
18FU-2581T-00-00 DISK BRAKE ASSY.DISK BRAKE ASSY.
-
290282-07002-00 KEY, STRAIGHTKEY, STRAIGHT
-
399009-24400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
490387-25012-00 COLLARCOLLAR
-
590387-25011-00 COLLARCOLLAR
-
690201-25527-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
790201-252F1-00 WASHER, PLATE (T0.5)WASHER, PLATE (T0.5)
-
88FU-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
98FU-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
103JD-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
118FU-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
128FU-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
138FU-25924-00-00 ...PIN, PAD...PIN, PAD
-
148CR-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
158FU-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1690401-10159-00 BOLT, UNIONBOLT, UNION
-
1790201-10118-00 WASHER, PLATEWASHER, PLATE
