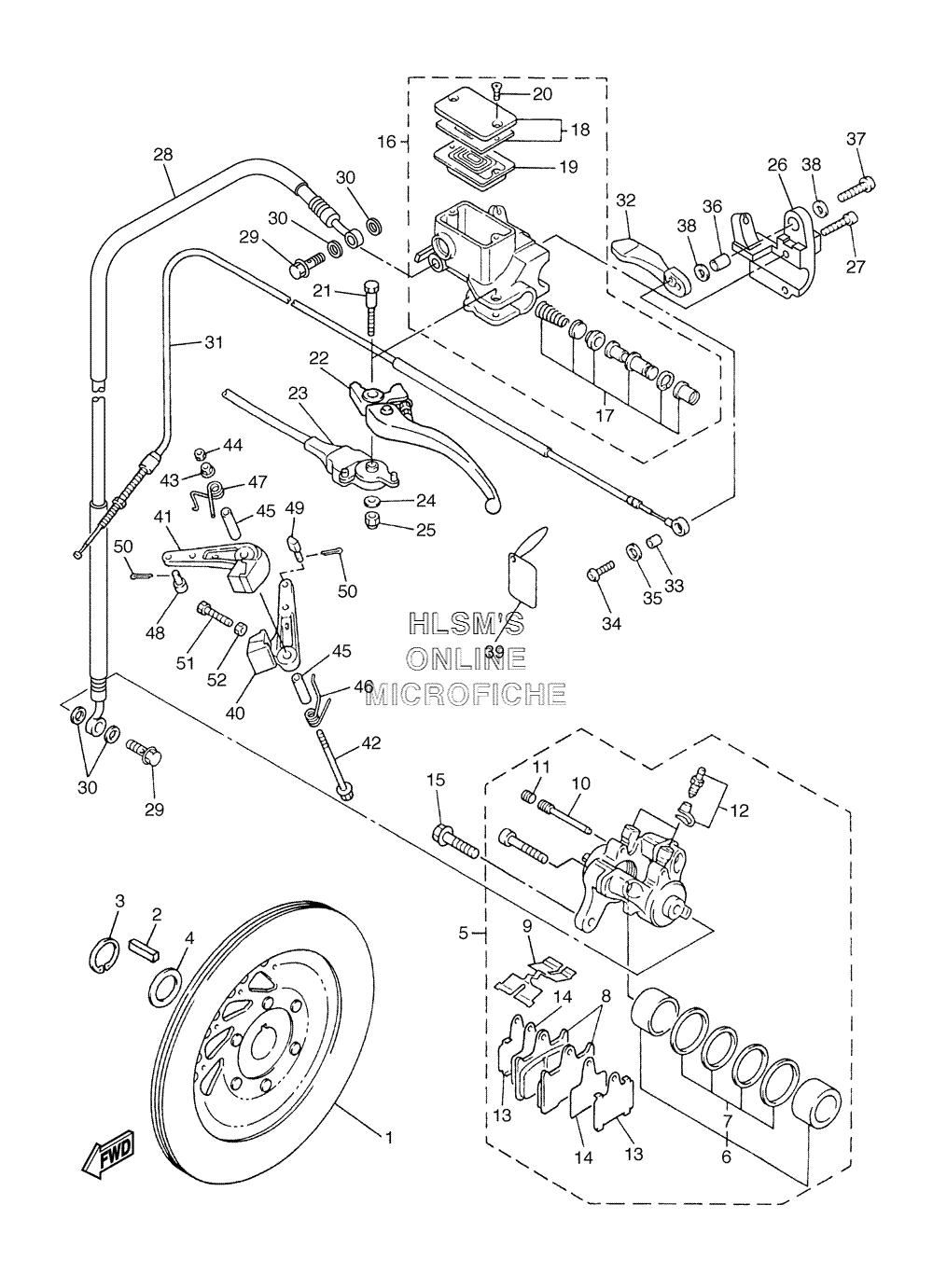

BRAKE ASSY для Yamaha SX VIPER MOUNTAIN - 2005 года выпуска
-
№АртикулНазвание
-
18DN-2581T-00-00 DISK BRAKE ASSY.DISK BRAKE ASSY.
-
290281-07004-00 KEY, SLIDINGKEY, SLIDING
-
393410-27080-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
490201-270U5-00 WASHER, PLATEWASHER, PLATE
-
58DF-2580T-01-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
68CR-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
78CR-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
88DF-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
98CR-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
108CR-25924-00-00 ...PIN, PAD...PIN, PAD
-
118CR-25926-00-00 ...BOLT...BOLT
-
128CR-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
138DF-2582F-00-00 ...RETAINER...RETAINER
-
148DF-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1590105-10634-00 BOLT, FLANGEBOLT, FLANGE
-
168EN-W2587-00-00 MASTER CYLINDER SUB ASSY.MASTER CYLINDER SUB ASSY.
-
178CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
188CR-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
1955U-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
2098706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
218CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
228CR-83912-00-00 LEVER 1LEVER 1
-
228DN-83912-00-00 LEVER 1, ADJUSTABLELEVER 1, ADJUSTABLE
-
238CR-82530-01-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
248CR-8398X-00-00 WASHER, PLAINWASHER, PLAIN
-
2595707-05300-00 NUT, FLANGENUT, FLANGE
-
268FA-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
2791316-06022-00 BOLTBOLT
-
288EN-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
2990401-10159-00 BOLT, UNIONBOLT, UNION
-
3090201-10118-00 WASHER, PLATEWASHER, PLATE
-
318EN-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
328CR-83922-00-00 LEVER RLEVER R
-
3390387-06043-00 COLLARCOLLAR
-
3492017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3590201-06050-00 WASHER, PLATEWASHER, PLATE
-
3690387-081M9-00 COLLARCOLLAR
-
3792017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3890201-08403-00 WASHER, PLATEWASHER, PLATE
-
398CR-23496-00-00 TAG, CAUTIONTAG, CAUTION
-
408CR-25730-00-00 CALIPER BODY COMP.1CALIPER BODY COMP.1
-
418CR-25740-00-00 CALIPER BODY COMP. 2CALIPER BODY COMP. 2
-
4290105-08094-00 BOLT, FLANGEBOLT, FLANGE
-
4395707-08500-00 NUT, FLANGENUT, FLANGE
-
4495307-08700-00 NUTNUT
-
4590387-084R5-00 COLLARCOLLAR
-
4690508-291B2-00 SPRING, TORSIONSPRING, TORSION
-
4790508-291B1-00 SPRING, TORSIONSPRING, TORSION
-
4890249-06009-00 PINPIN
-
4990249-06012-00 PINPIN
-
5091490-20015-00 PIN, COTTERPIN, COTTER
-
5190101-06288-00 BOLTBOLT
-
5295307-06700-00 NUTNUT
