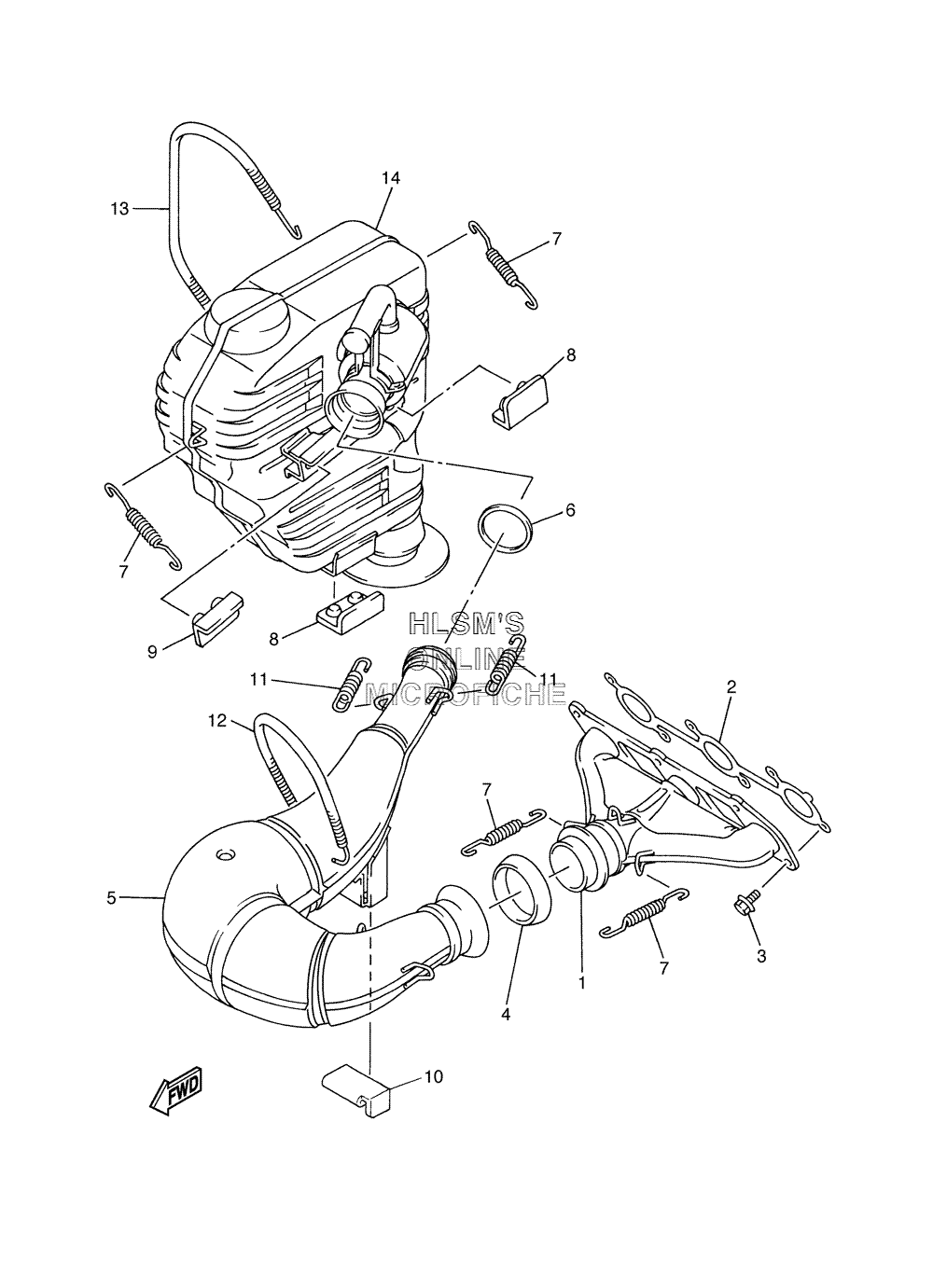

EXHAUST SYSTEM для Yamaha VENTURE 600 2-PASS - 2005 года выпуска
-
№АртикулНазвание
-
18CH-14610-00-00 EXHAUST PIPE ASSY. LEXHAUST PIPE ASSY. L
-
28CH-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
395027-08020-00 BOLT, FLANGEBOLT, FLANGE
-
48CA-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
58CH-14620-20-00 EXHAUST PIPE ASSY. 2EXHAUST PIPE ASSY. 2
-
68AB-14714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
790506-20272-00 SPRING, TENSIONSPRING, TENSION
-
883R-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
98CR-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
108CR-14738-00-00 PROTECTER, MUFFLER 3PROTECTER, MUFFLER 3
-
1190506-20093-00 SPRING, TENSIONSPRING, TENSION
-
1290506-16497-00 SPRING, TENSIONSPRING, TENSION
-
1390507-16046-00 SPRING, TENSIONSPRING, TENSION
-
148CH-14640-20-00 SECOND SILENCER, MUFFLERSECOND SILENCER, MUFFLER
