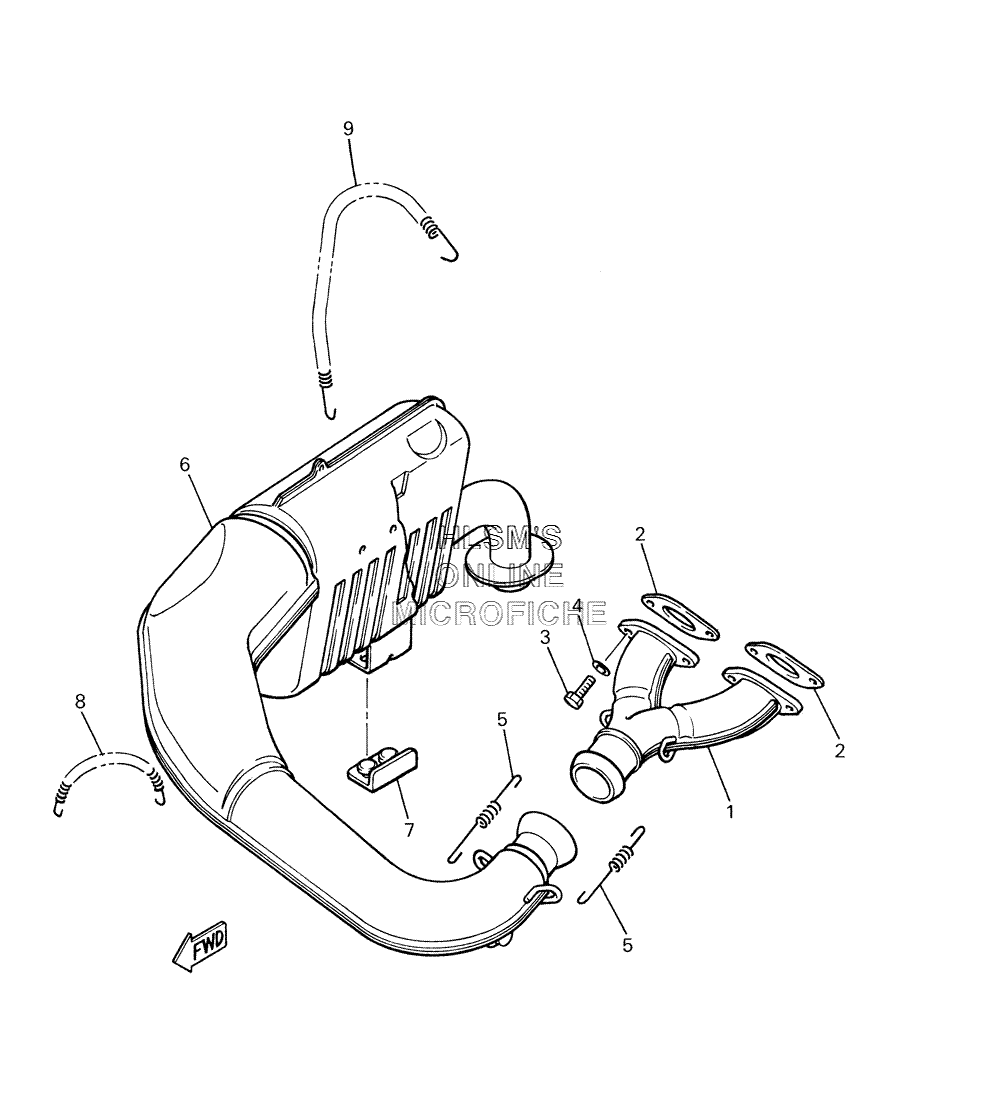

EXHAUST SYSTEM для Yamaha VK 540 III 2-PASS - 2005 года выпуска
-
№АртикулНазвание
-
18K4-14610-00-00 EXHAUST PIPE ASSY. LEXHAUST PIPE ASSY. L
-
282M-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
397017-08020-00 BOLTBOLT
-
492907-08600-00 WASHER, PLATEWASHER, PLATE
-
590506-20272-00 SPRING, TENSIONSPRING, TENSION
-
683R-14710-04-00 MUFFLER ASSY. 1MUFFLER ASSY. 1
-
783R-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
890507-16045-00 SPRING, TENSIONSPRING, TENSION
-
990507-16046-00 SPRING, TENSIONSPRING, TENSION
Все узлы модели:
- AIR SHROUD W/ FAN
- BELT GUARD
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- • EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - STEERING GATE
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ TRACK
- SUSPENSION - RAIL ASSY EXTENSIONS
- SUSPENSION - TORQUE ARM ASSY W/ RAIL ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
