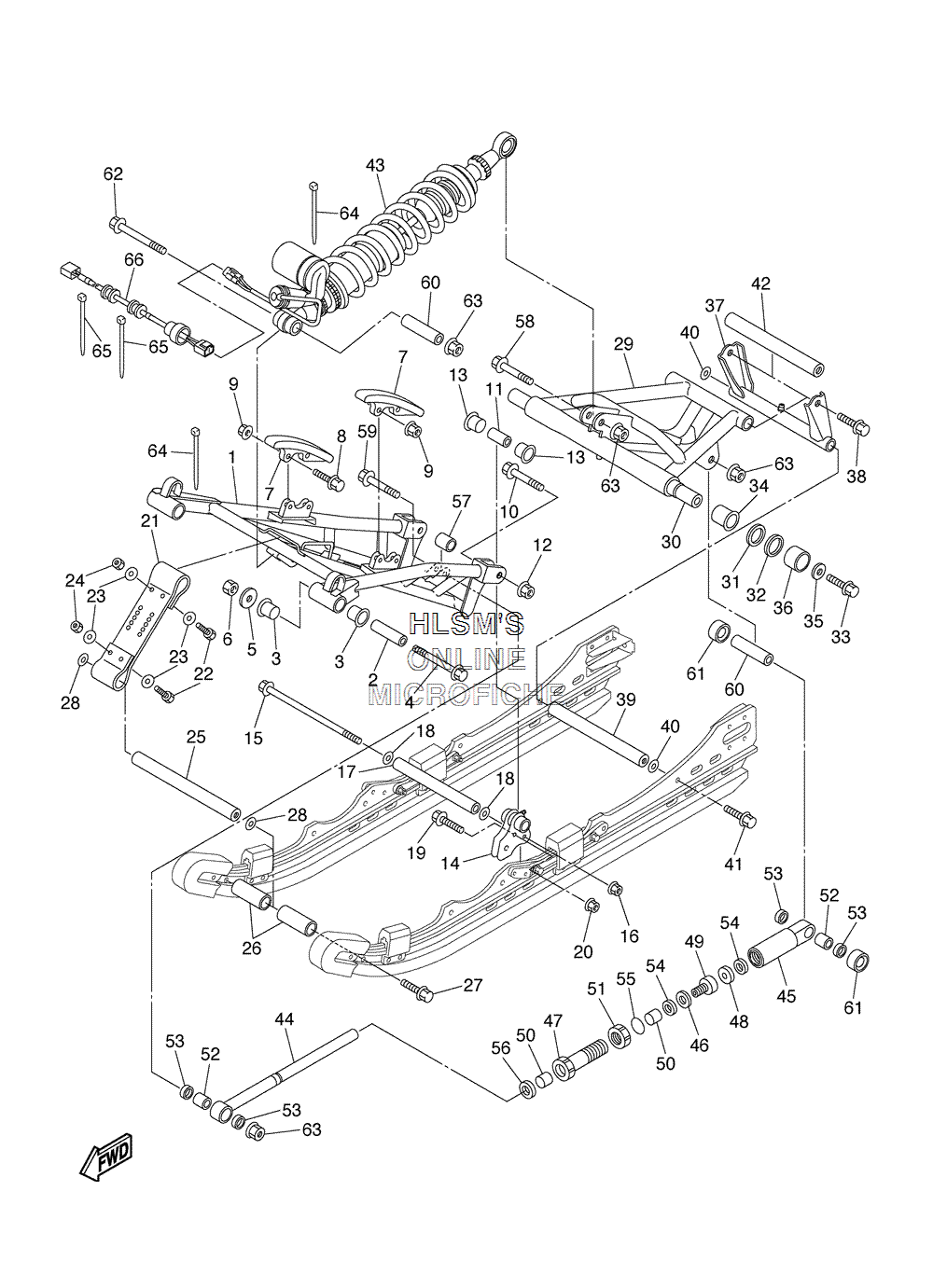

SUSPENSION - TORQUE ARM ASSY для Yamaha APEX GT - 2006 года выпуска
-
№АртикулНазвание
-
18FT-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-104A7-00 WASHER, PLATEWASHER, PLATE
-
690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
995607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
1090105-10090-00 BOLT, FLANGEBOLT, FLANGE
-
1190387-10033-00 COLLARCOLLAR
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390386-15002-00 BUSHBUSH
-
148FU-47415-10-00 BRACKET 1BRACKET 1
-
1590105-08119-00 BOLT, FLANGEBOLT, FLANGE
-
1695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790387-08037-00 COLLARCOLLAR
-
1890201-08649-00 WASHER, PLATEWASHER, PLATE
-
1995817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
218FU-47495-00-00 STOPPER 1STOPPER 1
-
2297007-06025-00 BOLTBOLT
-
2390201-06747-00 WASHER, PLATEWASHER, PLATE
-
2495707-06300-00 NUT, NYLONNUT, NYLON
-
258FU-47485-00-00 SHAFT 3SHAFT 3
-
2690387-19003-00 COLLARCOLLAR
-
2790105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-10126-00 WASHER, PLATEWASHER, PLATE
-
298FU-47332-10-00 ARM, PIVOT 2ARM, PIVOT 2
-
308FU-47475-00-00 SHAFT 2SHAFT 2
-
3190201-251G8-00 WASHER, PLATEWASHER, PLATE
-
3290201-250T6-00 WASHER, PLATEWASHER, PLATE
-
3390105-10146-00 BOLT, FLANGEBOLT, FLANGE
-
3490381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3590201-103U4-00 WASHER, PLATEWASHER, PLATE
-
3690387-25005-00 COLLARCOLLAR
-
378FU-47417-10-00 BRACKET 3BRACKET 3
-
3890105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
398FU-47485-00-00 SHAFT 3SHAFT 3
-
4090201-10136-00 WASHER, PLATEWASHER, PLATE
-
4190105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
428FU-47486-00-00 SHAFT 4SHAFT 4
-
438GD-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
448FR-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
458FU-4745C-10-00 ROD, CONTROL 3ROD, CONTROL 3
-
4690202-16229-00 WASHER, PLATEWASHER, PLATE
-
478FU-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
488FU-47384-00-00 WASHER (L=7.5) (OPT)WASHER (L=7.5) (OPT)
-
488FU-47384-10-00 WASHER (L=5.0) (OPT)WASHER (L=5.0) (OPT)
-
488FU-47384-20-00 WASHER (L=10) (STD)WASHER (L=10) (STD)
-
498FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5090384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
518FU-47368-00-00 NUTNUT
-
5293315-31758-00 BEARINGBEARING
-
5393109-17071-00 OIL SEALOIL SEAL
-
548FU-47466-00-00 SPACERSPACER
-
5593210-347A6-00 O-RINGO-RING
-
56C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
5790387-1012A-00 COLLARCOLLAR
-
5895817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
5990105-102A6-00 BOLT, FLANGEBOLT, FLANGE
-
6090387-10034-00 COLLARCOLLAR
-
618FU-47341-00-00 SPACERSPACER
-
6295817-10070-00 BOLT, FLANGEBOLT, FLANGE
-
6395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6490465-13152-00 CLAMPCLAMP
-
6590464-16061-00 CLAMPCLAMP
-
668GD-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
