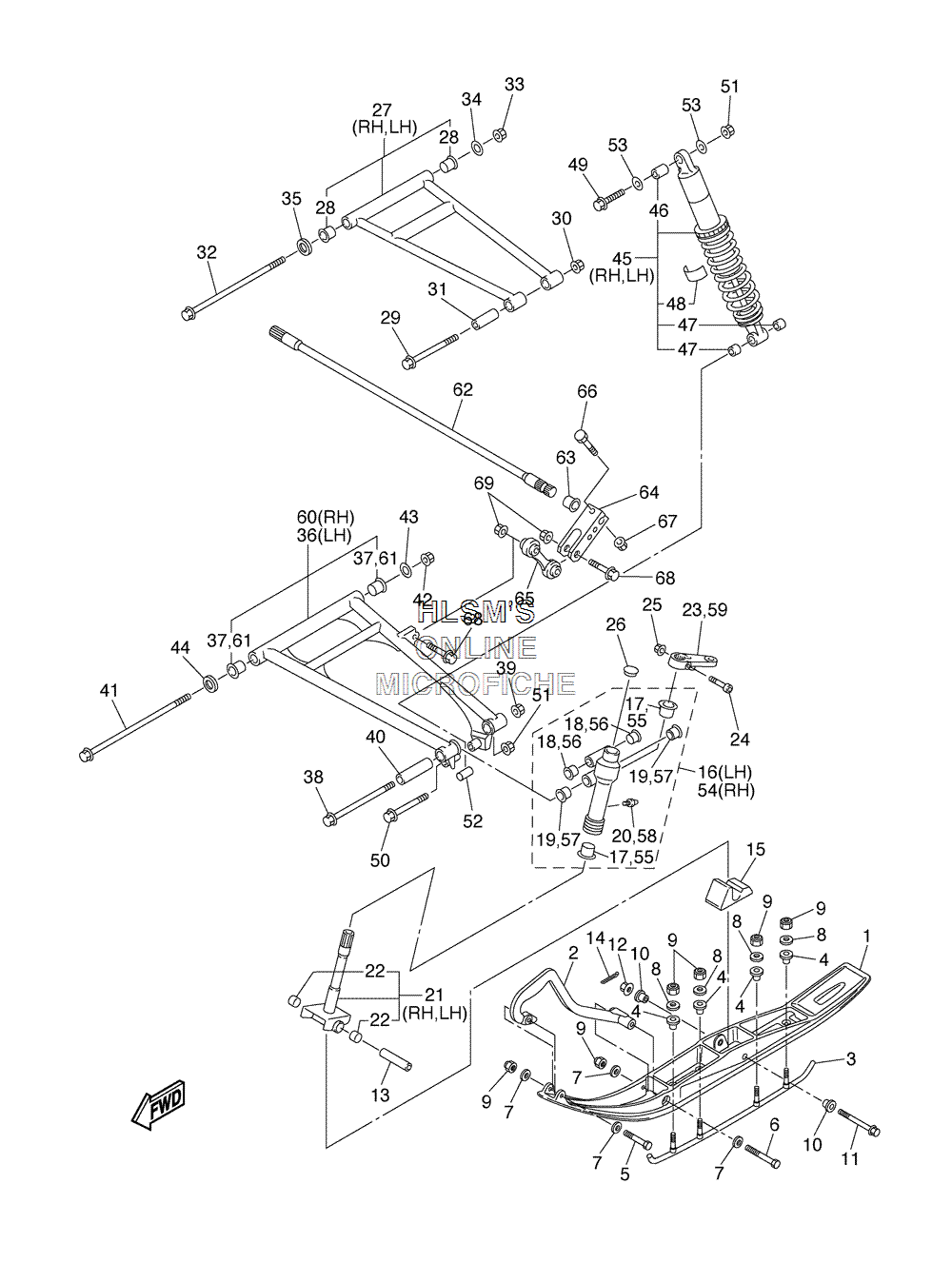

SUSPENSION - FRONT W/ SKI ASSY для Yamaha APEX RTX W/ REVERSE - 2006 года выпуска
-
№АртикулНазвание
-
18ES-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 HANDLE PLASTIC FOR BLUEHANDLE PLASTIC FOR BLUE
-
28DM-F3712-00-00 HANDLE PLASTIC FOR REDHANDLE PLASTIC FOR RED
-
38EK-F3731-00-00 RUNNER 1RUNNER 1
-
48EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
59702M-08055-00 BOLTBOLT
-
69702M-08100-00 BOLTBOLT
-
790201-08784-00 WASHER, PLATEWASHER, PLATE
-
890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
99570M-08300-00 NUT, NYLONNUT, NYLON
-
108EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1790381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1890381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2093700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
218ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2490110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
263YK-22472-40-00 CAP, CASECAP, CASE
-
278FR-23540-30-00 FRONT UPPER ARM COMP. (LEFT) FOR BLUEFRONT UPPER ARM COMP. (LEFT) FOR BLUE
-
278FR-23540-10-00 FRONT UPPER ARM COMP. (LEFT) FOR REDFRONT UPPER ARM COMP. (LEFT) FOR RED
-
278FR-23540-10-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
2890381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2990105-10N56-00 BOLT, FLANGEBOLT, FLANGE
-
3095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190387-10N58-00 COLLARCOLLAR
-
3290105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3590209-15N50-00 WASHERWASHER
-
368ES-23570-30-00 FRONT LOWER ARM COMP. (LEFT) FOR BLUEFRONT LOWER ARM COMP. (LEFT) FOR BLUE
-
368ES-23570-10-00 FRONT LOWER ARM COMP. (LEFT) FOR REDFRONT LOWER ARM COMP. (LEFT) FOR RED
-
368ES-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
3790381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
3890105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
3995607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4090387-12N54-00 COLLARCOLLAR
-
4190105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4490209-15N50-00 WASHERWASHER
-
458FR-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
458FP-2376A-FS-00 SHOCK ABSORBER, FOXSHOCK ABSORBER, FOX
-
468FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
4790384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
484AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
4990105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5090105-10392-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5290387-10N59-00 COLLARCOLLAR
-
5390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
548ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
5590381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
5690381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
5790381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
598FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
608ES-23580-30-00 FRONT LOWER ARM COMP. (RIGHT) FOR BLUEFRONT LOWER ARM COMP. (RIGHT) FOR BLUE
-
608ES-23580-10-00 FRONT LOWER ARM COMP. (RIGHT) FOR REDFRONT LOWER ARM COMP. (RIGHT) FOR RED
-
608ES-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
6190381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
628FG-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
638FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
648FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
658ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6690101-06765-00 BOLTBOLT
-
6795604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6895814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
6995604-08200-00 NUT, U FLANGENUT, U FLANGE
