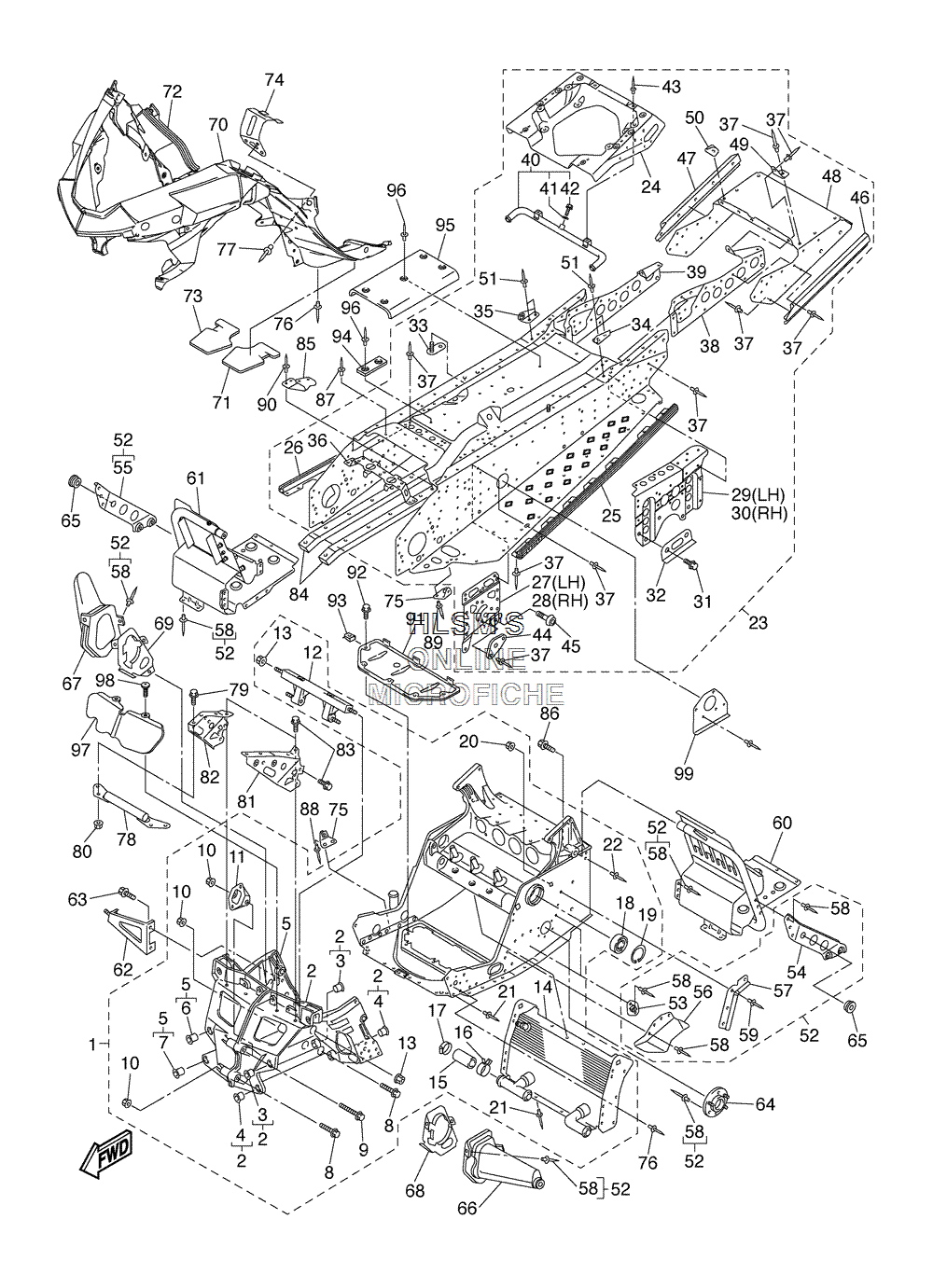

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha ATTAK - 2006 года выпуска
-
№АртикулНазвание
-
18FP-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
2290267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
238FT-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
248FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
258FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
268FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
278FU-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
288FU-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
298FT-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
308FT-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
3195814-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
328FU-21988-01-00 ...PATCH 8...PATCH 8
-
338CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
348FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
358FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
368FA-2194H-01-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3790267-47195-00 ...RIVET, BLIND (REQ. QTY:143)...RIVET, BLIND (REQ. QTY:143)
-
388FT-21963-00-00 ...PATCH 3...PATCH 3
-
398FT-21964-00-00 ...PATCH 4...PATCH 4
-
408FU-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
4190210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
4295817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4390267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
448FU-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
4592014-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
468FG-2111J-00-00 ...MEMBER, SIDE 1...MEMBER, SIDE 1
-
478FG-2111K-00-00 ...MEMBER, SIDE 2...MEMBER, SIDE 2
-
488FG-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
498FG-21988-00-00 ...PATCH 8...PATCH 8
-
508FG-21989-00-00 ...PATCH 9...PATCH 9
-
5190267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
528FP-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
538CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
548FP-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
558FP-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
568FP-2198G-00-00 ...COVER 2...COVER 2
-
578FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
5890267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5990267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
608FP-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
618FP-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
628ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6395827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
648EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6590480-13567-00 GROMMETGROMMET
-
668FU-2198F-00-00 COVER 1COVER 1
-
678FU-2198J-00-00 COVER 3COVER 3
-
688FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
698FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
708FP-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
718FP-77374-00-00 DAMPER 2DAMPER 2
-
728FP-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
738FP-77375-00-00 DAMPER 3DAMPER 3
-
748FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
758FA-2196F-00-00 BRACKET 3BRACKET 3
-
7690267-48018-00 RIVET, BLINDRIVET, BLIND
-
7790267-47200-00 RIVET, BLINDRIVET, BLIND
-
788FP-21979-00-00 BRKT. , FR. FOODBRKT. , FR. FOOD
-
7995827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
8095707-06500-00 NUT, FLANGENUT, FLANGE
-
818FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
828FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
8395827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
848FG-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
858FU-2197N-00-00 BRACKET 7BRACKET 7
-
8695827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8790267-48169-00 RIVET, BLINDRIVET, BLIND
-
8890267-48083-00 RIVET, BLINDRIVET, BLIND
-
8990267-48095-00 RIVET, BLINDRIVET, BLIND
-
9090267-47195-00 RIVET, BLINDRIVET, BLIND
-
918FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9290109-065F3-00 BOLTBOLT
-
9390183-06053-00 NUT, SPRINGNUT, SPRING
-
948FA-21998-00-00 SPACERSPACER
-
958FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9690267-48059-00 RIVET, BLINDRIVET, BLIND
-
978FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
9890150-06015-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
998FR-21962-00-00 PATCH 2PATCH 2
