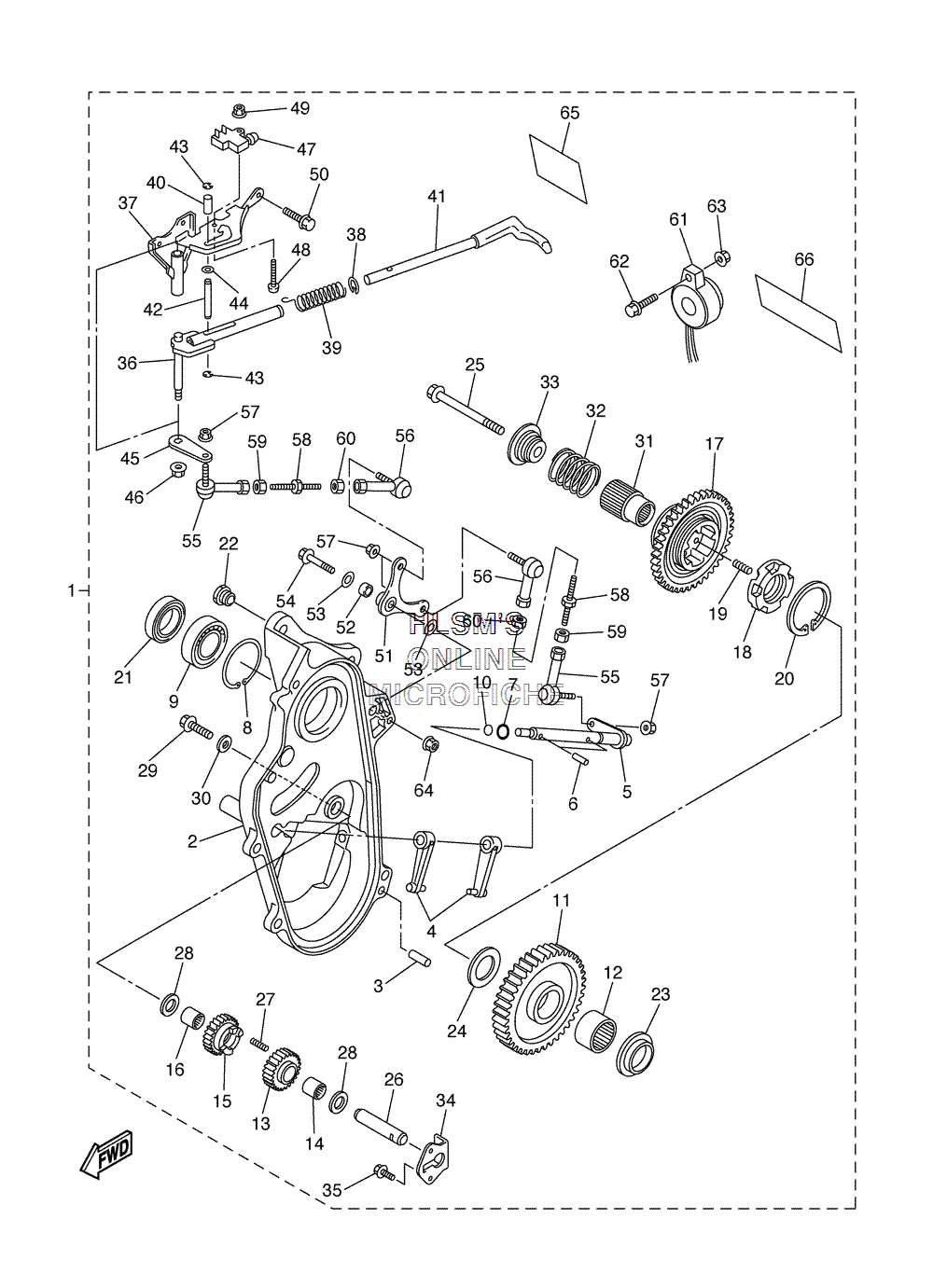

REVERSE KIT (OPTION) для Yamaha NYTRO - 2006 года выпуска
-
№АртикулНазвание
-
18FA-W4759-20-00 REVERSE GEAR KIT (OPT)REVERSE GEAR KIT (OPT)
-
18GE-W4759-20-00 REVERSE GEAR KIT (OPT)REVERSE GEAR KIT (OPT)
-
28ER-47543-01-00 ...CAP, HOUSING...CAP, HOUSING
-
28FR-47543-00-00 ...CAP, HOUSING...CAP, HOUSING
-
393606-20044-00 ...PIN, DOWEL...PIN, DOWEL
-
48FG-18511-00-00 ...FORK, SHIFT 1...FORK, SHIFT 1
-
58ER-18197-00-00 ...SHAFT...SHAFT
-
58ER-18197-10-00 ...SHAFT...SHAFT
-
691609-50022-00 ...PIN, SPRING...PIN, SPRING
-
793210-12131-00 ...O-RING...O-RING
-
899009-52500-00 ...CIRCLIP...CIRCLIP
-
993306-20511-00 ...BEARING...BEARING
-
1093210-09418-00 ...O-RING...O-RING
-
118FB-47587-80-00 ......SPROCKET, CHAIN DRIVEN (38T)......SPROCKET, CHAIN DRIVEN (38T)
-
118FB-47587-00-00 ......SPROCKET, CHAIN DRIVEN (40T)......SPROCKET, CHAIN DRIVEN (40T)
-
1293317-33179-00 ...BEARING...BEARING
-
138FB-17692-00-00 ...SPROCKET, DRIVE (18T)...SPROCKET, DRIVE (18T)
-
1493317-21578-00 ...BEARING...BEARING
-
158CW-17143-00-00 ...GEAR, REVERSE PINION 1 (18T)...GEAR, REVERSE PINION 1 (18T)
-
1693317-21578-00 ...BEARING...BEARING
-
178CW-17243-00-00 ...GEAR, REVERSE WHEEL 1 (50T)...GEAR, REVERSE WHEEL 1 (50T)
-
188CW-17492-00-00 ...DOG, TRANSMISSION SHIFT...DOG, TRANSMISSION SHIFT
-
1990501-066J5-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2093440-39175-00 ...CIRCLIP...CIRCLIP
-
2193102-35473-00 ...OIL SEAL...OIL SEAL
-
2193102-35010-00 ...OIL SEAL...OIL SEAL
-
2290179-10679-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
2390387-2008G-00 ...COLLAR...COLLAR
-
2490201-320S3-00 ...WASHER, PLATE...WASHER, PLATE
-
2590105-10068-00 ...BOLT, FLANGE...BOLT, FLANGE
-
268CW-1761A-00-00 ...SHAFT, 1...SHAFT, 1
-
2790501-060A1-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2890201-16245-00 ...WASHER, PLATE...WASHER, PLATE
-
2990105-060A6-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3090210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
318CW-47571-00-00 ...JOURNAL 1...JOURNAL 1
-
3290501-260A0-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
338CW-47564-01-00 ...COLLAR...COLLAR
-
348CW-47591-00-00 ...PLATE...PLATE
-
3590105-060A6-00 ...BOLT, FLANGE...BOLT, FLANGE
-
368ER-18112-01-00 ...ARM, SHIFT...ARM, SHIFT
-
378ER-18161-00-00 ...GUIDE, PLATE STOPPER...GUIDE, PLATE STOPPER
-
3899009-18400-00 ...CIRCLIP...CIRCLIP
-
3990501-130A0-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
4090387-06059-00 ...COLLAR...COLLAR
-
418ER-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
4290249-06002-00 ...PIN...PIN
-
4393410-06053-00 ...CIRCLIP, S-TYPE...CIRCLIP, S-TYPE
-
4490201-067F9-00 ...WASHER, PLATE...WASHER, PLATE
-
458ER-1811A-01-00 ...PLATE, SHIFT ARM...PLATE, SHIFT ARM
-
4695607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
47J51-82817-00-00 ...SWITCH...SWITCH
-
4898907-04020-00 ...SCREW, BIND...SCREW, BIND
-
4995607-04100-00 ...NUT, U...NUT, U
-
5095827-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
518ER-18198-00-00 ...LEVER...LEVER
-
5290387-0608T-00 ...COLLAR...COLLAR
-
5390201-06071-00 ...WASHER, PLATE...WASHER, PLATE
-
5495817-06030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
5495817-06040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
55J45-23845-00-00 ...JOINT, UNIVERSAL 2...JOINT, UNIVERSAL 2
-
5688T-18157-00-00 ...JOINT 2...JOINT 2
-
5795607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
5826H-18115-00-00 ...ROD, SHIFT...ROD, SHIFT
-
5995304-06600-00 ...NUT...NUT
-
6090170-06289-00 ...NUT...NUT
-
618CW-83383-00-00 ...BUZZER...BUZZER
-
6297007-05020-00 ...BOLT...BOLT
-
6395707-05500-00 ...NUT, FLANGE...NUT, FLANGE
-
6495607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
658ER-77763-E0-00 ...LABEL, WARNING 3...LABEL, WARNING 3
-
658ER-77763-J0-00 ...LABEL, WARNING 3...LABEL, WARNING 3
-
668FB-77761-E0-00 ...LABEL, WARNING 1...LABEL, WARNING 1
-
668DY-77761-J0-00 ...LABEL, WARNING 1...LABEL, WARNING 1
