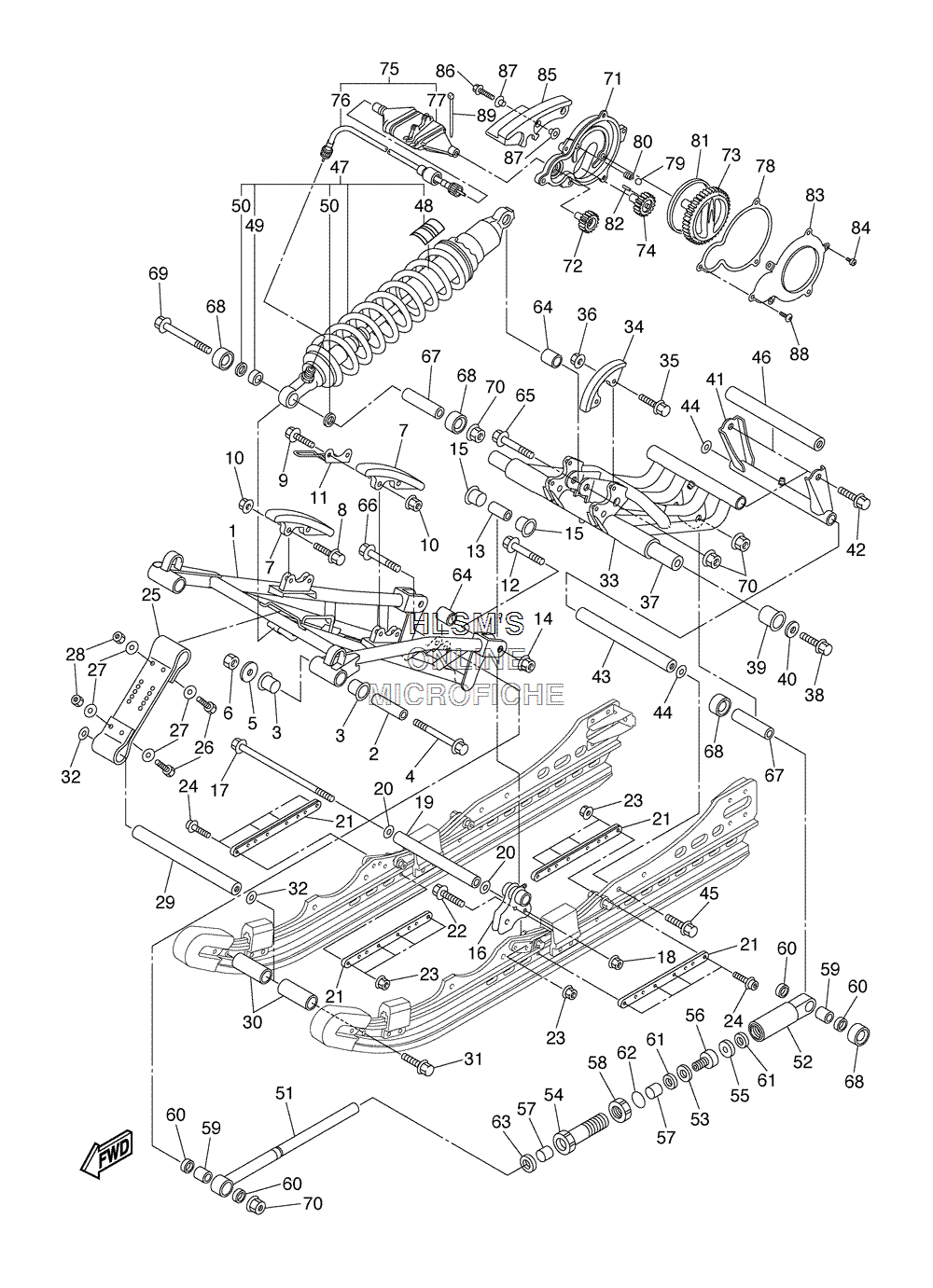

SUSPENSION - TORQUE ARM ASSY для Yamaha RAGE - 2006 года выпуска
-
№АртикулНазвание
-
18FT-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-104A7-00 WASHER, PLATEWASHER, PLATE
-
690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
990105-06601-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
118FR-47445-00-00 PROTECTORPROTECTOR
-
1290105-10090-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-10033-00 COLLARCOLLAR
-
1495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1590386-15002-00 BUSHBUSH
-
168FU-47415-10-00 BRACKET 1BRACKET 1
-
1790105-08119-00 BOLT, FLANGEBOLT, FLANGE
-
1895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990387-08037-00 COLLARCOLLAR
-
2090201-08649-00 WASHER, PLATEWASHER, PLATE
-
218FT-47348-00-00 GUSSETGUSSET
-
2295817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490109-083G1-00 BOLTBOLT
-
258FU-47495-00-00 STOPPER 1STOPPER 1
-
2697007-06025-00 BOLTBOLT
-
2790201-06747-00 WASHER, PLATEWASHER, PLATE
-
2895707-06300-00 NUT, FLANGENUT, FLANGE
-
298FU-47485-00-00 SHAFT 3SHAFT 3
-
3090387-19003-00 COLLARCOLLAR
-
3190105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
3290201-10126-00 WASHER, PLATEWASHER, PLATE
-
338FT-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
348FT-47441-00-00 SLIDER 1SLIDER 1
-
3590105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
3695607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
378FT-47475-00-00 SHAFT 2SHAFT 2
-
3890105-10146-00 BOLT, FLANGEBOLT, FLANGE
-
3990381-28108-00 BUSH, SOLIDBUSH, SOLID
-
4090201-103U4-00 WASHER, PLATEWASHER, PLATE
-
418FU-47417-10-00 BRACKET 3BRACKET 3
-
4290105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
438FU-47485-00-00 SHAFT 3SHAFT 3
-
4490201-10136-00 WASHER, PLATEWASHER, PLATE
-
4590105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
468FU-47486-00-00 SHAFT 4SHAFT 4
-
478FT-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
484AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
4993315-31758-00 ...BEARING...BEARING
-
5093109-17071-00 ...OIL SEAL...OIL SEAL
-
518FR-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
528FU-4745C-10-00 ROD, CONTROL 3ROD, CONTROL 3
-
5390202-16229-00 WASHER, PLATEWASHER, PLATE
-
548FU-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
558FU-47384-00-00 WASHER (L=7.5) (OPT)WASHER (L=7.5) (OPT)
-
558FU-47384-10-00 WASHER (L=5.0) (OPT)WASHER (L=5.0) (OPT)
-
558FU-47384-20-00 WASHER (L=10) (STD)WASHER (L=10) (STD)
-
568FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5790384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
588FU-47368-00-00 NUTNUT
-
5993315-31758-00 BEARINGBEARING
-
6093109-17071-00 OIL SEALOIL SEAL
-
618FU-47466-00-00 SPACERSPACER
-
6293210-347A6-00 O-RINGO-RING
-
63C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
6490387-1012A-00 COLLARCOLLAR
-
6595817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6690105-102A6-00 BOLT, FLANGEBOLT, FLANGE
-
6790387-10034-00 COLLARCOLLAR
-
688FU-47341-00-00 SPACERSPACER
-
6995817-10070-00 BOLT, FLANGEBOLT, FLANGE
-
7095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
718FU-474A1-00-00 HOUSING, ADJUSTERHOUSING, ADJUSTER
-
728FU-474A2-00-00 GEAR, DRIVEGEAR, DRIVE
-
738FU-474A3-00-00 HANDLE, ADJUSTERHANDLE, ADJUSTER
-
748FU-474A4-00-00 GEAR, STOPPERGEAR, STOPPER
-
758FU-W474A-10-00 ADJUSTER CABLE ASSY.ADJUSTER CABLE ASSY.
-
768FU-474A5-10-00 ...CABLE, ADJUSTER...CABLE, ADJUSTER
-
778FU-47445-01-00 ...PROTECTOR...PROTECTOR
-
788FU-474A6-00-00 GASKET, ADJUSTER HOUSINGGASKET, ADJUSTER HOUSING
-
7993501-04011-00 BALL 1/4BALL 1/4
-
8090501-06M35-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
818FU-474A7-00-00 SEAL, ADJUSTER HANDLESEAL, ADJUSTER HANDLE
-
8293603-12007-00 PIN, DOWELPIN, DOWEL
-
838FU-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
8498507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
858FU-47441-10-00 SLIDER 1SLIDER 1
-
8690105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
8790387-07717-00 COLLARCOLLAR
-
8890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
8990464-16061-00 CLAMPCLAMP
