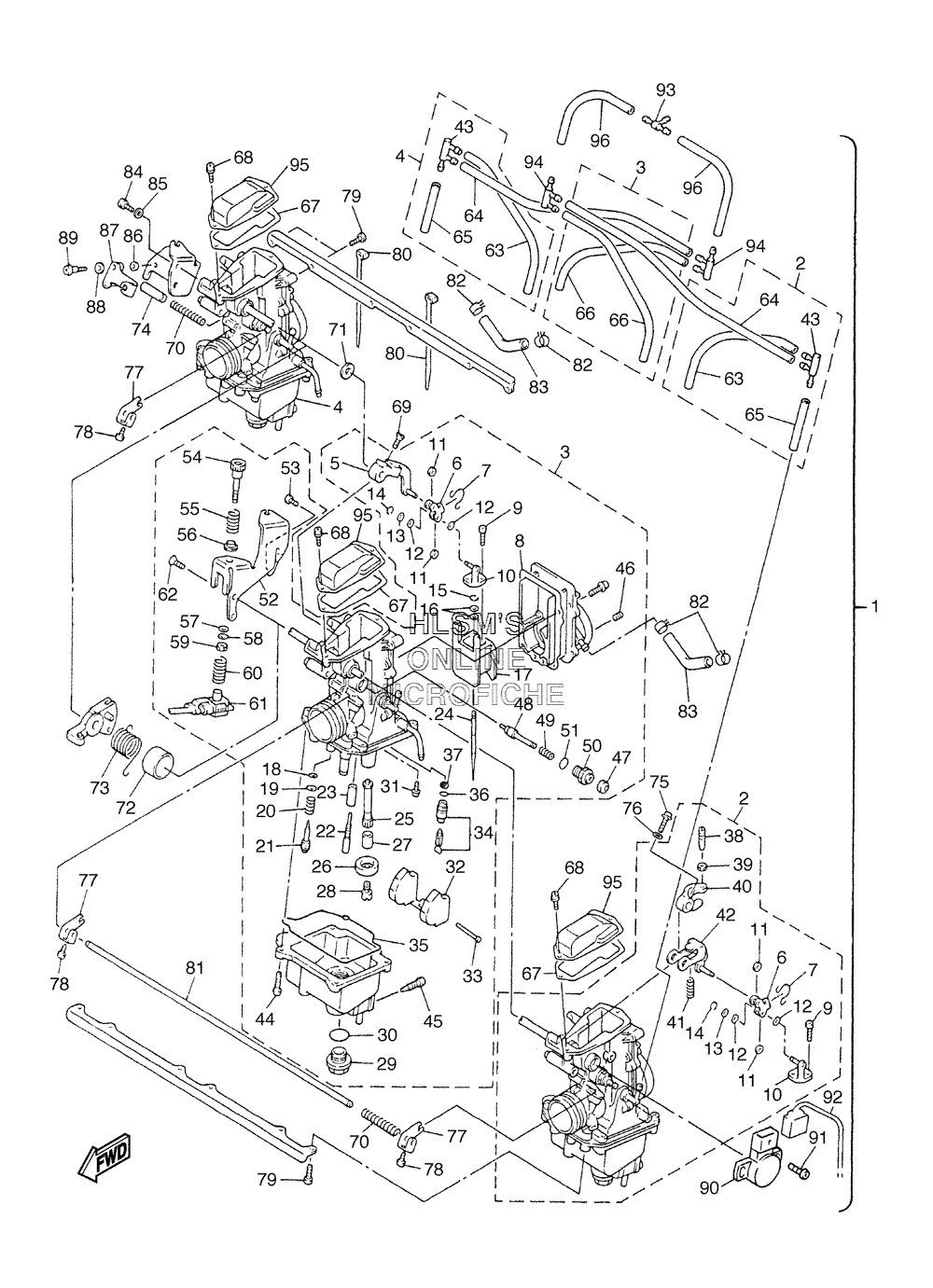

CARBURETOR ASSY для Yamaha SX VIPER MOUNTAIN - 2006 года выпуска
-
№АртикулНазвание
-
18EK-14100-11-00 CARBURETOR ASSYCARBURETOR ASSY
-
28EK-14101-11-00 ...CARBURETOR ASSY 1...CARBURETOR ASSY 1
-
38EK-14102-11-00 ...CARBURETOR ASSY 2...CARBURETOR ASSY 2
-
48EK-14103-11-00 ...CARBURETOR ASSY 3...CARBURETOR ASSY 3
-
589A-14292-00-00 ...BRACKET (#2)...BRACKET (#2)
-
689A-14243-00-00 ...PLATE...PLATE
-
789A-14137-00-00 ...CLIP...CLIP
-
889A-14199-00-00 ...GASKET...GASKET
-
98CC-14216-00-00 ...SCREW...SCREW
-
1089A-14188-00-00 ...CONNECTOR...CONNECTOR
-
113MA-14918-00-00 ...RING...RING
-
123GF-14126-00-00 ...GASKET...GASKET
-
13620-14198-00-00 ...GASKET...GASKET
-
143MA-14937-00-00 ...CLIP...CLIP
-
153MA-14159-00-00 ...CLIP...CLIP
-
168AB-14227-00-00 ...WASHER (T=0.4MM)...WASHER (T=0.4MM)
-
178EK-14112-15-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
183H1-14147-00-00 ...O-RING...O-RING
-
193H1-14962-00-00 ...WASHER...WASHER
-
205K7-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
2189A-14565-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
223H1-14142-45-00 ...JET, PILOT (#45) (STD)...JET, PILOT (#45) (STD)
-
223H1-14142-50-00 ...JET, PILOT (#50) (OPT)...JET, PILOT (#50) (OPT)
-
223H1-14142-55-00 ...JET, PILOT (#55) (OPT)...JET, PILOT (#55) (OPT)
-
223H1-14142-52-00 ...JET, PILOT (#52.5) (OPT)...JET, PILOT (#52.5) (OPT)
-
223H1-14142-47-00 ...JET, PILOT (#47.5) (OPT)...JET, PILOT (#47.5) (OPT)
-
2389A-14996-00-00 ...PIPE...PIPE
-
241T1-14116-A4-00 ...NEEDLE...NEEDLE
-
2589A-14141-48-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
261LX-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
2789A-14194-00-00 ...RING...RING
-
283G2-14231-32-00 ...JET, MAIN (#160) (OPT)...JET, MAIN (#160) (OPT)
-
283G2-14231-31-00 ...JET, MAIN (#155) (OPT)...JET, MAIN (#155) (OPT)
-
283G2-14231-28-00 ....JET, MAIN (#140) (OPT)....JET, MAIN (#140) (OPT)
-
283G2-14231-29-00 ...JET, MAIN (#145) (OPT)...JET, MAIN (#145) (OPT)
-
283G2-1423A-81-00 ...JET, MAIN (#152.5) (OPT)...JET, MAIN (#152.5) (OPT)
-
283G2-1423E-57-00 ...JET, MAIN (#143.8) (OPT)...JET, MAIN (#143.8) (OPT)
-
283G2-14231-30-00 ...JET, MAIN (#150) (OPT)...JET, MAIN (#150) (OPT)
-
283G2-1423E-55-00 ...JET, MAIN (#138.8) (OPT)...JET, MAIN (#138.8) (OPT)
-
283G2-1423A-82-00 ...JET, MAIN (#157.5) (OPT)...JET, MAIN (#157.5) (OPT)
-
283G2-1423E-60-00 ...JET, MAIN (#151.3) (OPT)...JET, MAIN (#151.3) (OPT)
-
283G2-1423E-61-00 ...JET, MAIN (#153.8) (OPT)...JET, MAIN (#153.8) (OPT)
-
283G2-1423E-59-00 ...JET, MAIN (#148.8) (OPT)...JET, MAIN (#148.8) (OPT)
-
283G2-1423E-58-00 ...JET, MAIN (#146.3) (OPT)...JET, MAIN (#146.3) (OPT)
-
283G2-1423E-62-00 ...JET, MAIN (#156.3) (STD)...JET, MAIN (#156.3) (STD)
-
283G2-1423E-63-00 ...JET, MAIN (#158.8) (OPT)...JET, MAIN (#158.8) (OPT)
-
283G2-1423E-56-00 ...JET, MAIN (#141.3) (OPT)...JET, MAIN (#141.3) (OPT)
-
283G2-1423A-80-00 ...JET, MAIN (#147.5) (OPT)...JET, MAIN (#147.5) (OPT)
-
29500-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
30558-14147-00-00 ...O-RING...O-RING
-
312LN-14565-00-00 ...SCREW...SCREW
-
328EK-14185-00-00 ...FLOAT...FLOAT
-
33537-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
341AE-14190-13-00 ...NEEDLE VALVE ASSY...NEEDLE VALVE ASSY
-
3589A-14147-00-00 ...O-RING...O-RING
-
368F2-14147-00-00 ...O-RING...O-RING
-
371J7-14994-00-00 ...NET, FILTER...NET, FILTER
-
3889A-14216-00-00 ...SCREW (#1, 3)...SCREW (#1, 3)
-
3995302-05700-00 ...NUT (#1, 3)...NUT (#1, 3)
-
4089A-14276-00-00 ...LEVER (#1, 3)...LEVER (#1, 3)
-
4189A-14286-00-00 ...SPRING (#1, 3)...SPRING (#1, 3)
-
4289A-14905-00-00 ...LEVER, STARTER (#1, 3)...LEVER, STARTER (#1, 3)
-
438EK-14251-00-00 ...NIPPLE (#1, 3)...NIPPLE (#1, 3)
-
4498507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4512R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
46239-14172-10-00 ...PILOT JET, AIR (1.0)...PILOT JET, AIR (1.0)
-
47302-14173-00-00 ...COVER, PLUNGER CAP...COVER, PLUNGER CAP
-
488EK-14171-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
491AW-14135-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
501FN-14174-00-00 ...CAP, PLUNGER...CAP, PLUNGER
-
511AE-14147-00-00 ...O-RING...O-RING
-
528CH-14995-00-00 ...BRACKET (#2)...BRACKET (#2)
-
5398507-04010-00 ...SCREW, PAN HEAD (#2)...SCREW, PAN HEAD (#2)
-
548CC-14122-00-00 ...SCREW, THROTTLE (#2)...SCREW, THROTTLE (#2)
-
552J2-14133-00-00 ...SPRING, THROTTLE STOP (#2)...SPRING, THROTTLE STOP (#2)
-
5689A-14265-00-00 ...COLLAR (#2)...COLLAR (#2)
-
5722F-14117-00-00 ...WASHER, PLUG SCREW (#2)...WASHER, PLUG SCREW (#2)
-
581UF-14952-00-00 ...WASHER (#2)...WASHER (#2)
-
5989A-14594-00-00 ...NUT (#2)...NUT (#2)
-
6089A-24529-00-00 ...SPRING (#2)...SPRING (#2)
-
6187S-8259A-01-00 ...SWITCH, CARBURETOR (#2)...SWITCH, CARBURETOR (#2)
-
6298707-05008-00 ...SCREW, FLAT HEAD (#2)...SCREW, FLAT HEAD (#2)
-
638EK-14348-00-00 ...PIPE (#1, 3)...PIPE (#1, 3)
-
648EK-14349-00-00 ...PIPE (#1, 3)...PIPE (#1, 3)
-
658CH-14348-00-00 ...PIPE (#1, 3)...PIPE (#1, 3)
-
668F2-14197-00-00 ...PIPE (#2)...PIPE (#2)
-
6789A-14198-00-00 ...GASKET...GASKET
-
6897605-04110-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
6998707-04014-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
701AE-14135-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
713H1-14227-00-00 ...WASHER...WASHER
-
7289A-14264-00-00 ...COLLAR...COLLAR
-
738EX-14589-00-00 ...SPRING...SPRING
-
7489A-14118-00-00 ...CAP...CAP
-
7598507-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
7692907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
7789A-14208-00-00 ...LEVER COMP. 1...LEVER COMP. 1
-
7811H-14991-00-00 ...SCREW...SCREW
-
7998507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
8035H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
818CH-14978-00-00 ...SHAFT, STARTER LEVER...SHAFT, STARTER LEVER
-
8290467-10035-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
838CH-14987-10-00 ...HOSE...HOSE
-
8498507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
8592907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
863FV-14962-00-00 ...WASHER...WASHER
-
8789A-14588-00-00 ...LEVER...LEVER
-
8822F-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
8922F-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
905FL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
918CC-14216-10-00 ...SCREW...SCREW
-
928DN-82309-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
934N0-14251-00-00 ...NIPPLE...NIPPLE
-
948EK-14251-00-00 ...NIPPLE...NIPPLE
-
9589A-24452-00-00 ...COVER...COVER
-
968F2-14197-00-00 ...PIPE...PIPE
