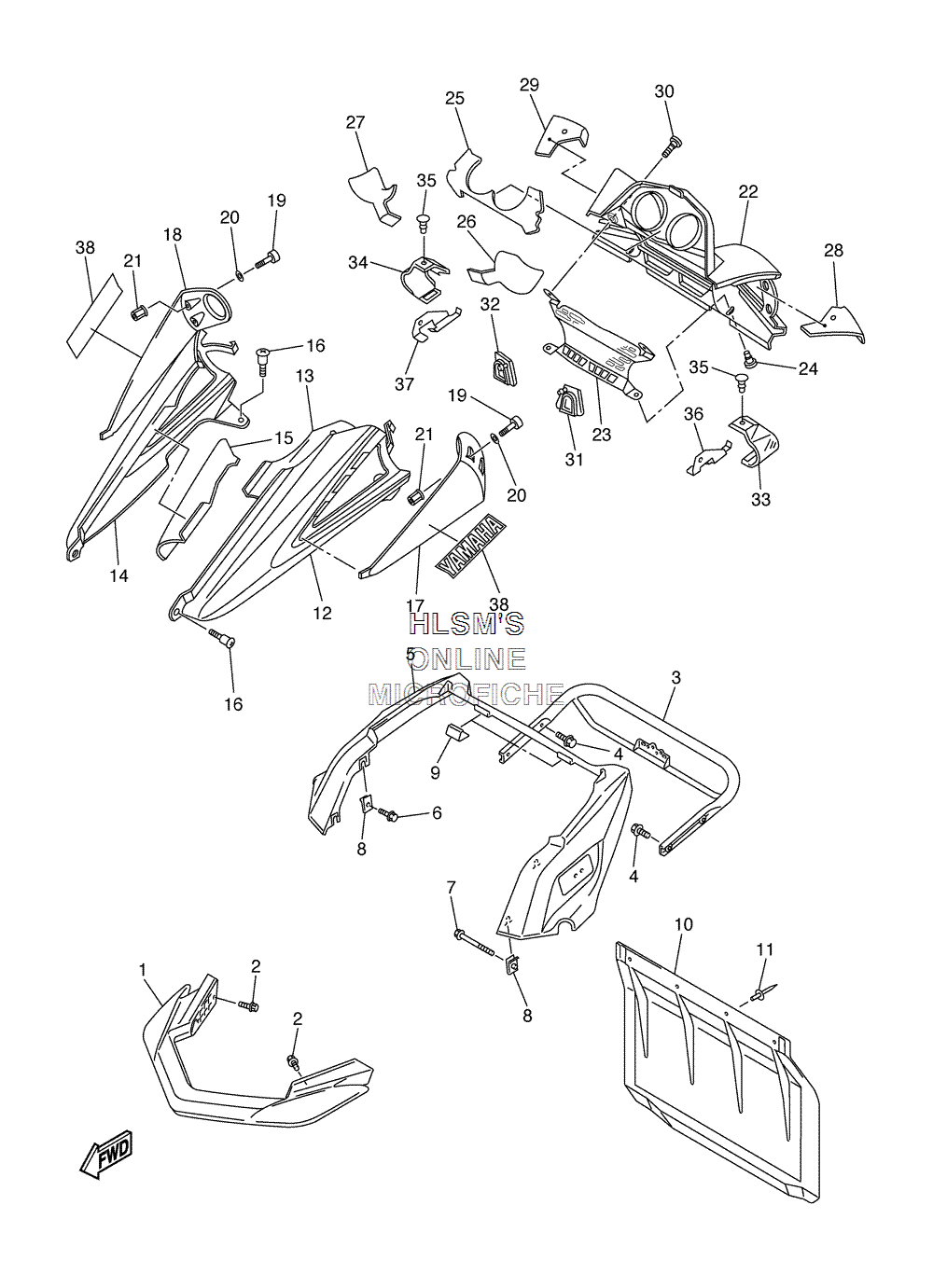

BUMPER - FRONT AND REAR для Yamaha VECTOR MOUNTAIN - 2006 года выпуска
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38EP-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58EP-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790105-06040-00 BOLT, FLANGEBOLT, FLANGE
-
890183-06053-00 NUT, SPRINGNUT, SPRING
-
98FA-7717H-00-00 TAPE 4TAPE 4
-
108ED-K7595-01-00 FLAP, BLACKFLAP, BLACK
-
1190267-47200-00 RIVET, BLINDRIVET, BLIND
-
128ES-77551-00-00 PROTECTOR 1PROTECTOR 1
-
138ES-77261-01-00 LINING, SHROUD 1LINING, SHROUD 1
-
148ES-77552-00-00 PROTECTOR 2PROTECTOR 2
-
158ES-77262-01-00 LINING, SHROUD 2LINING, SHROUD 2
-
1690154-06009-00 SCREW, BINDINGSCREW, BINDING
-
178ES-77554-00-P3 PROTECTOR 4 (SILVER METALLIC)PROTECTOR 4 (SILVER METALLIC)
-
188ES-77555-00-P3 PROTECTOR 5 (SILVER METALLIC)PROTECTOR 5 (SILVER METALLIC)
-
1991314-06020-00 BOLTBOLT
-
2090201-06M07-00 WASHER, PLATEWASHER, PLATE
-
2190179-06520-00 NUTNUT
-
228ES-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
238FK-77553-00-00 PROTECTOR 3PROTECTOR 3
-
2490267-47187-00 RIVET, BLINDRIVET, BLIND
-
258ES-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
268ES-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
278ES-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
288ES-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
298ES-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
3090154-06009-00 SCREW, BINDINGSCREW, BINDING
-
318EP-77431-00-00 GROMMET 1GROMMET 1
-
328EP-77432-00-00 GROMMET 2GROMMET 2
-
338EP-77563-00-00 COVER, 3COVER, 3
-
348EP-77564-00-00 COVER, 4COVER, 4
-
3590338-08220-00 PLUGPLUG
-
368EP-77554-00-00 PROTECTOR 4PROTECTOR 4
-
378EP-77555-00-00 PROTECTOR 5PROTECTOR 5
-
3899244-00120-00 EMBLEM, YAMAHA (BLACK)EMBLEM, YAMAHA (BLACK)
