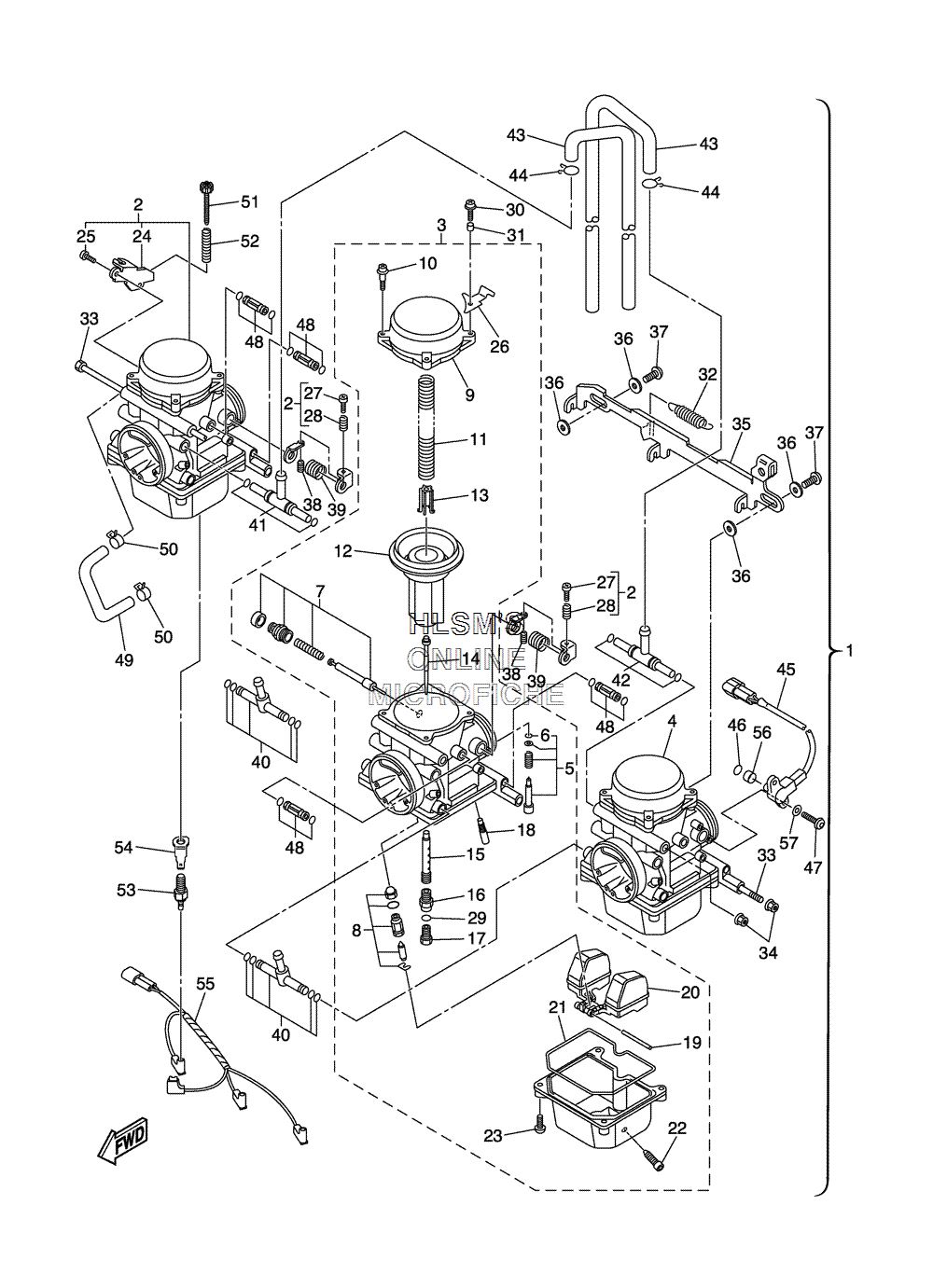

CARBURETOR ASSY для Yamaha VENTURE GT - 2006 года выпуска
-
№АртикулНазвание
-
18ES-14900-02-00 CARBURETOR ASSYCARBURETOR ASSY
-
28ES-14901-01-00 ...CARBURETOR ASSY 1...CARBURETOR ASSY 1
-
38ES-14902-01-00 ...CARBURETOR ASSY 2...CARBURETOR ASSY 2
-
48ES-14903-01-00 ...CARBURETOR ASSY 3...CARBURETOR ASSY 3
-
58ES-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
68ES-14147-00-00 ...O-RING...O-RING
-
78ES-1410A-00-00 ...STARTER SET...STARTER SET
-
88ES-14107-00-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
98ES-14958-00-00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
104JH-14216-00-00 ...SCREW (#2)...SCREW (#2)
-
104JH-14216-00-00 ...SCREW (#1, 3)...SCREW (#1, 3)
-
118ES-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
128ES-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
134JH-14936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
148ES-14916-00-00 ...NEEDLE...NEEDLE
-
158ES-14947-00-00 ...JET, NEEDLE...JET, NEEDLE
-
168ES-1414G-00-00 ...PIPE, MAIN BLEED...PIPE, MAIN BLEED
-
173TJ-14943-87-00 ...JET, MAIN (#148) (STD)...JET, MAIN (#148) (STD)
-
173TJ-14943-36-00 ...JET, MAIN (#145) (OPT)...JET, MAIN (#145) (OPT)
-
173TJ-14943-37-00 ...JET, MAIN (#150) (OPT)...JET, MAIN (#150) (OPT)
-
188ES-14948-05-00 ...JET (#45) (STD)...JET (#45) (STD)
-
188ES-14948-03-00 ...JET (#40) (OPT)...JET (#40) (OPT)
-
188ES-14948-07-00 ...JET (#50) (OPT)...JET (#50) (OPT)
-
188ES-14948-06-00 ...JET (#48) (OPT)...JET (#48) (OPT)
-
19676-14548-00-00 ...PIN, FLOAT ARM...PIN, FLOAT ARM
-
208ES-14985-00-00 ...FLOAT...FLOAT
-
218ES-14984-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
223TJ-14191-40-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2398502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
248ES-14926-01-00 ...BRACKET, THROTTLE 1 (#1)...BRACKET, THROTTLE 1 (#1)
-
258ES-14592-00-00 ...SCREW (#1)...SCREW (#1)
-
264TV-14926-00-00 ...BRACKET, THROTTLE 1 (#2)...BRACKET, THROTTLE 1 (#2)
-
274JH-14121-00-00 ...SCREW, THROTTLE STOP (#1, 2)...SCREW, THROTTLE STOP (#1, 2)
-
287A9-14555-00-00 ...SPRING (#1, 2)...SPRING (#1, 2)
-
298ES-14561-00-00 ...O-RING...O-RING
-
308ES-14565-00-00 ...SCREW...SCREW
-
314JH-14264-00-00 ...COLLAR...COLLAR
-
328ES-14935-00-00 ...SPRING...SPRING
-
338ES-14162-00-00 ...BOLT, HOLDING...BOLT, HOLDING
-
344JH-14358-00-00 ...NUT...NUT
-
358ES-14965-00-00 ...LEVER, STARTER...LEVER, STARTER
-
368ES-14578-00-00 ...COLLAR...COLLAR
-
378ES-14567-00-00 ...SCREW...SCREW
-
384YR-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
394JH-14487-00-00 ...SPRING...SPRING
-
408ES-14295-00-00 ...PIPE, FUEL...PIPE, FUEL
-
418ES-13815-00-00 ...JOINT 1...JOINT 1
-
428ES-13816-00-00 ...JOINT 2...JOINT 2
-
438ES-14197-01-00 ...PIPE...PIPE
-
443TJ-14937-40-00 ...CLIP...CLIP
-
458ES-85885-01-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
464TV-14562-00-00 ...O-RING...O-RING
-
474YR-14216-00-00 ...SCREW...SCREW
-
488ES-14454-00-00 ...JOINT...JOINT
-
498ES-14987-00-00 ...HOSE...HOSE
-
504TV-12486-00-00 ...CLIP...CLIP
-
518ES-14121-00-00 ...SCREW, THROTTLE STOP...SCREW, THROTTLE STOP
-
524YR-14934-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
535FU-83790-20-00 ...HEATER ASSY (30W)...HEATER ASSY (30W)
-
548FA-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
558ES-81517-01-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
564TV-14534-00-00 ...COLLAR...COLLAR
-
574YR-14557-00-00 ...WASHER...WASHER
