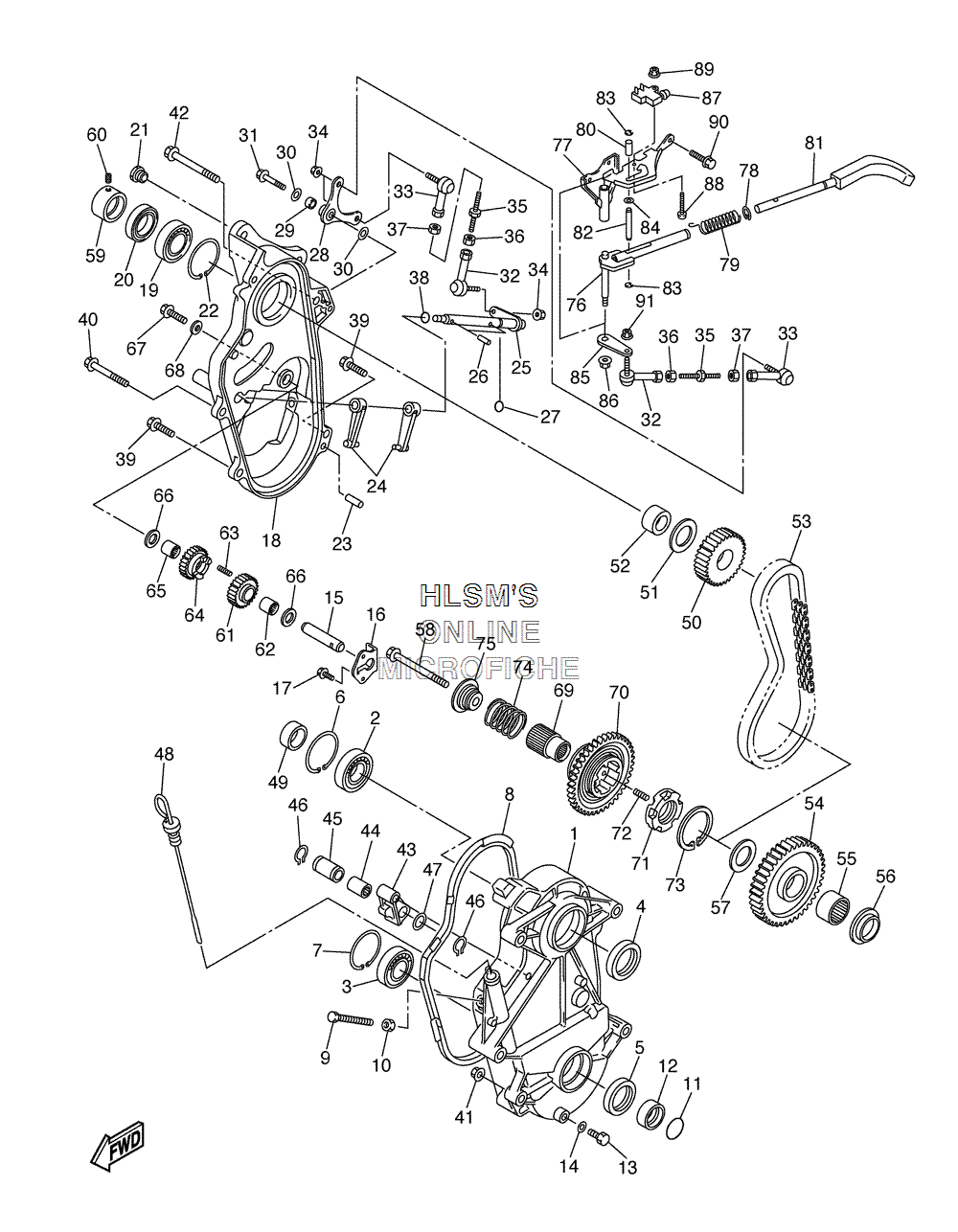

CHAINCASE ASSY для Yamaha VK PROFESSIONAL 2-Pass - 2006 года выпуска
-
№АртикулНазвание
-
18FA-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393306-20592-00 BEARINGBEARING
-
493102-30012-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88FA-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095307-10600-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1397007-08014-00 BOLTBOLT
-
1490210-08017-00 WASHER, SEALWASHER, SEAL
-
158CW-1761A-00-00 SHAFT, 1SHAFT, 1
-
168CW-47591-00-00 PLATEPLATE
-
1790105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
188ER-47543-01-00 CAP, HOUSINGCAP, HOUSING
-
1993306-20511-00 BEARINGBEARING
-
2093102-35010-00 OIL SEALOIL SEAL
-
2190179-10679-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2299009-52500-00 CIRCLIPCIRCLIP
-
2393606-20044-00 PIN, DOWELPIN, DOWEL
-
248FG-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
258ER-18197-10-00 SHAFTSHAFT
-
2691609-50022-00 PIN, SPRINGPIN, SPRING
-
2793210-12131-00 O-RINGO-RING
-
288ER-18198-00-00 LEVERLEVER
-
2990387-0608T-00 COLLARCOLLAR
-
3090201-06071-00 WASHER, PLATEWASHER, PLATE
-
3190105-06059-00 BOLT, FLANGEBOLT, FLANGE
-
32J45-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3388T-18157-00-00 JOINT 2JOINT 2
-
3495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
3526H-18115-00-00 ROD, SHIFTROD, SHIFT
-
3695304-06600-00 NUTNUT
-
3790170-06289-00 NUTNUT
-
3893210-09418-00 O-RINGO-RING
-
3995827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
4095827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
4195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4295827-10090-00 BOLT, FLANGEBOLT, FLANGE
-
438ES-47613-00-00 HOLDERHOLDER
-
4493311-32685-00 BEARINGBEARING
-
4590387-22005-00 COLLARCOLLAR
-
4699009-26400-00 CIRCLIPCIRCLIP
-
4790201-266P2-00 WASHER, PLATEWASHER, PLATE
-
488FA-47546-00-00 LEVEL, OILLEVEL, OIL
-
4990387-30005-00 COLLARCOLLAR
-
508FA-17682-80-00 SPROCKET, CHAIN DRIVE (18T)SPROCKET, CHAIN DRIVE (18T)
-
5190208-26002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
5290387-26007-00 COLLARCOLLAR
-
5394890-09068-00 CHAIN (68L) BORG WARNCHAIN (68L) BORG WARN
-
548FB-47587-90-00 SPROCKET, CHAIN DRIVEN (39T)SPROCKET, CHAIN DRIVEN (39T)
-
5593317-33179-00 BEARINGBEARING
-
5690387-2008G-00 COLLARCOLLAR
-
5790201-320S3-00 WASHER, PLATEWASHER, PLATE
-
5890105-10068-00 BOLT, FLANGEBOLT, FLANGE
-
5990387-25009-00 COLLARCOLLAR
-
6090113-06064-00 BOLT, SETBOLT, SET
-
618FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
6293317-21578-00 BEARINGBEARING
-
6390501-060A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
648CW-17143-00-00 GEAR, REVERSE PINION 1 (18T)GEAR, REVERSE PINION 1 (18T)
-
6593317-21578-00 BEARINGBEARING
-
6690201-16245-00 WASHER, PLATEWASHER, PLATE
-
6790105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
6890210-06006-00 WASHER, SEALWASHER, SEAL
-
698CW-47571-00-00 JOURNAL 1JOURNAL 1
-
708CW-17243-00-00 GEAR, REVERSE WHEEL 1 (50T)GEAR, REVERSE WHEEL 1 (50T)
-
718CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
7290501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7393440-39175-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
7490501-260A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
758CW-47564-01-00 COLLARCOLLAR
-
768ER-18112-01-00 ARM, SHIFTARM, SHIFT
-
778ER-18161-00-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
7899009-18400-00 CIRCLIPCIRCLIP
-
7990501-130A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8090387-06059-00 COLLARCOLLAR
-
818FN-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
8290249-06002-00 PINPIN
-
8393410-06053-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
8490201-067F9-00 WASHER, PLATEWASHER, PLATE
-
858ER-1811A-01-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
8695607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
87J51-82817-00-00 SWITCHSWITCH
-
8898907-04020-00 SCREW, BINDSCREW, BIND
-
8995607-04100-00 NUT, UNUT, U
-
9095827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
9195607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
