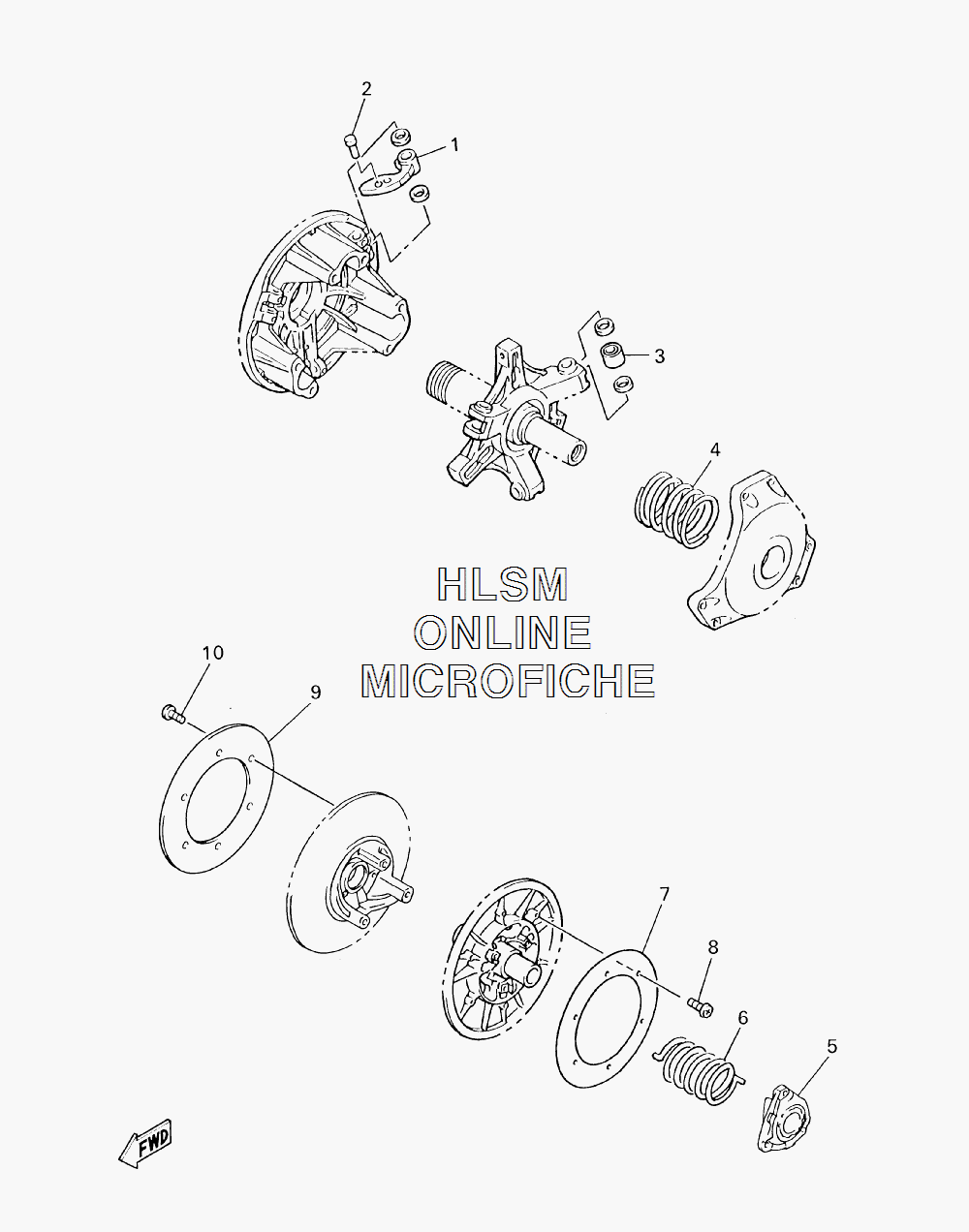

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha APEX GT - 2007 года выпуска
-
№АртикулНазвание
-
18DJ-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18FA-17605-10-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18ES-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18BU-17605-20-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18FP-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18FN-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18FS-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
290261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OPT)RIVET, COUNTERSUNK (ST13.3MM) (OPT)
-
290266-06001-00 RIVET (AL13.3) (OPT)RIVET (AL13.3) (OPT)
-
290266-06002-00 RIVET (ST13.3) (OPT)RIVET (ST13.3) (OPT)
-
290261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (OPT)RIVET, COUNTERSUNK (ST10.3MM) (OPT)
-
290261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (OPT)RIVET, COUNTERSUNK (ST17.2MM) (OPT)
-
290261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OPT)RIVET, COUNTERSUNK (ST13.9MM) (OPT)
-
290269-06006-00 RIVET (ST17.2) (OPT)RIVET (ST17.2) (OPT)
-
290261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OPT)RIVET, COUNTERSUNK (AL10.3MM) (OPT)
-
38FG-17624-20-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-00-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-30-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-40-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-10-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
490501-551L3-00 SPRING, COMPRESSION (OPT) (BL-P-BL)SPRING, COMPRESSION (OPT) (BL-P-BL)
-
490501-581L6-00 SPRING, COMPRESSION (OPT) (GR-P-GR)SPRING, COMPRESSION (OPT) (GR-P-GR)
-
490501-582L2-00 SPRING, COMPRESSION (OPT) (GR-SL-GR)SPRING, COMPRESSION (OPT) (GR-SL-GR)
-
490501-582L7-00 SPRING, COMPRESSION (OPT) (Y-GR-Y)SPRING, COMPRESSION (OPT) (Y-GR-Y)
-
490501-583L1-00 SPRING, COMPRESSION (OPT) (WH-WH-WH)SPRING, COMPRESSION (OPT) (WH-WH-WH)
-
490501-600A1-00 SPRING, COMPRESSION (OPT) (P-BL-P)SPRING, COMPRESSION (OPT) (P-BL-P)
-
490501-580A1-00 SPRING, COMPRESSION (OPT) (Y-BL-Y)SPRING, COMPRESSION (OPT) (Y-BL-Y)
-
490501-550A2-00 SPRING, COMPRESSION (OPT) (BL-BL-BL)SPRING, COMPRESSION (OPT) (BL-BL-BL)
-
490501-624L8-00 SPRING, COMPRESSION (OPT) (OR-SL-OR)SPRING, COMPRESSION (OPT) (OR-SL-OR)
-
490501-603L3-00 SPRING, COMPRESSION (OPT) (GR-WH-GR)SPRING, COMPRESSION (OPT) (GR-WH-GR)
-
490501-603L2-00 SPRING, COMPRESSION (OPT) (Y-WH-Y)SPRING, COMPRESSION (OPT) (Y-WH-Y)
-
490501-602L9-00 SPRING, COMPRESSION (OPT) (P-GR-P)SPRING, COMPRESSION (OPT) (P-GR-P)
-
490501-602L8-00 SPRING, COMPRESSION (OPT) (GR-GR-GR)SPRING, COMPRESSION (OPT) (GR-GR-GR)
-
490501-602L3-00 SPRING, COMPRESSION (OPT) (P-SL-P)SPRING, COMPRESSION (OPT) (P-SL-P)
-
490501-601L8-00 SPRING, COMPRESSION (OPT) (OR-P-OR)SPRING, COMPRESSION (OPT) (OR-P-OR)
-
490501-601L7-00 SPRING, COMPRESSION (OPT) (P-P-P)SPRING, COMPRESSION (OPT) (P-P-P)
-
490501-583L5-00 SPRING, COMPRESSION (OPT) (WH-P-WH)SPRING, COMPRESSION (OPT) (WH-P-WH)
-
490501-583L4-00 SPRING, COMPRESSION (OPT) (WH-SL-WH)SPRING, COMPRESSION (OPT) (WH-SL-WH)
-
490501-583L0-00 SPRING, COMPRESSION (OPT) (BL-WH-BL)SPRING, COMPRESSION (OPT) (BL-WH-BL)
-
490501-582L6-00 SPRING, COMPRESSION (OPT) (WH-GR-WH)SPRING, COMPRESSION (OPT) (WH-GR-WH)
-
490501-582L1-00 SPRING, COMPRESSION (OPT) (Y-SL-Y)SPRING, COMPRESSION (OPT) (Y-SL-Y)
-
490501-581L5-00 SPRING, COMPRESSION (OPT) (Y-P-Y)SPRING, COMPRESSION (OPT) (Y-P-Y)
-
490501-551L9-00 SPRING, COMPRESSION (OPT) (BL-SL-BL)SPRING, COMPRESSION (OPT) (BL-SL-BL)
-
490501-552L5-00 SPRING, COMPRESSION (OPT) (BL-GR-BL)SPRING, COMPRESSION (OPT) (BL-GR-BL)
-
58BV-17604-31-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-11-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-71-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-91-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58FA-17604-00-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-51-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
690508-556A7-00 SPRING, TORSION (OPT) (SILVER)SPRING, TORSION (OPT) (SILVER)
-
690508-60007-00 SPRING, TORSION (OPT) (WHITE)SPRING, TORSION (OPT) (WHITE)
-
690508-60012-00 SPRING, TORSION (OPT) (PINK)SPRING, TORSION (OPT) (PINK)
-
690508-536A9-00 SPRING, TORSION (OPT) (RED)SPRING, TORSION (OPT) (RED)
-
690508-556A2-00 SPRING, TORSION (OPT) (GREEN)SPRING, TORSION (OPT) (GREEN)
-
690508-500B1-00 SPRING, TORSION (OPT) (BROWN)SPRING, TORSION (OPT) (BROWN)
-
78CM-17665-00-00 PLATE 1 (OPT)PLATE 1 (OPT)
-
890150-05040-00 SCREW, ROUND HEAD (OPT)SCREW, ROUND HEAD (OPT)
-
98CM-17675-00-00 PLATE 2 (OPT)PLATE 2 (OPT)
-
1090150-05040-00 SCREW, ROUND HEAD (OPT)SCREW, ROUND HEAD (OPT)
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- • CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
