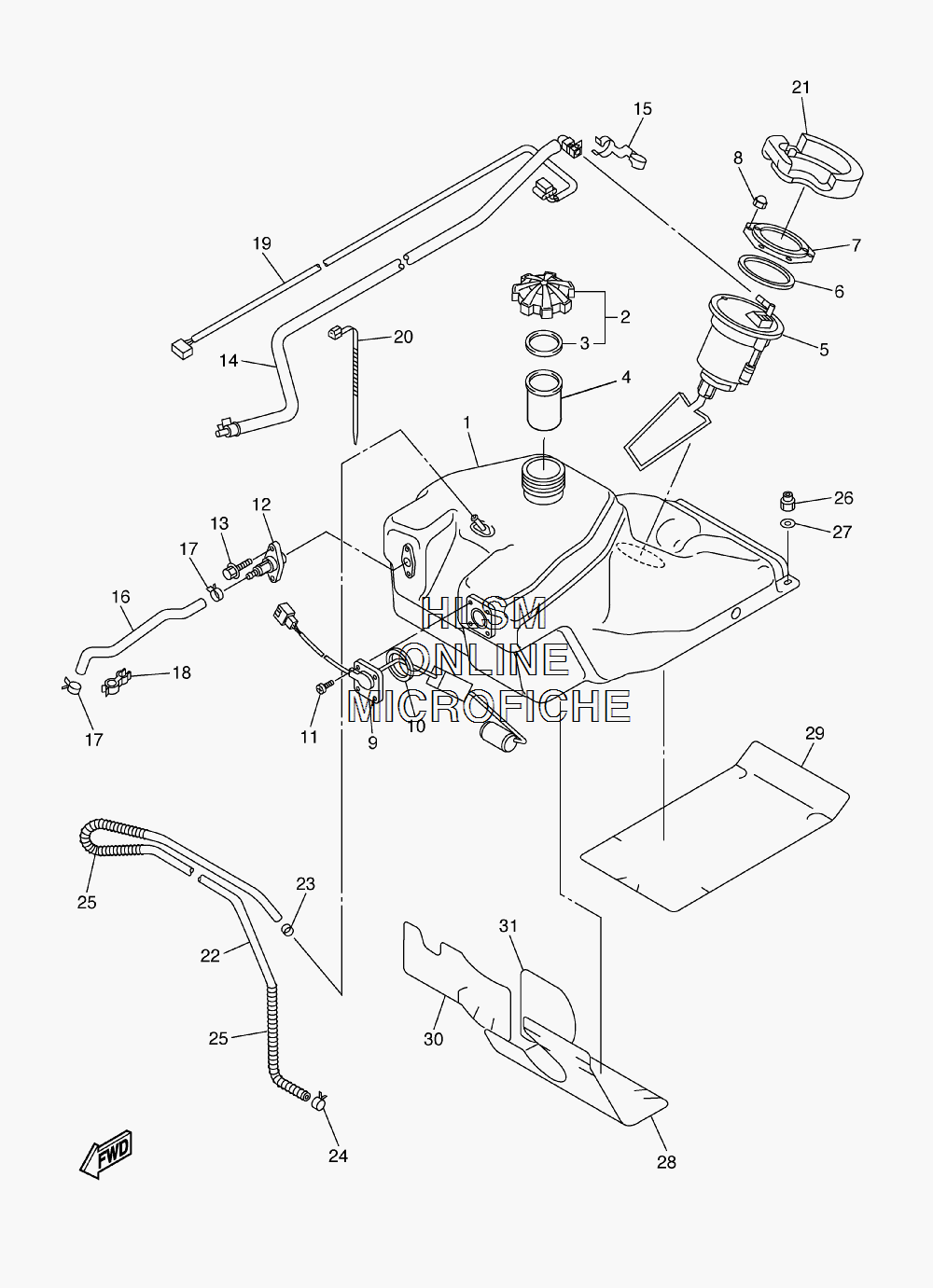

FUEL TANK ASSY для Yamaha APEX MOUNTAIN SE - 2007 года выпуска
-
№АртикулНазвание
-
18FP-24111-00-00 TANK, FUELTANK, FUEL
-
28FG-24610-00-00 CAP ASSYCAP ASSY
-
38FG-24641-00-00 ...GASKET, CAP 1...GASKET, CAP 1
-
48FP-24114-00-00 TUBE, FILLERTUBE, FILLER
-
58FP-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
68FP-24486-00-00 O-RINGO-RING
-
78FP-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
895307-06800-00 NUTNUT
-
98FP-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
1093210-41041-00 O-RINGO-RING
-
1198907-05008-00 SCREW, BINDSCREW, BIND
-
128FP-24362-00-00 VALVE, CHECK 1VALVE, CHECK 1
-
1395827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
148FP-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1590464-14004-00 CLAMPCLAMP
-
168FP-24312-00-00 PIPE 2PIPE 2
-
1790467-13083-00 CLIPCLIP
-
1890468-80181-00 CLIPCLIP
-
198FP-82309-01-00 WIRE, SUB LEADWIRE, SUB LEAD
-
2090464-13077-00 CLAMPCLAMP
-
218FP-24181-01-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2291A20-05115-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
2390468-02078-00 CLIPCLIP
-
2490467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
2590501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2695707-08300-00 NUT, NYLONNUT, NYLON
-
2790201-08784-00 WASHER, PLATEWASHER, PLATE
-
288FP-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
298FA-24141-10-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
308FP-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
318FP-2416F-10-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
