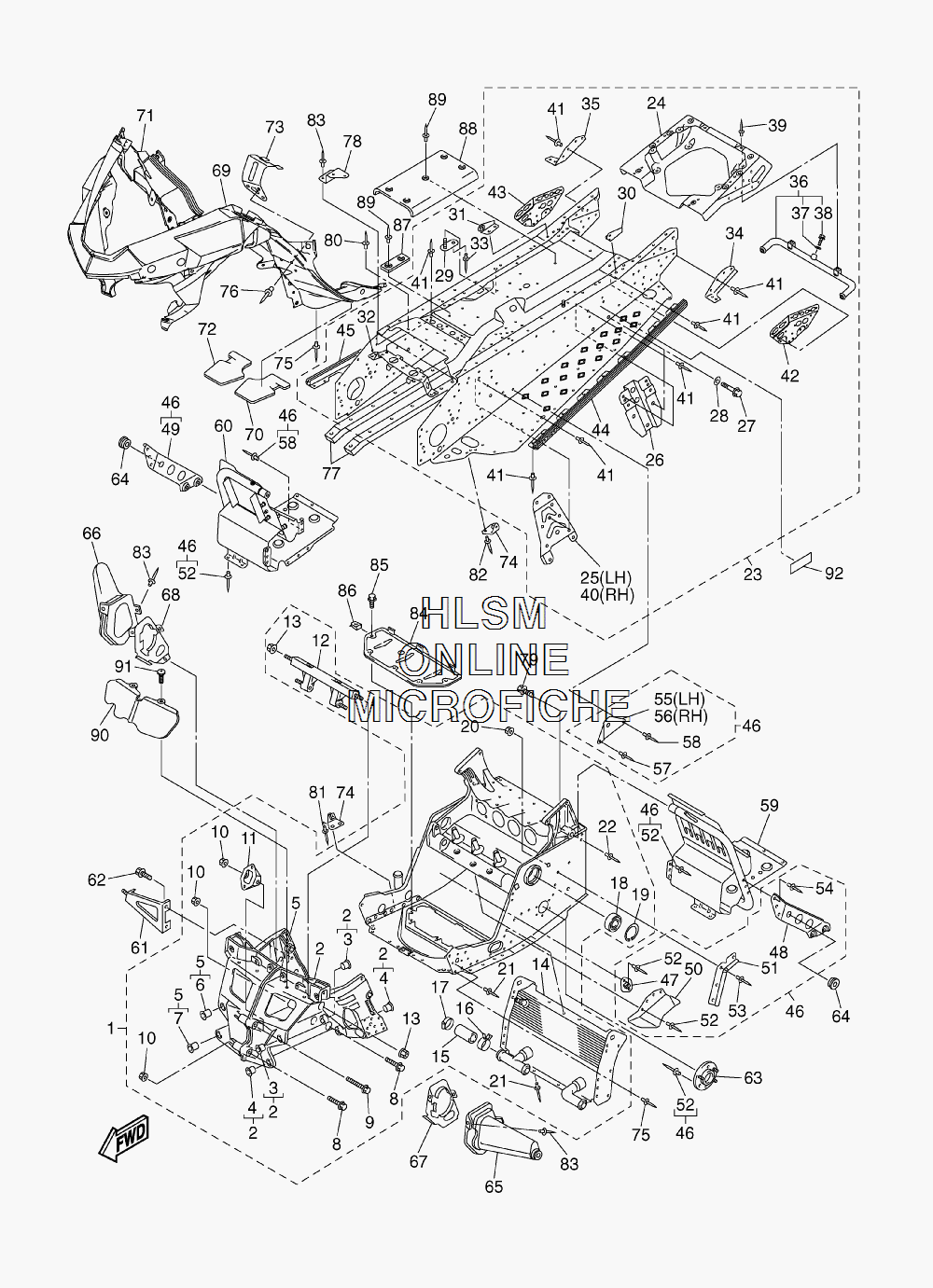

TUNNEL EXTENSION ASSEMBLY для Yamaha APEX RTX ER - 2007 года выпуска
-
№АртикулНазвание
-
18FP-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
2290267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
238GT-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
248FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
258GT-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
268ES-21944-00-00 ...BRACKET, RR. TRACK SUSPENSI...BRACKET, RR. TRACK SUSPENSI
-
2795817-10022-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2890201-100S0-00 ...WASHER, PLATE...WASHER, PLATE
-
298CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
308FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
318FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
328FA-2194H-01-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
348FA-21963-00-00 ...PATCH 3...PATCH 3
-
358FA-21964-00-00 ...PATCH 4...PATCH 4
-
368FU-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
3790210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
3895817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3990267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
408GT-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
4190267-47186-00 ...RIVET, BLIND (QTY:110)...RIVET, BLIND (QTY:110)
-
428FP-21928-00-00 ...REINF., SUB FRAME 1...REINF., SUB FRAME 1
-
438FP-21938-00-00 ...REINF., SUB FRAME 2...REINF., SUB FRAME 2
-
448FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
458FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
468GT-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
478CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
488FP-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
498FP-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
508FP-2198G-00-00 ...COVER 2...COVER 2
-
518FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
5290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5390267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
5490267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
558GT-21966-00-00 ...PATCH 6...PATCH 6
-
568GT-21967-00-00 ...PATCH 7...PATCH 7
-
5790267-47009-00 ...RIVET, BLIND...RIVET, BLIND
-
5890267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
598FP-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
608FP-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
618ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6295827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
638EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6490480-13567-00 GROMMETGROMMET
-
658FU-2198F-00-00 COVER 1COVER 1
-
668FU-2198J-00-00 COVER 3COVER 3
-
678FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
688FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
698FP-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
708FP-77374-00-00 DAMPER 2DAMPER 2
-
718FP-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
728FP-77375-00-00 DAMPER 3DAMPER 3
-
738FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
748FA-2196F-00-00 BRACKET 3BRACKET 3
-
7590267-48018-00 RIVET, BLINDRIVET, BLIND
-
7690267-47200-00 RIVET, BLINDRIVET, BLIND
-
778FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
788FA-2197N-01-00 BRACKET 7BRACKET 7
-
7995827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8090267-48169-00 RIVET, BLINDRIVET, BLIND
-
8190267-48083-00 RIVET, BLINDRIVET, BLIND
-
8290267-48095-00 RIVET, BLINDRIVET, BLIND
-
8390267-47195-00 RIVET, BLINDRIVET, BLIND
-
848FA-2197E-01-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8590109-065F3-00 BOLTBOLT
-
8690183-06053-00 NUT, SPRINGNUT, SPRING
-
878FA-21998-00-00 SPACERSPACER
-
888FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8990267-48059-00 RIVET, BLINDRIVET, BLIND
-
908FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
9190150-06015-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
928FR-2179D-00-00 PLETE, EPA OFFROAD 2PLETE, EPA OFFROAD 2
