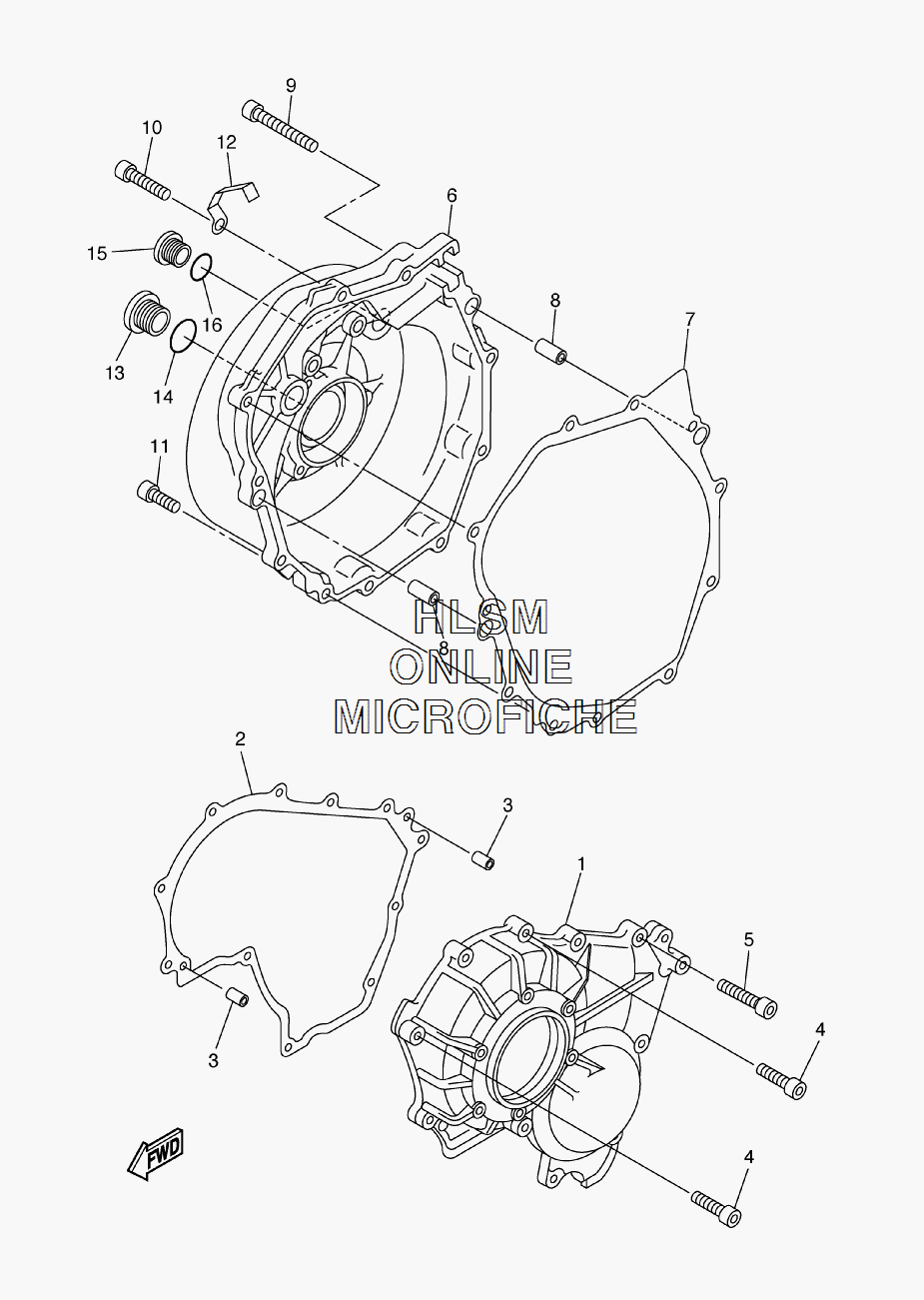

CRANKCASE COVER ASSY для Yamaha APEX RTX - 2007 года выпуска
-
№АртикулНазвание
-
18FP-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
28FP-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
390250-08017-00 PIN, STRAIGHTPIN, STRAIGHT
-
491317-06025-00 BOLTBOLT
-
590110-06057-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68FP-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
78FA-15461-01-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
899530-08012-00 PIN, DOWELPIN, DOWEL
-
991317-06035-00 BOLTBOLT
-
1091317-06025-00 BOLTBOLT
-
1191314-06020-00 BOLTBOLT
-
1290462-08225-00 CLAMPCLAMP
-
1390340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1493210-32172-00 O-RINGO-RING
-
1590340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1693210-14369-00 O-RINGO-RING
