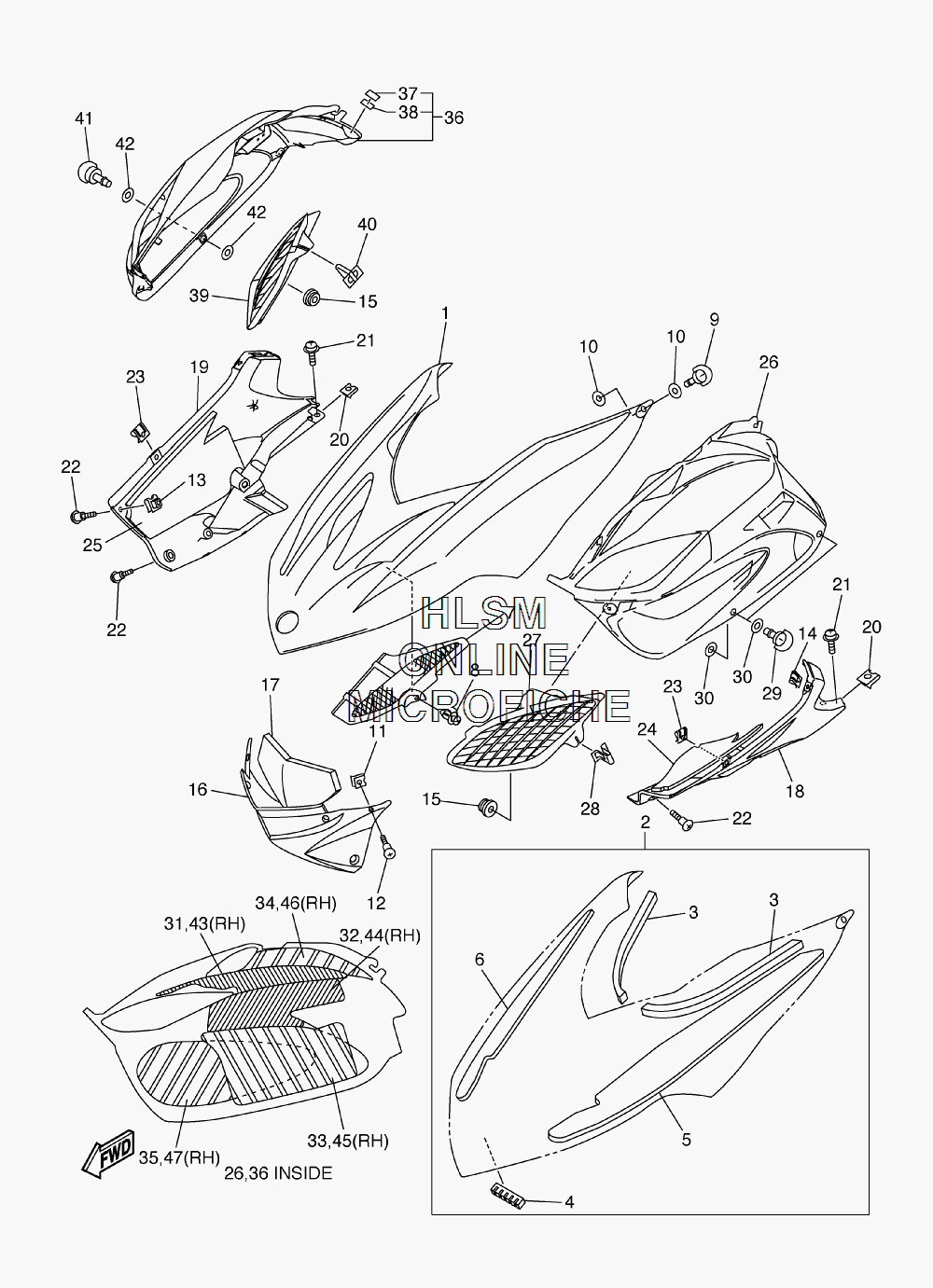

HOOD ASSY для Yamaha ATTAK GT - 2007 года выпуска
-
№АртикулНазвание
-
18FP-77111-00-P0 SHROUD (DPBMC)SHROUD (DPBMC)
-
18FP-77111-00-P1 SHROUD (DRMK)SHROUD (DRMK)
-
18FP-77111-00-33 SHROUD (YB)SHROUD (YB)
-
28FP-W7726-00-00 LINING SETLINING SET
-
38FP-77165-00-00 ...TRIM 1...TRIM 1
-
48FP-77123-00-00 ...GUIDE 1...GUIDE 1
-
58FP-77271-00-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
68FP-77271-10-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
78FP-77133-00-00 LOUVER 3LOUVER 3
-
890269-06081-00 RIVETRIVET
-
93FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
102TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
1390183-06100-00 NUT, SPRINGNUT, SPRING
-
144XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
1590480-13019-00 GROMMETGROMMET
-
168FA-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
178FP-77198-00-00 DAMPER 1DAMPER 1
-
188FP-21982-00-00 HOOD 1HOOD 1
-
198FP-21983-00-00 HOOD 2HOOD 2
-
2090183-06053-00 NUT, SPRINGNUT, SPRING
-
2190159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
234XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
248FP-77278-00-00 DAMPER, NOISE 18DAMPER, NOISE 18
-
258FP-77279-00-00 DAMPER, NOISE 19DAMPER, NOISE 19
-
268FP-2197H-00-00 HOOD 3HOOD 3
-
278FP-77109-00-00 LOUVER 5LOUVER 5
-
2890468-06001-00 CLIPCLIP
-
293FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
302TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
318FP-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
328FP-77273-00-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
338FP-77274-00-00 DAMPER, NOISE 14DAMPER, NOISE 14
-
348FP-77196-00-00 DAMPER, SHROUDDAMPER, SHROUD
-
358FP-78316-00-00 DAMPERDAMPER
-
368FR-2198H-00-00 HOOD 4HOOD 4
-
378FR-7717F-00-00 ...TAPE 2...TAPE 2
-
388FR-77151-00-00 ...PAD 1...PAD 1
-
398FP-77108-00-00 LOUVER 6LOUVER 6
-
4090468-06001-00 CLIPCLIP
-
413FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
422TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
438FP-77275-00-00 DAMPER, NOISE 15DAMPER, NOISE 15
-
448FP-77276-00-00 DAMPER, NOISE 16DAMPER, NOISE 16
-
458FP-77277-00-00 DAMPER, NOISE 17DAMPER, NOISE 17
-
468FP-77196-10-00 DAMPER, SHROUDDAMPER, SHROUD
-
478FP-78316-10-00 DAMPERDAMPER
