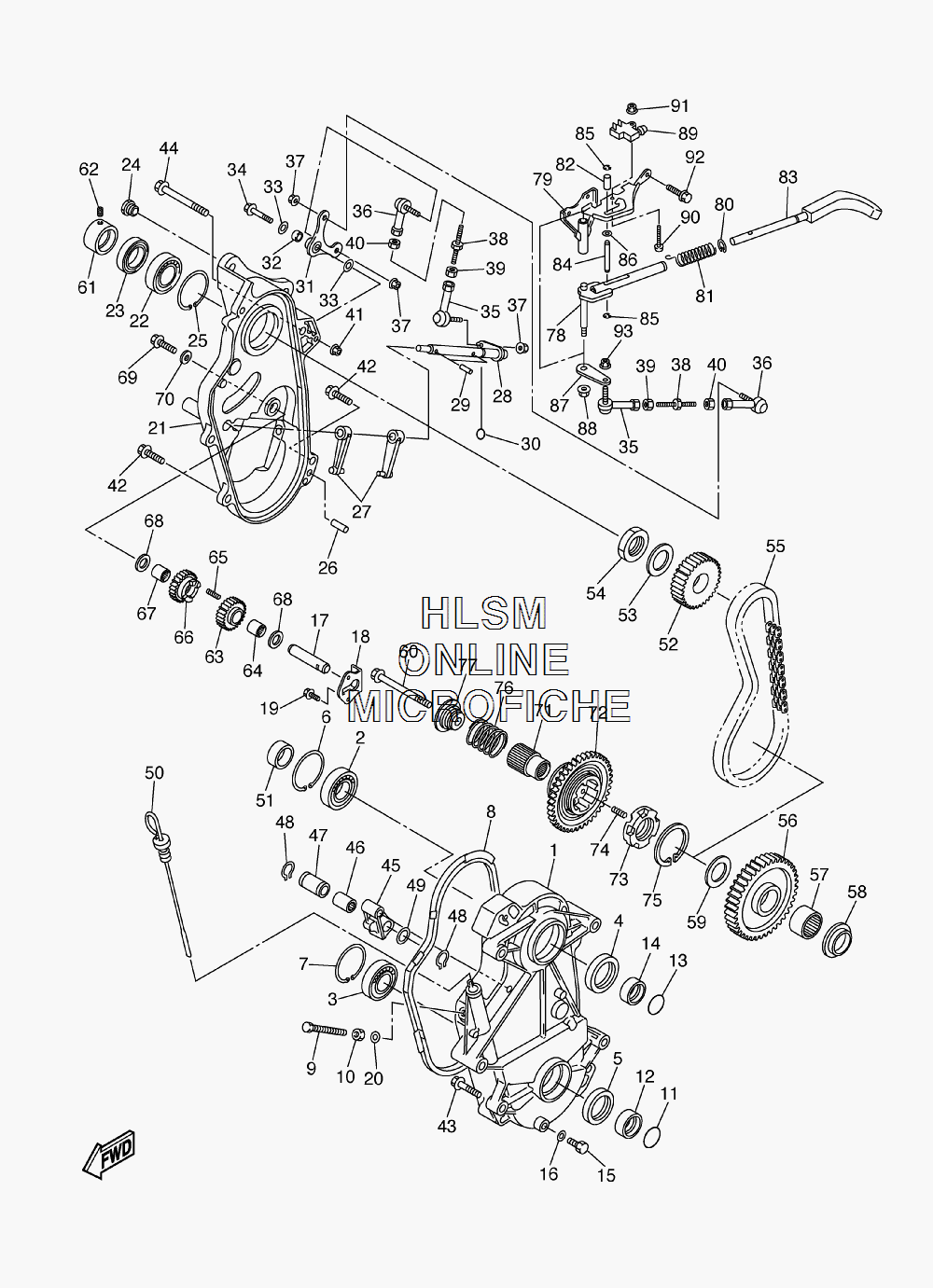

CHAINCASE ASSY для Yamaha ATTAK - 2007 года выпуска
-
№АртикулНазвание
-
18FP-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393306-20592-00 BEARINGBEARING
-
493102-40014-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88FP-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095307-10700-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1393210-29282-00 O-RINGO-RING
-
1490387-30004-00 COLLARCOLLAR
-
1597007-08014-00 BOLTBOLT
-
1690210-08017-00 WASHER, SEALWASHER, SEAL
-
178CW-1761A-00-00 SHAFT, 1SHAFT, 1
-
188CW-47591-00-00 PLATEPLATE
-
1990105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-106H5-00 WASHER, PLATEWASHER, PLATE
-
218FR-47543-00-00 CAP, HOUSINGCAP, HOUSING
-
2293306-20511-00 ...BEARING...BEARING
-
2393102-35473-00 OIL SEALOIL SEAL
-
2490179-10679-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2599009-52500-00 CIRCLIPCIRCLIP
-
2693606-20044-00 PIN, DOWELPIN, DOWEL
-
278FG-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
288FR-18197-00-00 SHAFTSHAFT
-
2991609-50022-00 PIN, SPRINGPIN, SPRING
-
3093210-12131-00 O-RINGO-RING
-
318FR-18198-00-00 LEVERLEVER
-
3290387-0608T-00 COLLARCOLLAR
-
3390201-06071-00 WASHER, PLATEWASHER, PLATE
-
3495817-06040-00 BOLT, FLANGEBOLT, FLANGE
-
35J45-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3688T-18157-00-00 JOINT 2JOINT 2
-
3795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
3826H-18115-00-00 ROD, SHIFTROD, SHIFT
-
3995304-06600-00 NUTNUT
-
4090170-06289-00 NUTNUT
-
4195607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
4290105-08748-00 BOLT, FLANGEBOLT, FLANGE
-
4395827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
4495827-10090-00 BOLT, FLANGEBOLT, FLANGE
-
458ES-47613-00-00 HOLDERHOLDER
-
4693311-32685-00 BEARINGBEARING
-
4790387-22005-00 COLLARCOLLAR
-
4899009-26400-00 CIRCLIPCIRCLIP
-
4990201-266P2-00 WASHER, PLATEWASHER, PLATE
-
508FA-47546-00-00 LEVEL, OILLEVEL, OIL
-
5190387-30005-00 COLLARCOLLAR
-
528FA-17682-30-00 SPROCKET, CHAIN DRIVE (23T)SPROCKET, CHAIN DRIVE (23T)
-
5390208-28001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
5490170-28009-00 NUTNUT
-
5594890-09070-00 CHAIN (70L) BORG WARNCHAIN (70L) BORG WARN
-
568FB-47587-80-00 SPROCKET, CHAIN DRIVEN (38T)SPROCKET, CHAIN DRIVEN (38T)
-
5793317-33179-00 BEARING, CYLINDRICALBEARING, CYLINDRICAL
-
5890387-2008G-00 COLLARCOLLAR
-
5990201-320S3-00 WASHER, PLATEWASHER, PLATE
-
6090105-10068-00 BOLT, FLANGEBOLT, FLANGE
-
6190387-25009-00 COLLARCOLLAR
-
6290113-06064-00 BOLT, SETBOLT, SET
-
638FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
6493317-21578-00 BEARING, CYLINDRICALBEARING, CYLINDRICAL
-
6590501-060A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
668CW-17143-00-00 GEAR, REVERSE PINION 1 (18T)GEAR, REVERSE PINION 1 (18T)
-
6793317-21578-00 BEARING, CYLINDRICALBEARING, CYLINDRICAL
-
6890201-16245-00 WASHER, PLATEWASHER, PLATE
-
6990105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
7090210-06006-00 WASHER, SEALWASHER, SEAL
-
718CW-47571-00-00 JOURNAL 1JOURNAL 1
-
728CW-17243-00-00 GEAR, REVERSE WHEEL 1 (50T)GEAR, REVERSE WHEEL 1 (50T)
-
738CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
7490501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7593440-39175-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
7690501-260A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
778CW-47564-01-00 COLLARCOLLAR
-
788ER-18112-01-00 ARM, SHIFTARM, SHIFT
-
798ER-18161-00-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
8099009-18400-00 CIRCLIPCIRCLIP
-
8190501-130A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8290387-06059-00 COLLAR (8FA1)COLLAR (8FA1)
-
838FR-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
8490249-06002-00 PIN (8FA1)PIN (8FA1)
-
8593410-06053-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
8690201-067F9-00 WASHER, PLATEWASHER, PLATE
-
878ER-1811A-01-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
8895607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
89J51-82817-00-00 SWITCH, NEUTRALSWITCH, NEUTRAL
-
9098907-04020-00 SCREW, BINDSCREW, BIND
-
9195607-04100-00 NUT, UNUT, U
-
9295827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
9395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
