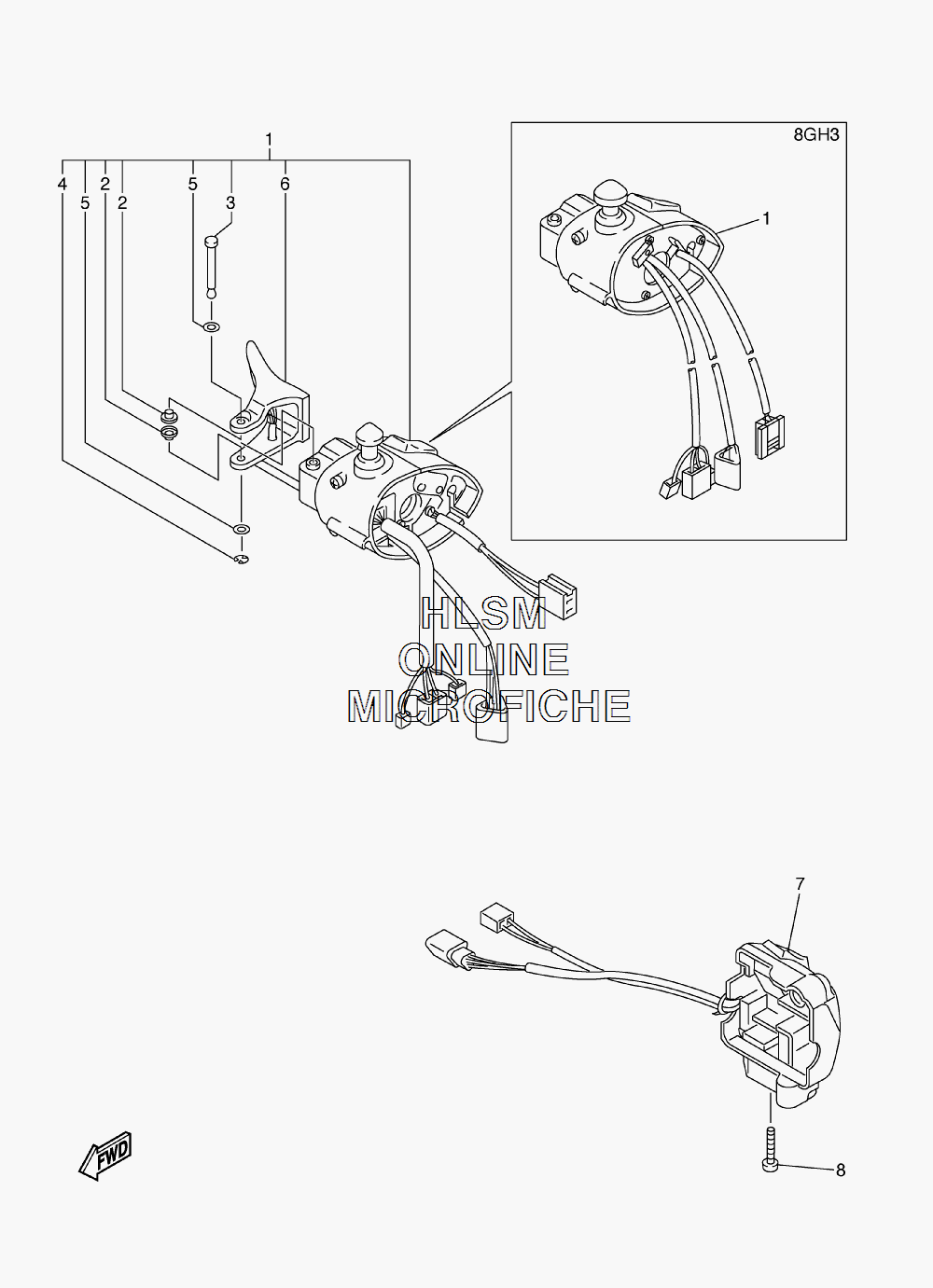

HANDLEBAR - SWITCHES AND LEVERS для Yamaha NYTRO ER - 2007 года выпуска
-
№АртикулНазвание
-
18ES-82720-02-00 LEVER HOLDER ASSY (RIGHT) (RW (8FJ5)LEVER HOLDER ASSY (RIGHT) (RW (8FJ5)
-
18FP-82720-01-00 LEVER HOLDER ASSY (RIGHT) (NRW (8GH3)LEVER HOLDER ASSY (RIGHT) (NRW (8GH3)
-
285G-83956-00-00 ...CAP 1...CAP 1
-
38R6-8399F-00-00 ...SHAFT...SHAFT
-
499001-04600-00 ...CIRCLIP...CIRCLIP
-
58FP-82558-00-00 ...WASHER...WASHER
-
68FA-82970-01-00 ...THUMB WARMER ASSY (RW (8FJ5)...THUMB WARMER ASSY (RW (8FJ5)
-
68FP-82970-00-00 ...THUMB WARMER ASSY (NRW (8GH3)...THUMB WARMER ASSY (NRW (8GH3)
-
78FA-83973-01-00 SWITCH, HANDLE 3 (RW (8FJ5)SWITCH, HANDLE 3 (RW (8FJ5)
-
78GF-83973-00-00 SWITCH, HANDLE 3 (NRW (8GH3)SWITCH, HANDLE 3 (NRW (8GH3)
-
898507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- FRONT FRAME COMP. 2
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - STEERING GATE
- • HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- PIVOT ARM W/ SHOCK
- PIVOT ARM W/ SHOCK 2
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- SPEEDOMETER
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- VALVE ASSY
- WATER PUMP ASSY
