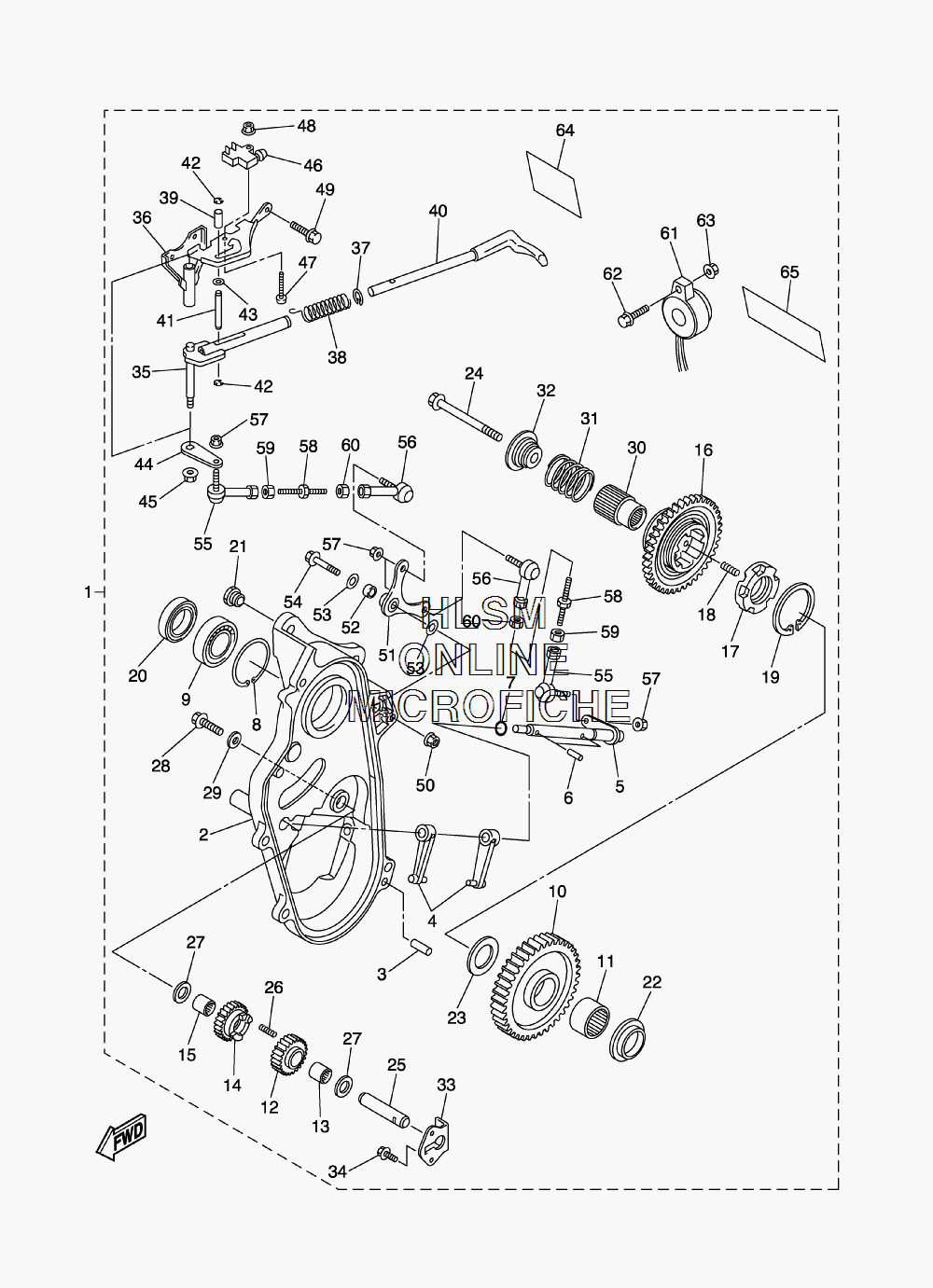

REVERSE KIT (OPTION) для Yamaha NYTRO - 2007 года выпуска
-
№АртикулНазвание
-
18GE-W4759-20-00 REVERSE GEAR KIT (OPT)REVERSE GEAR KIT (OPT)
-
28FR-47543-00-00 ...CAP, HOUSING...CAP, HOUSING
-
393606-20044-00 ...PIN, DOWEL...PIN, DOWEL
-
48FG-18511-00-00 ...FORK, SHIFT 1...FORK, SHIFT 1
-
58ER-18197-00-00 ...SHAFT...SHAFT
-
691609-50022-00 ...PIN, SPRING...PIN, SPRING
-
793210-12131-00 ...O-RING...O-RING
-
899009-52500-00 ...CIRCLIP...CIRCLIP
-
993306-20511-00 ...BEARING...BEARING
-
108FB-47587-00-00 ...SPROCKET, CHAIN DRIVEN (40T)...SPROCKET, CHAIN DRIVEN (40T)
-
1193317-33179-00 ...BEARING...BEARING
-
128FB-17692-00-00 ...SPROCKET, DRIVE (18T)...SPROCKET, DRIVE (18T)
-
1393317-21578-00 ...BEARING, CYLINDRICAL...BEARING, CYLINDRICAL
-
148CW-17143-00-00 ...GEAR, REVERSE PINION 1 (18T)...GEAR, REVERSE PINION 1 (18T)
-
1593317-21578-00 ...BEARING, CYLINDRICAL...BEARING, CYLINDRICAL
-
168CW-17243-00-00 ...GEAR, REVERSE WHEEL 1 (50T)...GEAR, REVERSE WHEEL 1 (50T)
-
178CW-17492-00-00 ...DOG, TRANSMISSION SHIFT...DOG, TRANSMISSION SHIFT
-
1890501-066J5-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1993440-39175-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
2093102-35473-00 ...OIL SEAL...OIL SEAL
-
2190179-10679-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
2290387-2008G-00 ...COLLAR...COLLAR
-
2390201-320S3-00 ...WASHER, PLATE...WASHER, PLATE
-
2490105-10068-00 ...BOLT, FLANGE...BOLT, FLANGE
-
258CW-1761A-00-00 ...SHAFT, 1...SHAFT, 1
-
2690501-060A1-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2790201-16245-00 ...WASHER, PLATE...WASHER, PLATE
-
2890105-060A6-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2990210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
308CW-47571-00-00 ...JOURNAL 1...JOURNAL 1
-
3190501-260A0-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
328CW-47564-01-00 ...COLLAR...COLLAR
-
338CW-47591-00-00 ...PLATE...PLATE
-
3490105-060A6-00 ...BOLT, FLANGE...BOLT, FLANGE
-
358ER-18112-01-00 ...ARM, SHIFT...ARM, SHIFT
-
368ER-18161-00-00 ...GUIDE, PLATE STOPPER...GUIDE, PLATE STOPPER
-
3799009-18400-00 ...CIRCLIP...CIRCLIP
-
3890501-130A0-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3990387-06059-00 ...COLLAR...COLLAR
-
408ER-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
4190249-06002-00 ...PIN...PIN
-
4293410-06053-00 ...CIRCLIP, S-TYPE...CIRCLIP, S-TYPE
-
4390201-067F9-00 ...WASHER, PLATE...WASHER, PLATE
-
448ER-1811A-01-00 ...PLATE, SHIFT ARM...PLATE, SHIFT ARM
-
4595607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
46J51-82817-00-00 ...SWITCH...SWITCH
-
4798907-04020-00 ...SCREW, BIND...SCREW, BIND
-
4895607-04100-00 ...NUT, U...NUT, U
-
4995827-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
5095607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
518ER-18198-00-00 ...LEVER...LEVER
-
5290387-0608T-00 ...COLLAR...COLLAR
-
5390201-06071-00 ...WASHER, PLATE...WASHER, PLATE
-
5495817-06040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
55J45-23845-00-00 ...JOINT, UNIVERSAL 2...JOINT, UNIVERSAL 2
-
5688T-18157-00-00 ...JOINT 2...JOINT 2
-
5795607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
5826H-18115-00-00 ...ROD, SHIFT...ROD, SHIFT
-
5995304-06600-00 ...NUT...NUT
-
6090170-06289-00 ...NUT...NUT
-
618CW-83383-00-00 ...BUZZER...BUZZER
-
6297007-05020-00 ...BOLT...BOLT
-
6395707-05500-00 ...NUT, FLANGE...NUT, FLANGE
-
648ER-77763-J0-00 ...LABEL, WARNING 3...LABEL, WARNING 3
-
658DY-77761-J0-00 ...LABEL, WARNING 1...LABEL, WARNING 1
