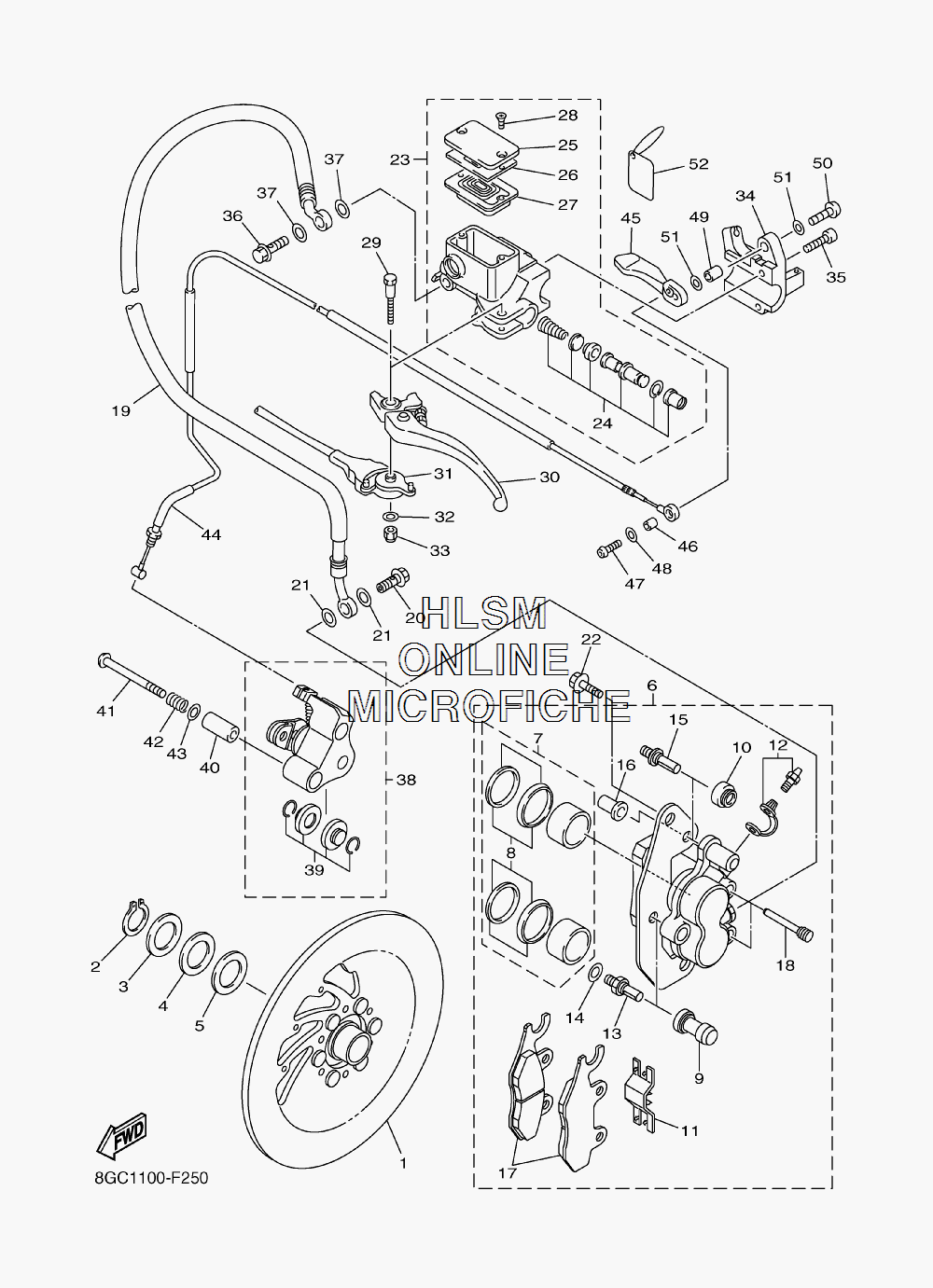

BRAKE ASSY для Yamaha PHAZER FX - 2007 года выпуска
-
№АртикулНазвание
-
18GC-2581T-10-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
299009-20400-00 CIRCLIPCIRCLIP
-
390201-20M04-00 WASHER, PLATEWASHER, PLATE
-
490201-203F0-00 WASHER, PLATE (T=0.5)WASHER, PLATE (T=0.5)
-
590201-20021-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
68GC-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
73LD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
83JD-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
91UY-25937-51-00 ...BOOT 2...BOOT 2
-
103JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
113LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
121UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
131UY-25926-51-00 ...BOLT...BOLT
-
141UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
153JD-25926-00-00 ...BOLT...BOLT
-
163JD-25961-00-00 ...NUT...NUT
-
178GC-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
183LD-25924-00-00 ...PIN, PAD...PIN, PAD
-
198GC-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
2290105-10096-00 BOLT, FLANGEBOLT, FLANGE
-
238GC-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
248CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
258GC-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
263GM-2585B-20-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
2755U-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
2898706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
298CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
308CR-83912-00-00 LEVER 2LEVER 2
-
308DN-83912-00-00 LEVER 1 (OPT)LEVER 1 (OPT)
-
318FP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
328CR-8398X-00-00 WASHER, PLATEWASHER, PLATE
-
3395707-05300-00 NUT, FLANGENUT, FLANGE
-
348GC-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
355YU-26332-00-00 BOLTBOLT
-
3690401-10159-00 BOLT, UNIONBOLT, UNION
-
3790201-10118-00 WASHER, PLATEWASHER, PLATE
-
388FU-25970-01-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
398FA-W0045-00-00 ...PARKING BRAKE PAD KIT...PARKING BRAKE PAD KIT
-
4090387-06058-00 COLLARCOLLAR
-
4190111-06042-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4290501-120A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4390201-12161-00 WASHER, PLATEWASHER, PLATE
-
448GC-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
458FA-83922-00-00 LEVER 2LEVER 2
-
4690387-06043-00 COLLARCOLLAR
-
4792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4890201-06050-00 WASHER, PLATEWASHER, PLATE
-
4990387-081M9-00 COLLARCOLLAR
-
5090111-08054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5190201-08403-00 WASHER, PLATEWASHER, PLATE
-
528CR-23496-00-00 TAG, CAUTIONTAG, CAUTION
