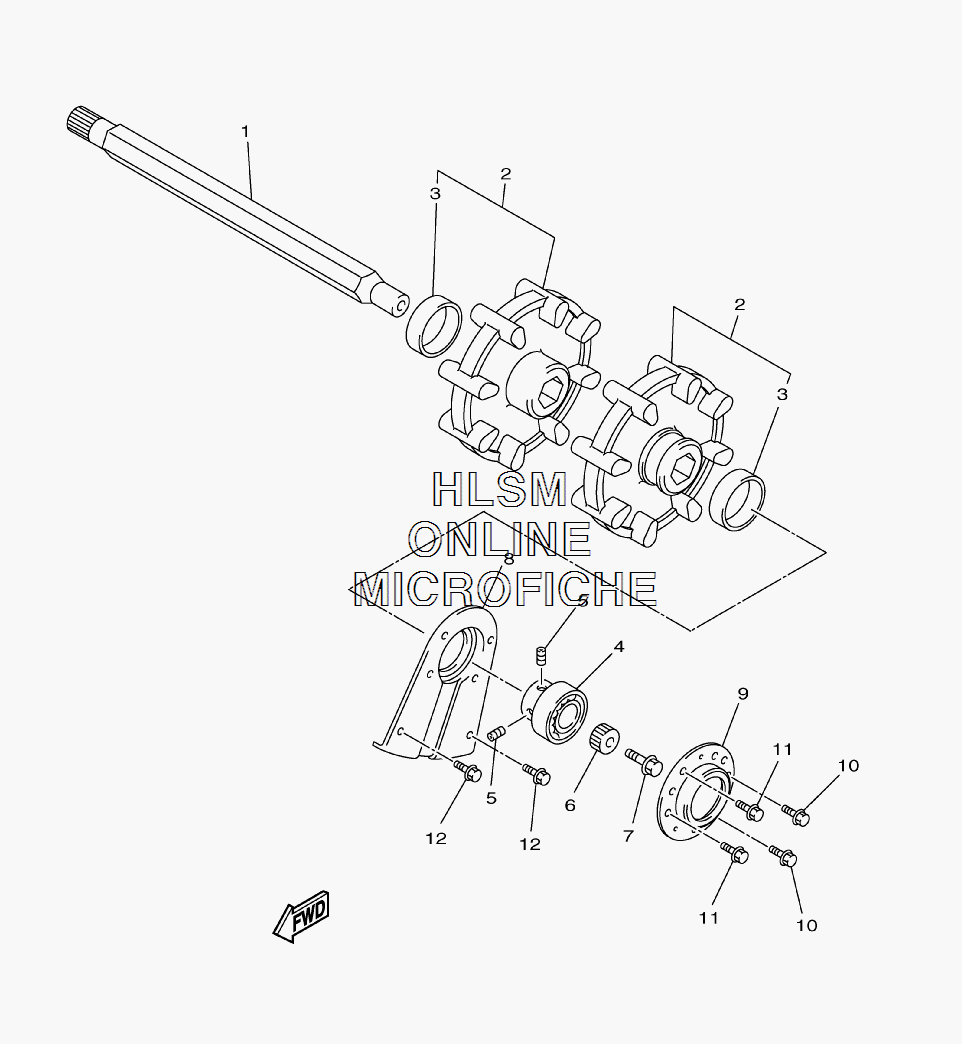

DRIVE TRAIN ASSEMBLY для Yamaha PHAZER MTN. LITE - 2007 года выпуска
-
№АртикулНазвание
-
18GK-47511-00-00 AXLE, FRONTAXLE, FRONT
-
28BF-W4753-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
390387-514Y2-00 ...COLLAR...COLLAR
-
493306-20589-00 BEARINGBEARING
-
590113-06064-00 BOLT, SETBOLT, SET
-
68EK-47715-00-00 JOINTJOINT
-
795822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
88GC-21920-00-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
98EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
1095822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1195822-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-08450-00 BOLT, FLANGEBOLT, FLANGE
