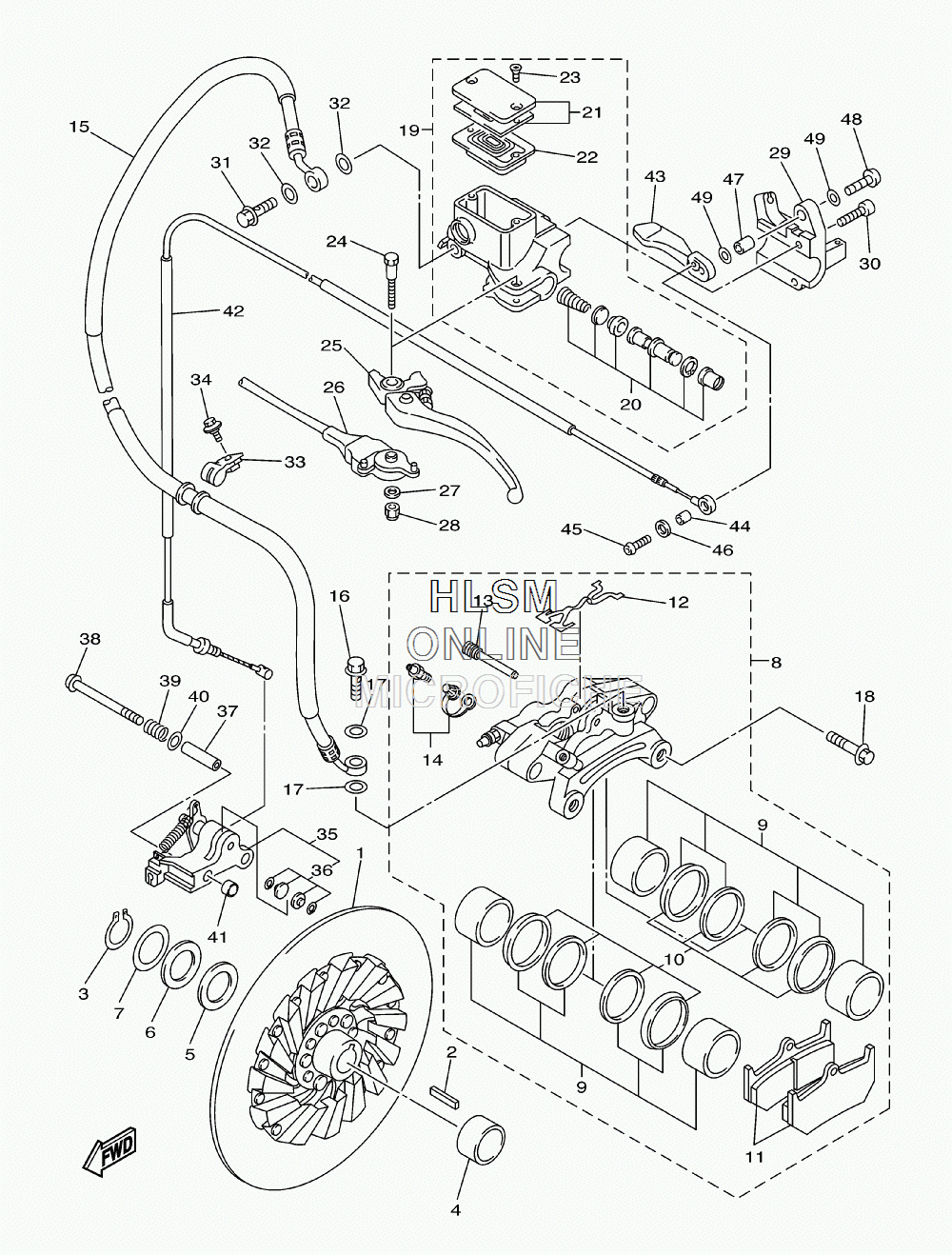

BRAKE ASSY для Yamaha APEX GT 40th ANNIVERSARY - 2008 года выпуска
-
№АртикулНазвание
-
18FU-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290282-07002-00 KEY, STRAIGHTKEY, STRAIGHT
-
399009-24400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
490387-25012-00 COLLARCOLLAR
-
590387-25011-00 COLLARCOLLAR
-
690201-25527-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
790201-252F1-00 WASHER, PLATE (T0.5)WASHER, PLATE (T0.5)
-
88FU-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
98FU-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
103JD-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
118FU-W0046-01-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
128FU-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
138FU-25924-00-00 ...PIN, PAD...PIN, PAD
-
148CR-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
158GT-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1690401-10015-00 BOLT, UNIONBOLT, UNION
-
1790201-10118-00 WASHER, PLATEWASHER, PLATE
-
1890105-10096-00 BOLT, FLANGEBOLT, FLANGE
-
198FA-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
208CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
218CR-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
2255U-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
2398706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
248CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
258DN-83912-00-00 LEVER 1LEVER 1
-
268FP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
278CR-8398X-00-00 WASHER, PLATEWASHER, PLATE
-
2895707-05300-00 NUT, FLANGENUT, FLANGE
-
298FA-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
3091316-06022-00 BOLTBOLT
-
3190401-10015-00 BOLT, UNIONBOLT, UNION
-
3290201-10118-00 WASHER, PLATEWASHER, PLATE
-
338FA-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3490109-06172-00 BOLTBOLT
-
358FU-25970-01-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
368FA-W0045-00-00 ...PARKING BRAKE PAD KIT...PARKING BRAKE PAD KIT
-
3790387-06058-00 COLLARCOLLAR
-
3890111-06048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3990501-120A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4090201-12161-00 WASHER, PLATEWASHER, PLATE
-
4190387-06085-00 COLLARCOLLAR
-
428FP-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
438FA-83922-00-00 LEVER 2LEVER 2
-
4490387-06043-00 COLLARCOLLAR
-
4592017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4690201-06050-00 WASHER, PLATEWASHER, PLATE
-
4790387-081M9-00 COLLARCOLLAR
-
4890111-08054-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
4990201-08403-00 WASHER, PLATEWASHER, PLATE
