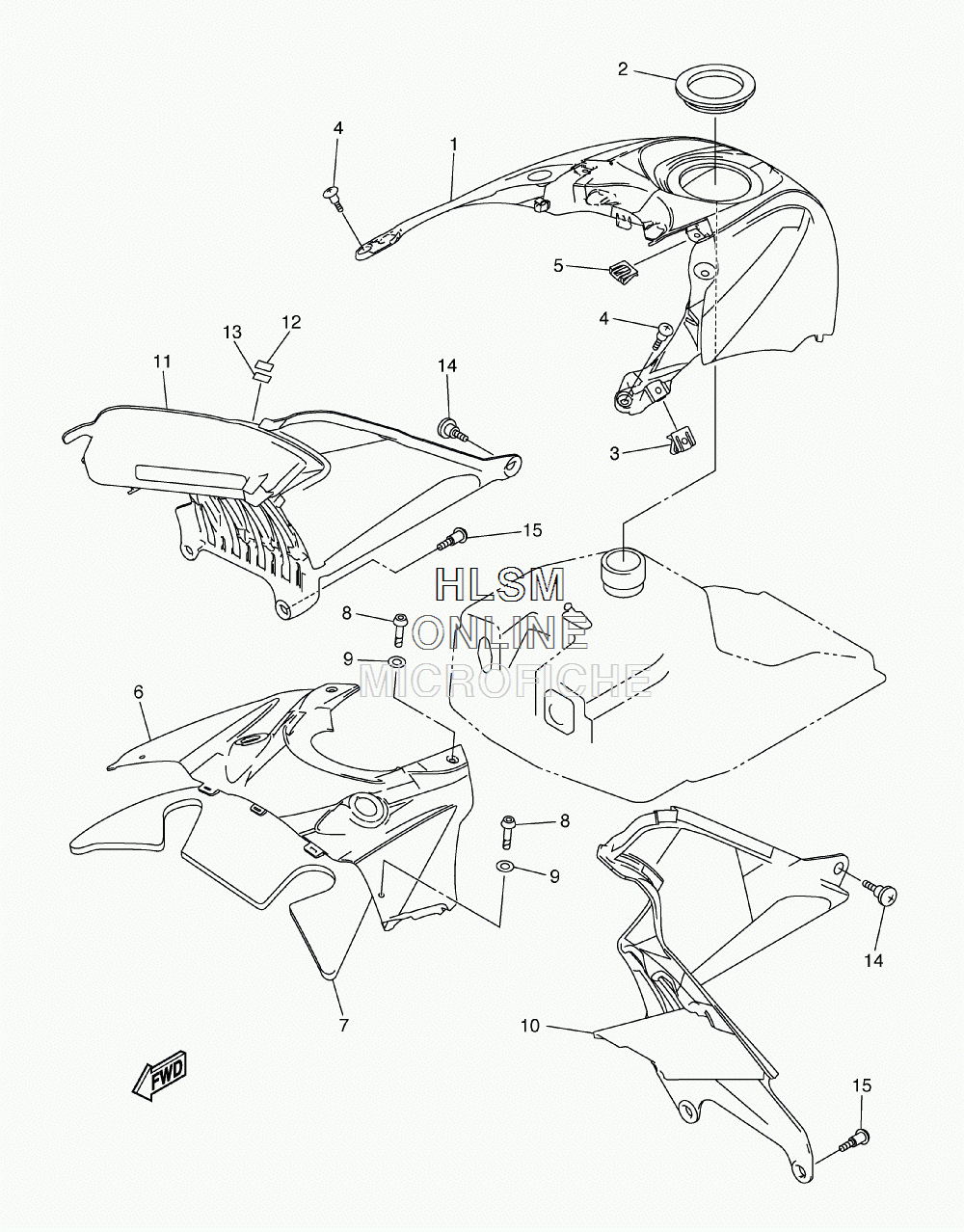

CONSOLE ASSY для Yamaha APEX LTX GT 40th ANNIVERSARY - 2008 года выпуска
-
№АртикулНазвание
-
18FP-77711-00-P2 PANEL, INSTRUMENT (BWC1)PANEL, INSTRUMENT (BWC1)
-
28FP-77746-00-00 GROMMETGROMMET
-
34XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
490154-06009-00 SCREW, BINDINGSCREW, BINDING
-
55PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
68FP-77712-00-P2 PANEL, INSTRUMENT (BWC1)PANEL, INSTRUMENT (BWC1)
-
78FP-77319-00-00 DAMPER 1DAMPER 1
-
85PW-28386-00-00 HEADHEAD
-
92TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
108FP-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
118FP-21721-00-00 COVER, SIDE 2COVER, SIDE 2
-
128FR-7717F-00-00 TAPE 2TAPE 2
-
138FR-77151-00-00 PAD 1PAD 1
-
1490149-06263-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1590154-06009-00 SCREW, BINDINGSCREW, BINDING
