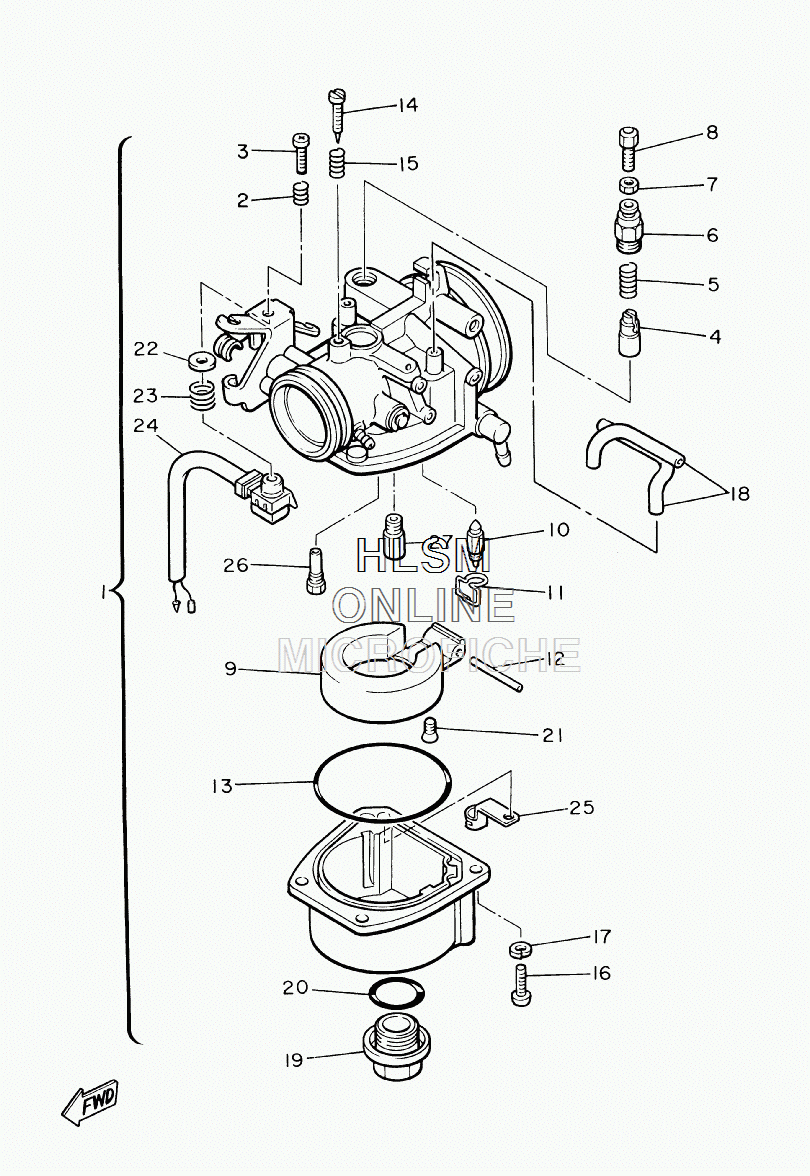

CARBURETOR ASSY для Yamaha BRAVO T - 2008 года выпуска
-
№АртикулНазвание
-
180J-14101-03-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
280F-14131-00-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
380F-14121-00-00 ...SCREW, THROTTLE STOP...SCREW, THROTTLE STOP
-
4371-14993-60-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
590501-08443-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
68A6-14969-00-00 ...CAP...CAP
-
78E7-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
88A6-14977-00-00 ...SHAFT, STARTER LEVER...SHAFT, STARTER LEVER
-
98G6-14985-01-00 ...FLOAT...FLOAT
-
108E7-14546-00-00 ...VALVE, NEEDLE...VALVE, NEEDLE
-
11663-14159-00-00 ...CLIP...CLIP
-
12676-14548-00-00 ...PIN, FLOAT ARM...PIN, FLOAT ARM
-
138G6-14984-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
148G6-14521-00-00 ...SCREW, ADJUST...SCREW, ADJUST
-
1590501-08214-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1698502-04040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1792902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
188R4-14994-00-00 ...PIPE...PIPE
-
198M7-14992-00-00 ...ROD...ROD
-
2093210-19309-00 ...O-RING...O-RING
-
2198602-04008-00 ...SCREW, FLAT...SCREW, FLAT
-
2280F-14146-00-00 ...PLATE...PLATE
-
2380F-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
2487S-8259A-01-00 ...SWITCH, CARBURETOR...SWITCH, CARBURETOR
-
2580F-14137-01-00 ...CLIP...CLIP
-
268G6-14948-18-00 ...JET (#78)...JET (#78)
-
278A6-14516-05-00 ...JET, MAIN (#105) (STD)...JET, MAIN (#105) (STD)
-
278A6-14516-02-00 ...JET, MAIN (#102) (OPT)...JET, MAIN (#102) (OPT)
-
278A6-14516-00-00 ...JET, MAIN (#100) (OPT)...JET, MAIN (#100) (OPT)
-
278A6-14515-98-00 ...JET, MAIN (#98) (OPT)...JET, MAIN (#98) (OPT)
