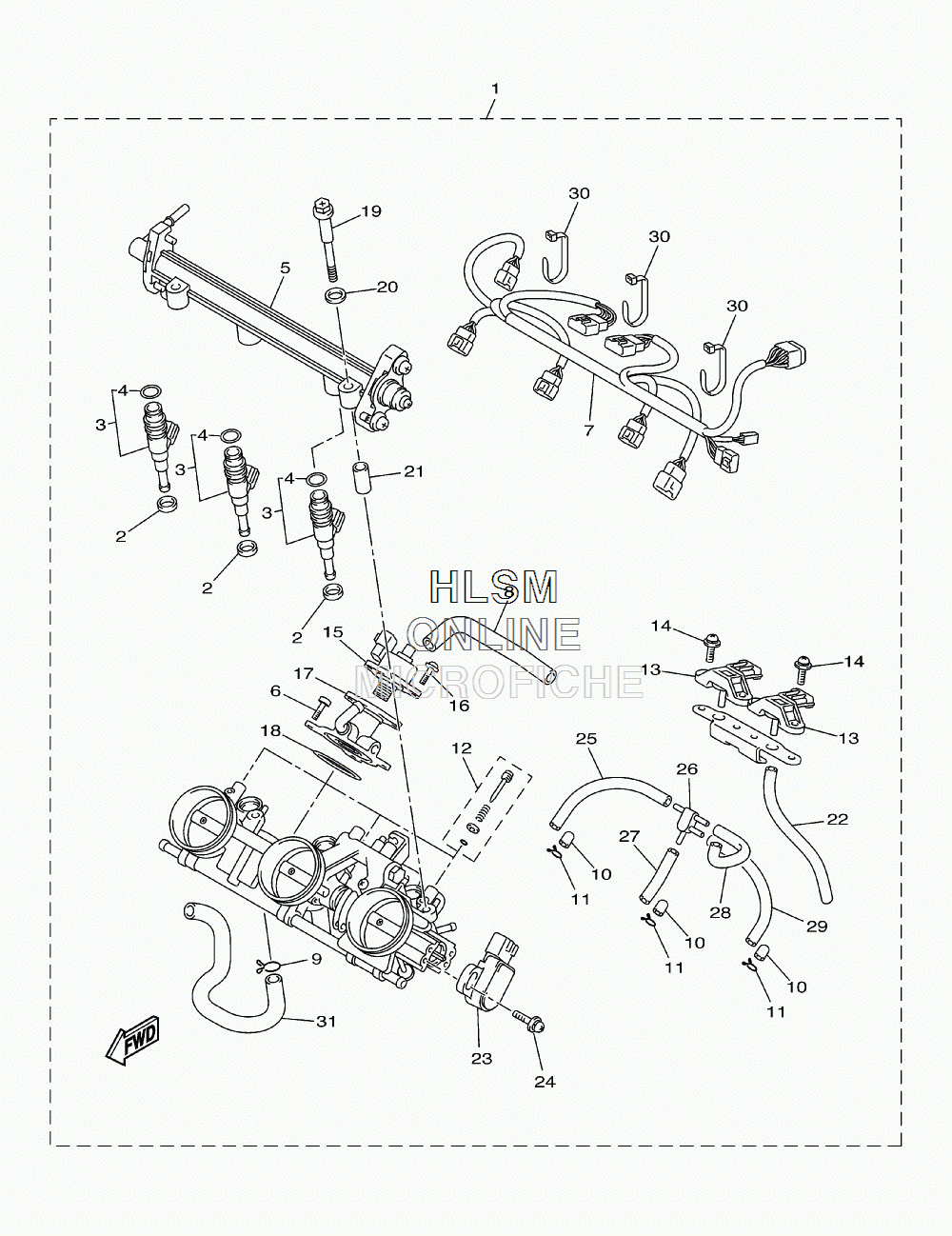

THROTTLE BODY ASSY для Yamaha FX NYTRO RTX - 2008 года выпуска
-
№АртикулНазвание
-
18GL-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
38GC-13761-00-00 ...INJECTOR...INJECTOR
-
48GC-13769-00-00 ...O-RING...O-RING
-
58GL-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
68GL-14565-00-00 ...SCREW...SCREW
-
78GL-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
88GL-13895-00-00 ...HOSE, AIR...HOSE, AIR
-
990467-150A2-00 ...CLIP...CLIP
-
10895-14169-00-00 ...CAP...CAP
-
118A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
128GL-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
132C0-82380-10-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
148GL-14592-00-00 ...SCREW...SCREW
-
158GL-13713-00-00 ...MOTOR ASSY...MOTOR ASSY
-
168GL-14216-00-00 ...SCREW...SCREW
-
178GL-14960-00-00 ...BODY ASSY...BODY ASSY
-
188GL-13769-00-00 ...O-RING...O-RING
-
198GL-13573-00-00 ...BOLT 1...BOLT 1
-
208GL-13571-00-00 ...WASHER...WASHER
-
218GL-14534-00-00 ...COLLAR...COLLAR
-
225PW-14349-00-00 ...PIPE...PIPE
-
238GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
248CC-14216-10-00 ...SCREW...SCREW
-
255JW-14987-00-00 ...HOSE...HOSE
-
265PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
278FP-14349-30-00 ...PIPE...PIPE
-
288GL-13892-00-00 ...HOSE, AIR 2...HOSE, AIR 2
-
298GL-13893-00-00 ...HOSE, AIR 3...HOSE, AIR 3
-
304KM-14137-00-00 ...CLIP, PIPE...CLIP, PIPE
-
318GL-13545-00-00 ...HOSE 1...HOSE 1
