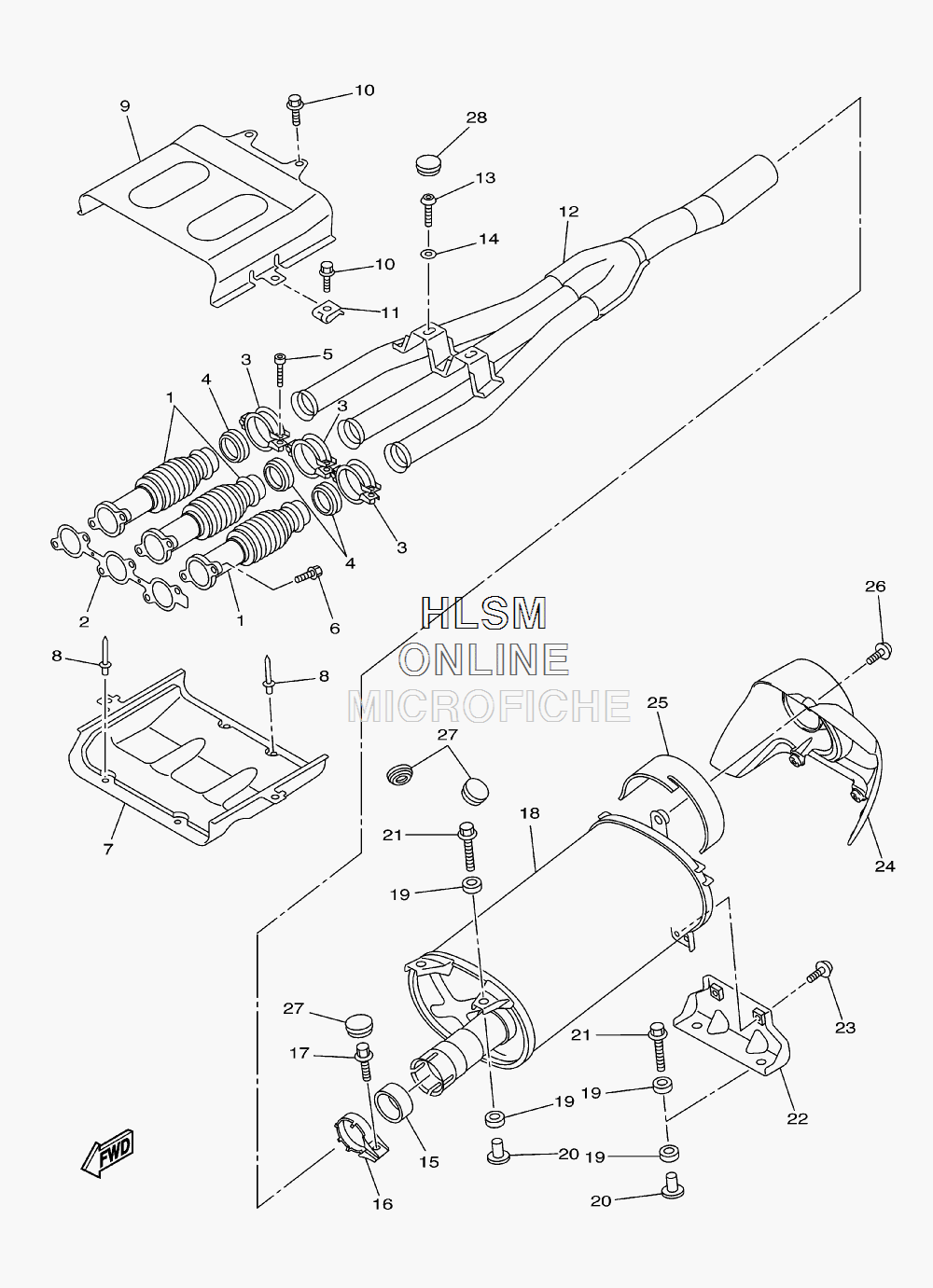

EXHAUST SYSTEM для Yamaha FX NYTRO - 2008 года выпуска
-
№АртикулНазвание
-
18GL-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
28GL-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
38FA-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
48FA-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
591312-06030-00 BOLTBOLT
-
695022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
78GL-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
890267-47195-00 RIVET, BLINDRIVET, BLIND
-
98GL-14637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
1095802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-060A0-00 NUT, SPRINGNUT, SPRING
-
128GL-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
1392012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1492990-08200-00 WASHER, PLAINWASHER, PLAIN
-
158GL-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
168GL-14789-00-00 BAND, SILENCERBAND, SILENCER
-
1795812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
188GL-14750-00-00 SILENCER ASSYSILENCER ASSY
-
198GL-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2090387-08071-00 COLLARCOLLAR
-
2190119-08112-00 BOLT WITH WASHERBOLT WITH WASHER
-
228GL-14744-00-00 BRACKETBRACKET
-
2392012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
248GL-14799-00-00 CAPCAP
-
258GL-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
2690159-06036-00 SCREW WITH WASHERSCREW WITH WASHER
-
2790338-20004-00 PLUGPLUG
-
2890338-20007-00 PLUGPLUG
