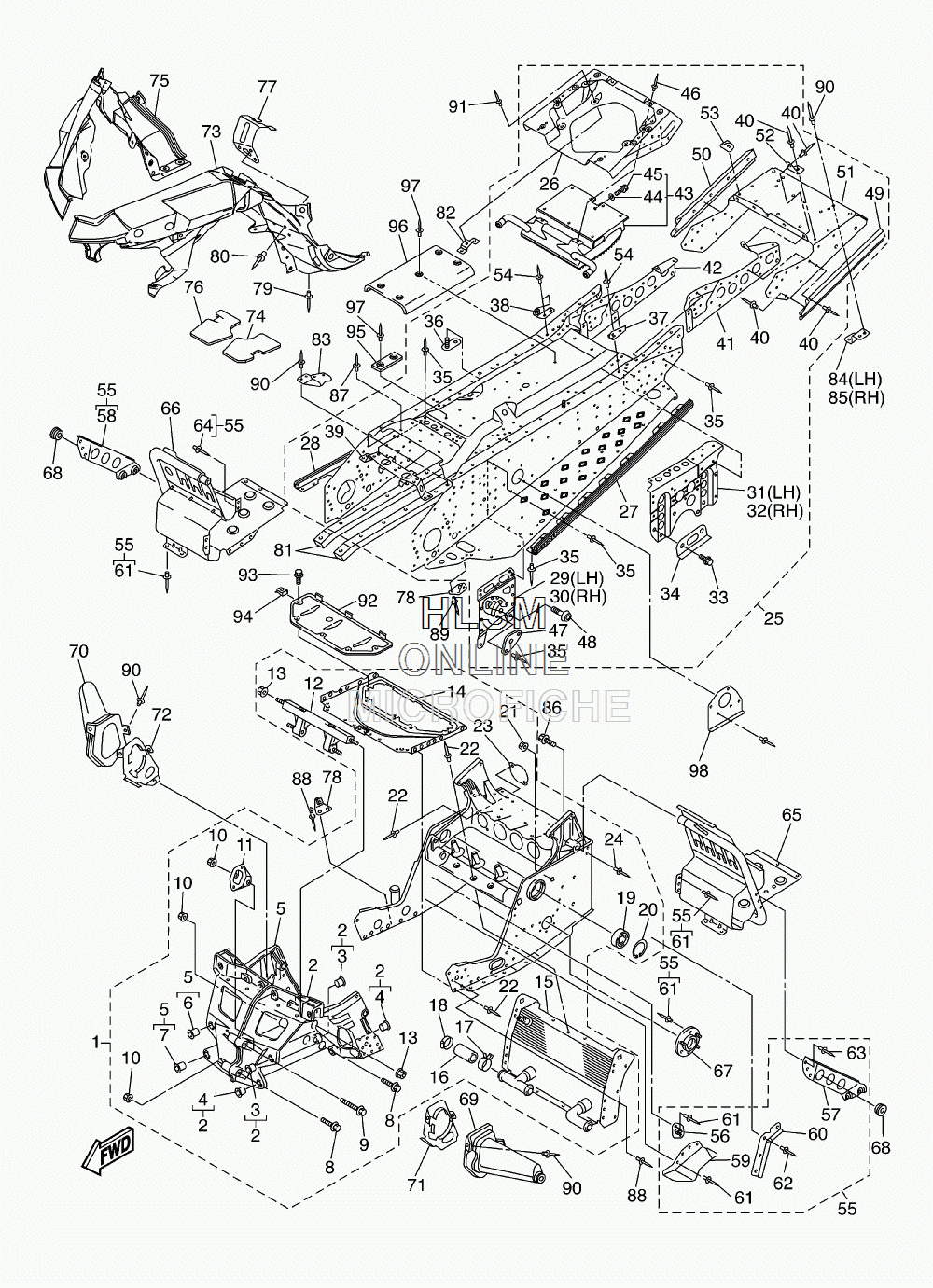

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VECTOR LTX GT - 2008 года выпуска
-
№АртикулНазвание
-
18GM-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FA-2193A-00-00 ...PROTECTOR...PROTECTOR
-
158FA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
168FA-12551-00-00 ...HOSE 7...HOSE 7
-
1790467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1890450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1993306-20650-00 ...BEARING...BEARING
-
2099009-62500-00 ...CIRCLIP...CIRCLIP
-
2195607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
238ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2490267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
258FL-21950-10-00 REAR FRAME COMP.REAR FRAME COMP.
-
258GX-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
278FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
288FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
298FU-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
308FU-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
318FT-21944-00-00 ...BRACKET, RR.TRACK SUSPENSION...BRACKET, RR.TRACK SUSPENSION
-
328FT-21954-00-00 ...BRACKET, RR.TRACK SUSPENSION...BRACKET, RR.TRACK SUSPENSION
-
3395817-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3395814-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
348FU-21988-01-00 ...PATCH 8...PATCH 8
-
348FP-21988-00-00 ...PATCH 8...PATCH 8
-
3590267-47186-00 ...RIVET, BLIND (QTY:114)...RIVET, BLIND (QTY:114)
-
3590267-47195-00 ...RIVET, BLIND (QTY:114)...RIVET, BLIND (QTY:114)
-
368CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
378FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
388FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
398ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
4090267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
418FT-21963-00-00 ...PATCH 3...PATCH 3
-
428FT-21964-00-00 ...PATCH 4...PATCH 4
-
438FT-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
4490210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
4595812-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4690267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
478FU-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
478FP-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
4892017-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
4892014-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
498FG-2111J-00-00 ...MEMBER, SIDE 1...MEMBER, SIDE 1
-
508FG-2111K-00-00 ...MEMBER, SIDE 2...MEMBER, SIDE 2
-
518FT-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
528FG-21988-00-00 ...PATCH 8...PATCH 8
-
538FG-21989-00-00 ...PATCH 9...PATCH 9
-
5490267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
558FP-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
568CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
578FP-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
588FP-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
598FP-2198G-00-00 ...COVER 2...COVER 2
-
608FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
6190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
6290267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
6390267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
6490267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
658FP-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
668GM-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
678EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6890480-13567-00 GROMMETGROMMET
-
698FU-2198F-00-00 COVER 1COVER 1
-
708FU-2198J-00-00 COVER 3COVER 3
-
718FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
728FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
738GM-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
748GM-77374-00-00 DAMPER 2DAMPER 2
-
758FP-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
768FP-77375-00-00 DAMPER 3DAMPER 3
-
778FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
788FA-2196F-00-00 BRACKET 3BRACKET 3
-
7990267-48018-00 RIVET, BLINDRIVET, BLIND
-
8090267-47200-00 RIVET, BLINDRIVET, BLIND
-
818FT-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
828FT-2197N-00-00 BRACKET 7BRACKET 7
-
838FU-2197N-00-00 BRACKET 7BRACKET 7
-
848FT-2196F-00-00 BRACKET 3BRACKET 3
-
858FT-2196G-00-00 BRACKET 4BRACKET 4
-
8695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8790267-48169-00 RIVET, BLINDRIVET, BLIND
-
8890267-48083-00 RIVET, BLINDRIVET, BLIND
-
8990267-48095-00 RIVET, BLINDRIVET, BLIND
-
9090267-47195-00 RIVET, BLINDRIVET, BLIND
-
9190267-48177-00 RIVET, BLINDRIVET, BLIND
-
928FA-2197E-01-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
9390109-065F3-00 BOLTBOLT
-
9490183-06053-00 NUT, SPRINGNUT, SPRING
-
958FA-21998-00-00 SPACERSPACER
-
968FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9790267-48059-00 RIVET, BLINDRIVET, BLIND
-
988FR-21962-00-00 PATCH 2PATCH 2
-
988FP-21962-00-00 PATCH 2PATCH 2
